A Beginner’s Guide to Understanding Infrared Thermal Imaging Technology

Infrared thermal imaging technology has revolutionized how we see and interpret the world. By converting heat into visible images, this technology enables users to identify temperature variations across surfaces. Its applications span various fields, from home inspections to advanced scientific research. This guide aims to explain the basics of infrared thermal imaging for those just starting out.

What Is Infrared Thermal Imaging?

Infrared thermal imaging involves capturing infrared radiation, which is a type of electromagnetic wave emitted by all objects based on their temperature. Unlike visible light, infrared radiation cannot be seen with the naked eye. Thermal cameras detect this radiation and convert it into a visual format, called a thermogram, allowing users to analyze temperature distributions.

The technology relies on infrared sensors, often referred to as thermal camera cores. These sensors detect subtle temperature differences and create high-resolution thermal images, making it easier to spot anomalies such as heat leaks or overheating components.

How Does Infrared Thermal Imaging Work?

The process starts with an infrared sensor capturing thermal radiation emitted by an object. This radiation is processed to create a detailed image where each color represents a specific temperature range. Cooler areas often appear blue or green, while warmer areas are displayed in red, orange, or yellow.

Key components of a thermal camera include:

1. Infrared Sensor: Detects thermal radiation.
2. Lens: Focuses infrared energy onto the sensor.
3. Processor: Converts sensor data into visual images.
4. Display: Shows the thermogram in real time.

Applications of Infrared Thermal Imaging

Infrared thermal imaging has diverse applications. Below are some of the most common uses:

• Home Inspections: Thermal cameras are invaluable for detecting insulation gaps, water leaks, and electrical faults in residential settings.
• Medical Diagnosis: In healthcare, infrared imaging can help identify abnormal temperature patterns associated with inflammation or poor circulation.

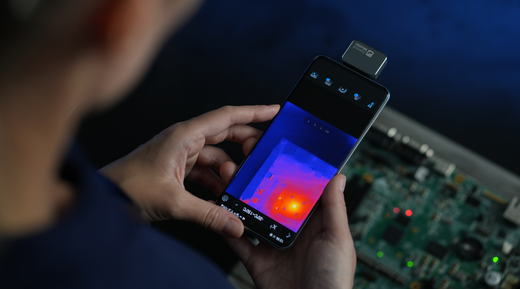

• Industrial Maintenance: Thermal imaging is used to monitor machinery, identify overheating components, and prevent potential failures.
• Environmental Monitoring: This technology plays a role in wildlife conservation and tracking energy efficiency in buildings.

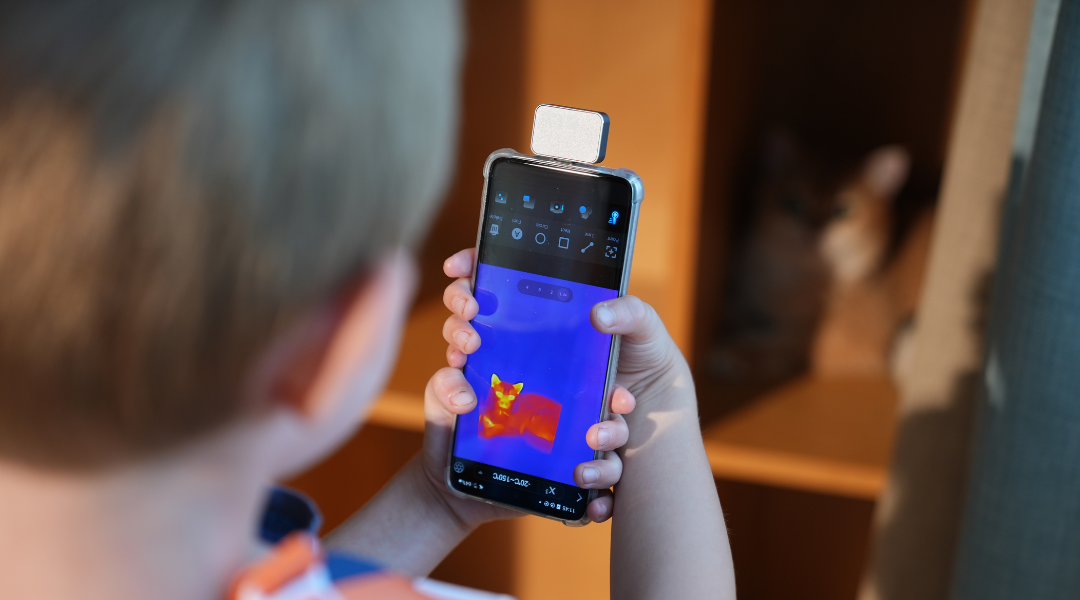

Why Choose Thermal Cameras for Smartphones?

Thermal cameras designed for smartphones are an affordable and practical choice. These compact devices make thermal imaging accessible to both casual users and professionals. They are easy to carry and ideal for everyday scenarios, such as finding insulation issues at home, and more specialized applications, like wildlife observation or equipment maintenance.

Benefits of Infrared Thermal Imaging

1. Non-Contact Measurement: Thermal imaging measures temperature from a safe distance, which is particularly useful in hazardous environments.
2. Accuracy: High-definition thermal cameras can detect even minor temperature variations, ensuring precise analysis.
3. Versatility: Whether for professional use or personal exploration, thermal imaging adapts to various needs.
4. Time-Saving: The ability to visualize temperature differences quickly can streamline inspections and diagnostics.

Tips for Beginners Using Thermal Cameras

If you’re new to infrared thermal imaging, keep the following tips in mind:

• Understand Temperature Ranges: Different thermal cameras have varying temperature detection ranges. Choose one that suits your needs.
• Avoid Reflective Surfaces: Materials like metal can distort thermal readings due to reflected heat.
• Calibrate Regularly: Ensure accurate readings by calibrating your device as needed.
• Explore Settings: Many cameras allow users to adjust color palettes and sensitivity levels for better visualization.

Future of Infrared Thermal Imaging

As technology advances, infrared thermal imaging is becoming more accessible and efficient. Innovations like smartphone-compatible thermal cameras have broadened its reach. In the future, we can expect even more compact and powerful devices, expanding its applications in industries such as agriculture, transportation, and renewable energy.
