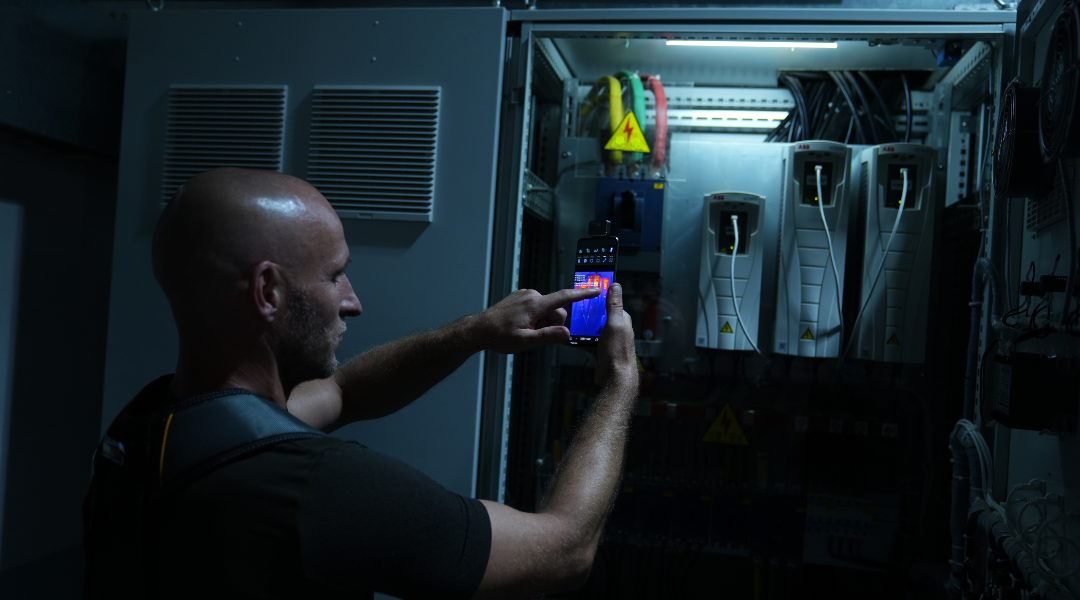

Discover how thermal cameras can improve electrical system maintenance by detecting overheating, poor connections, and other issues.

Electrical system maintenance plays a critical role in ensuring safety, reliability, and efficiency. Over time, electrical components can experience wear, overheating, or even malfunction, often leading to costly repairs and downtime. Identifying issues early is key to minimizing risks and enhancing the lifespan of electrical systems. This is where thermal cameras come into play. Thermal imaging technology has become an essential tool in electrical system inspections, offering a non-invasive and efficient method to detect hidden problems before they escalate.

The Role of Thermal Cameras in Electrical Maintenance

Thermal cameras capture infrared radiation emitted from objects and convert it into thermal images. These images display temperature variations across surfaces, providing insights into potential problem areas. For electrical systems, temperature inconsistencies often indicate issues such as overheating, poor connections, or malfunctioning components.

By regularly using thermal cameras for electrical inspections, technicians can identify problems that are not visible to the naked eye. This proactive approach not only helps prevent failures but also allows for targeted repairs, reducing unnecessary downtime and repair costs.

Advantages of Thermal Cameras for Electrical Inspections

1. Non-Invasive Inspections
   Traditional methods of electrical inspection often involve physical contact or disassembly of components, which can be time-consuming and risky. Thermal imaging, on the other hand, is completely non-invasive. Technicians can inspect live circuits and components without interrupting the system’s operation. This not only improves safety but also saves time by eliminating the need for system shutdowns.
2. Early Detection of Hotspots
   One of the most common problems in electrical systems is overheating, which can lead to fires or severe damage if left unchecked. Thermal cameras help technicians detect heat hotspots in electrical circuits, switches, and components. These hotspots often indicate poor connections, overloads, or failing parts that are at risk of overheating. Early detection allows for immediate intervention, preventing catastrophic failures.
3. Increased Accuracy and Reliability
   Thermal cameras provide highly accurate temperature readings, making it easier to pinpoint areas of concern. The visual representation of temperature differences is often more reliable than traditional methods, which may rely on subjective assessments or guesswork. By providing clear, real-time thermal images, technicians can make more informed decisions about when and where maintenance is needed.
4. Cost Efficiency
   While the initial investment in a thermal camera might seem high, the cost-saving benefits far outweigh it in the long run. By detecting issues early, businesses can avoid expensive repairs and equipment replacement. Furthermore, regular thermal inspections can extend the lifespan of electrical systems, resulting in better overall efficiency and reduced maintenance costs.

The Versatility of Smartphone Thermal Cameras

While many industrial-grade thermal cameras are used for electrical inspections, more affordable and compact options are now available. Thermal cameras for smartphones, such as the Thermal Master P2, offer an affordable alternative for both everyday and professional use. These devices leverage the power of mobile technology to provide high-quality thermal images at a fraction of the cost of traditional thermal cameras.

A thermal camera for smartphone is not just a handy tool for home or field inspections but also a powerful device for professional use in electrical system maintenance. The portability and affordability of smartphone-based thermal cameras make them an attractive option for small businesses and individual technicians who need an efficient, cost-effective solution for regular inspections.

How to Use Thermal Cameras in Electrical Maintenance

1. Inspect Electrical Panels and Circuit Breakers
   Electrical panels and circuit breakers are critical components in any electrical system. Over time, connections within the panel can loosen, causing heat to build up, which can lead to failure or fire hazards. By scanning these panels with a thermal camera, technicians can quickly identify hot spots and weak connections that need attention.
2. Check Wiring and Cables
   Poorly connected or damaged wires often cause electrical systems to overheat. Using a thermal camera to monitor the temperature of wires and cables can help detect potential problems such as loose connections or worn insulation. Early identification can prevent fires or short circuits, saving significant repair costs.
3. Monitor Motors and Switchgear
   Motors, transformers, and other electrical equipment generate heat as they operate. While some temperature increase is normal, excessive heat can indicate mechanical failure, insufficient lubrication, or overloading. Regular thermal scanning of these components helps detect irregularities and maintain optimal operation.
4. Electrical Connections and Terminals
   Loose or corroded electrical connections are often a source of excessive heat. Thermal imaging can identify these problem areas, allowing for early corrective action before the connection fails completely.

Thermal cameras have revolutionized electrical system maintenance, offering technicians a reliable, efficient, and non-invasive method for identifying potential issues before they cause major damage. Whether used for industrial applications or smaller-scale inspections, thermal cameras help improve safety, reduce costs, and enhance the reliability of electrical systems. The rise of affordable thermal cameras for smartphones, such as the Thermal Master P2, provides even greater access to this invaluable technology, making it an essential tool for any technician in the field.
