Thor, Expert Thermal Imager
Description
Description
The Thor 001 is equipped with an optional macro lens, featuring a NETD of 35 mK and an accuracy of ±1.5°C, designed for detailed inspection of PCBs, while the Thor 002 does not include this lens and has a NETD of 40 mK and an accuracy of ±2°C.
- HVAC, electrical & industrial diagnostics for heat loss and fault detection.
- 256×192 IR sensor with 512×384 enhanced resolution for clearer detail.
- –20℃ to 550℃ (–4℉ to 1022℉), with flexible measurement modes.
- High sensitivity (NETD <35/40 mK), 25Hz smooth imaging, up to 10h runtime.
- Supports emissivity and distance adjustment, isotherms, temperature alarms, and calibration.
Free Shipping, tax included
2 Years Warranty
30-Day Money back
Lifetime technical support
Spec
Spec
Model: THOR001 | THOR002
Temperature Range:
THOR001: ±1.5℃ or ±1.5% of the reading
THOR002: ±2℃ or ±2% of the reading
IR Resolution:256×192
Super IR Resolution: 512×384
Macro Lens: THOR001: ✔ THOR002: ×
Lens Focal Length: 4.3mm
Digital Zoom: 2/4×
Display: 3.5 inch IPS（640x480）
Point Measurement:
THOR001: Center spot/Max/Min/6 Custom Spots/Temperature difference
THOR002: Center spot/Max/Min/3
Custom Spots/Temperature difference
NETD/Thermal Sensitivity:
THOR001: ＜35mk
THOR002: ＜40mk
Image Mode: Fusion, IR（default), PIP, Visual
Digital Camera: 2MP
Wireless: ✔
PC-based Analysis Software: ✔
Supports 13 languages (English by default)
Laser Indicator: ✔
Microphone: ✔
Flash Shield: ✔
Lens cap for protection: ✔
Alloy Metal Base: ✔
Razor X thermal technology: ✔
Fresh rate: 25Hz
FOV: 40°×30°
IFOV: 2.79mrad
Pixel Pitch: 12μm
Focus Mode: Fixed focus
Min Focus Distance:
THOR001: 8cm
THOR002: 30cm
Fast Charge: 18W
Battery: 5000mAh rechargeable lithium battery
Charging Time: 4h
Operating Time: 8h
Shipping & Warranty
Shipping & Warranty
We offer reliable worldwide shipping through our regional warehouse network.
Regional Warehouses
Orders ship from the nearest available warehouse (US, UK, EU, or CN) depending on stock availability.
Fast Delivery
- UK: 3–7 business days
- US / EU: 7–10 business days
- Other Regions: 10–20 business days
Processing Time: 1–3 business days.
Tracking details will be emailed once dispatched.
Transparent Pricing
All listed prices include applicable import duties and taxes for supported regions, with no hidden fees upon delivery (local regulations may apply in special cases).
2-Year Limited Warranty
Return requests are accepted within 30 days of delivery, provided the product is returned in its original condition and packaging.
30-Day Risk-Free Returns
Not satisfied? You may request a return within 30 days of delivery if the item is in its original condition. Our team is here to help.
Thor, From Expert, beyond Expertise
Overview
SEE WHAT THE PROS SAY
Mads Tech
82.2K subscribers
Thermal Master Thor Thermal Camera - Handheld , PC Or Wifi From $299
BeatTheBush DIY
24.2K subscribers
Thermal Master Thor 001 vs. FLIR E8 Pro
JazzTech Electronics
16.3K subscribers
Thermal Master Thor 001 Pro Level Thermal Camera With Macro Lens!
Country Living Experience: A Homesteading Journey
436K subscribers
All The Uses For A Thermal Camera! WORTH IT? | Thermal Master Thor 002
Project Pine Hills
25.4K subscribers
Thermal Master Thor 001 Setup & First Look | Thermal Imaging Infrared Camera
5 Vision Modes
5 advanced modes (Pro-Mix, IR, Visible, PIP, IR-Fuse™) deliver industrial diagnostic performance.
PIP
Picture in Picture
Pro-Mix
The infrared image with enhanced object edge details.
Visual Light
2MP, clear structural reference for accurate inspection context.
Infrared(default)
Full thermal view.
IR-Fuse™
Dual-light fusion, blending visible and infrared imaging for clearer detection.
512x384 Ultra Clear
Thor 001 & Thor 002 feature advanced X³IR technology, enhancing the 256×192 thermal resolution to 512×384 Super IR resolution for twice the image clarity.
True Comparison
Thor VS Others
3.5'' IPS Hard Screen
Thor features a 3.5-inch 640×480 IPS display.
TruePix ±2℃，-20°~550℃
TruePix delivers precise temperature measurement.
Thor support a wide temperature range from -4°F to 1022°F (-20°C to 550°C), with accuracy up to ±2.7°F (±1.5°C) on Thor001 and ±3.6°F (±2°C) on Thor002.
Macro Lens
Thor 001 with detachable macro lens (8 cm) inspects 0.25 mm components, revealing PCB faults, early HVAC issues, and heat patterns on industrial gear.
Other Features
Anti-glare Burn Shield
- The Thor Series features a pro-grade Anti-Glare Burn Shield, typically found only on $1,000+ thermal imagers.
- Blocks intense light and high heat to protect the sensor, while fully shielding the lens from scratches and impact.
IFOV: 1.4 mrad
Smaller than others
Wireless to Phone + PC Thermal Reporting
- Wireless app connection for real-time thermal viewing on iPhone, iPad, and Android.
- PC connectivity for professional thermal analysis and report export.
Voicetag™ & QR-Filing™
- Voicetag™: Noise-Reducing Mic adds voice notes to videos
- QR-Filing™: QR Code Scanning, Automatically Builds Target Archives
Power That Lasts
5000mAh high-capacity battery with 18W fast charging delivers up to 10.5 hours of runtime—built for all-day thermal inspections.
Built Tough for the Field
Reinforced alloy + ergonomic ABS body with 2m drop protection and IP54 durability for harsh environments.
What's in the Box?
App/ Data Sheet/ Manual
Product Specification
THOR001 | THOR002
THOR001: ±1.5℃ or ±1.5% of the reading
THOR002: ±2℃ or ±2% of the reading
256×192
512×384
THOR001: ✔
THOR002: ×
4.3mm
2/4×
3.5 inch IPS（640x480）
THOR001: Center spot/Max/Min/6 Custom
Spots/Temperature difference
THOR002: Center spot/Max/Min/3
Custom Spots/Temperature difference
THOR001: ＜35mk
THOR002: ＜40mk
Fusion, IR（default), PIP, Visual
2MP
✔
Supports 13 languages (English by default)
Athermalized Prime Lens
✔
✔
Lens cap for protection
✔
✔
✔
25Hz
40°×30°
2.79mrad
12μm
Fixed focus
THOR001: 8cm
THOR002: 30cm
60Hz
18W
5000mAh
4h
8h
Over 50,000+ Users Reviews
Incredible Value for a Hobbyist
I bought this for DIY home energy audits and checking for heat leaks. For the price, the clarity is astounding. The menu is intuitive, and it connected to my phone in seconds. I've already found several drafts around my windows I wouldn't have noticed otherwise. A fantastic tool for any homeowner.
User-Friendly and Powerful
I was worried a thermal camera would be too complex, but the Thor001 is brilliantly simple. The picture-in-picture mode with the visible light camera helps immensely for context. The battery life is solid for a full day of use. It feels robust and well-made. Very impressed.
Great for Wildlife and Outdoor Adventures
I primarily use this for night hiking and wildlife observation. The thermal sensitivity is excellent for spotting animals in complete darkness from a safe distance. It's lightweight, easy to carry, and the image is super clear. The only minor downside is the low-light visible camera is just okay, but the thermal performance is the star, and it shines.
Solid Performance, Fantastic Price Point
I've used Flir and Seek thermal cameras before and was skeptical about this brand. I'm a convert. The performance is nearly on par with units that cost twice as much. The ergonomics are comfortable, and the screen is bright and sharp. If you're looking to get into thermal imaging without breaking the bank, this is the one to get.
More Than Just a "Toy" - A Serious Tool
This isn't a low-res thermal dongle; it's a capable, serious thermal imager. The ability to adjust parameters like emissivity and temperature scale is crucial for accurate readings. I use it for electronics design to check for PCB hotspots, and it provides reliable, quantitative data. Highly capable and surprisingly affordable.
Excellent for HVAC/R Technicians
This camera is perfect for HVAC work. Checking refrigerant levels, ductwork leaks, and insulation gaps is incredibly easy. The temperature measurement is accurate, and the different color palettes are useful for highlighting specific issues to customers. The USB-C charging is a modern touch I appreciate. A powerful addition to my toolkit.
Perfect for Automotive Diagnostics
This camera has paid for itself already. Diagnosing cooling system issues, finding brake drag, and checking HVAC performance is now a 30-second job instead of hours of guesswork. The ability to record video is crucial for catching intermittent problems. A must-have for any advanced home mechanic or professional technician.
A Revelation for Home Inspections

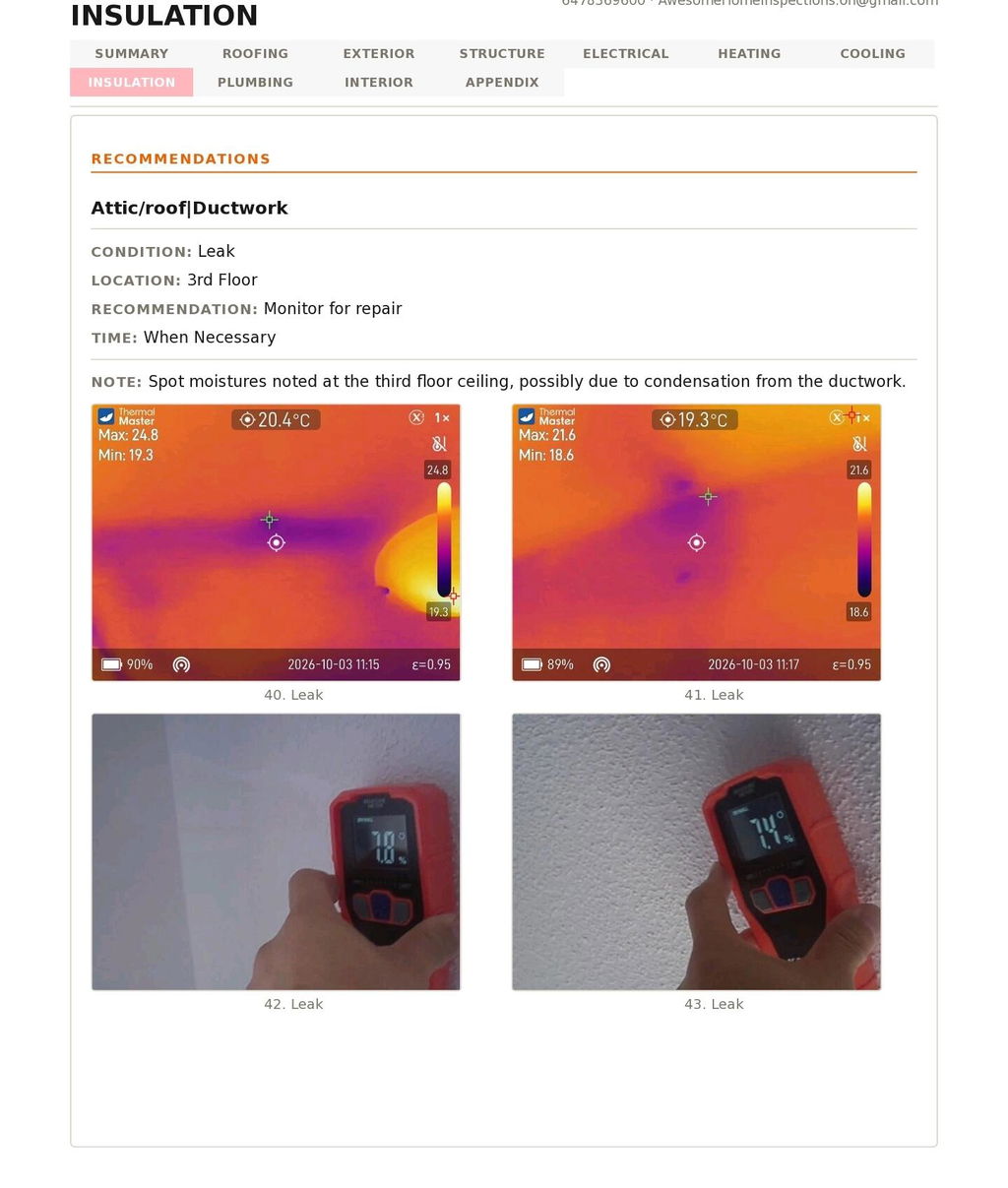

As a home inspector, this camera adds immense value to my reports. Finding moisture intrusion, missing insulation, and electrical hotspots is now effortless. The high-resolution images are clear enough to include directly in my client deliverables, helping them visualize problems instantly. A professional-grade tool that boosts my credibility.
Product Comparison
✅
Detachable Macro Lens
❌
✅
Macro Adjustable Lens
±1.5℃
±2℃
±2℃
＜35mk
＜40mk
＜35mk
8cm
30cm
8mm
256*192
256*192
256*192
512*384
512*384
512*384
Electrical Inspection(PCBs) and Home Inspection
Home Inspection
Electrical Inspection(PCBs) and Home Inspection
Handheld
Handheld
Smartphone Attachment
Thermal Master Thor FAQs
How clear is Thor as a handheld thermal camera?
How clear is Thor as a handheld thermal camera?
Thor is a handheld thermal camera built for clear, readable thermal imaging: it powers on with 512×384 by default, uses a high-performance detector system (Thermal Master) plus RAZOR X image processing, and displays the result on a 3.5" IPS screen for easy viewing during inspections.
What temperature range and accuracy does Thor provide as an infrared thermal camera?
What temperature range and accuracy does Thor provide as an infrared thermal camera?
As an infrared thermal camera, Thor is positioned around defined inspection temperature scenarios: -20° use cases include wall insulation defects and HVAC cold-air infiltration, while 550° use cases include overheating electrical joints and boiler/furnace-wall inspection; temperature readings are supported by IQ+ precise temperature measurement.
Is the Thor a good thermal imaging camera handheld for home inspections?
Is the Thor a good thermal imaging camera handheld for home inspections?
Yes—Thor works as a thermal imaging camera handheld for home inspection tasks with clear, specific targets: window/door sealing failures, missing insulation and thermal bridges, water pipe leakage, and HVAC air leakage; recommended usage conditions include winter or summer, and inspection timing is best aligned to early morning/evening, for both homeowners and professional home inspectors.
Can Thor be used as an infrared thermal camera for electrical inspection?
Can Thor be used as an infrared thermal camera for electrical inspection?
Yes—Thor can be used as an infrared thermal camera for electrical inspection focused on practical fault types: overheated connections on electrical panels, breakers, and outlets; loose wiring, overloaded circuits, and transformer faults; plus hotspot checks in household distribution boxes, for electricians, HVAC technicians, and homeowners.
Can Thor serve as a handheld thermal camera for industrial maintenance checks?
Can Thor serve as a handheld thermal camera for industrial maintenance checks?
Yes—Thor supports industrial inspection workflows as a handheld thermal camera, covering typical maintenance fault scenarios such as motor bearing failures, pipeline insulation failure, and heat exchanger blockage, aimed at maintenance engineers
What materials and packaging come with Thor as a thermal imaging camera handheld?
What materials and packaging come with Thor as a thermal imaging camera handheld?
Thor’s build and packaging are specified in simple, verifiable terms for a thermal imaging camera handheld: it uses a metal body with a metal base, and ships with a hard plastic portable case for carrying and protection.
Does surface material affect thermal scanner readings?
Does surface material affect thermal scanner readings?
Yes. Surface material plays a significant role in thermal scanner readings because different materials emit infrared radiation differently. Reflective or low-emissivity surfaces often return misleading temperature values when viewed with a thermal scanner.
Materials such as polished metal, glass, or shiny coatings may reflect surrounding heat sources rather than their own temperature. To improve accuracy, you should adjust angles and settings when using a thermal scanner, especially when inspecting challenging surfaces.
Can a thermal scanner detect water leaks?
Can a thermal scanner detect water leaks?
Yes. A thermal scanner can detect water leaks by identifying temperature differences caused by moisture hidden behind walls, floors, or ceilings. Water changes the thermal behavior of materials, making affected areas stand out in thermal images.
Because wet surfaces heat and cool more slowly than dry ones, a thermal scanner helps you locate leak paths and moisture buildup even when there are no visible signs. Using a thermal scanner reduces unnecessary demolition and speeds up leak detection.
Can an IR thermal camera record images and videos?
Can an IR thermal camera record images and videos?
Yes. Most modern IR thermal camera devices support both still image capture and continuous video recording, allowing you to document thermal conditions during inspections.
With an IR thermal camera, you can store thermal evidence, monitor temperature changes over time, and compare before-and-after results. These recording features make an IR thermal camera useful for maintenance documentation, fault analysis, training, and professional reporting.
Can an IR thermal camera detect insulation problems?
Can an IR thermal camera detect insulation problems?
Yes. Most modern IR thermal camera devices, including models from Thermal Master Thor, support both still image capture and continuous video recording, allowing you to document thermal conditions accurately during inspections. These features make it easier to track temperature changes, compare inspection results over time, and create clear visual records for analysis, maintenance, or reporting purposes.
When insulation is missing, compressed, or damaged, an IR thermal camera highlights cold spots in winter or warm spots in summer. This makes an IR thermal camera especially valuable for energy audits, renovation planning, and diagnosing comfort issues without opening walls or ceilings.
