Experience professional PCB inspection with advanced thermal imaging. Quickly detect hotspots, short circuits, and hidden heat anomalies for faster, more accurate diagnostics.
Why Choose Thermal Master？
Common PCB Inspection Challenges
PCB hotspots and overheating components are often difficult to identify, especially when failures only appear after power is applied.

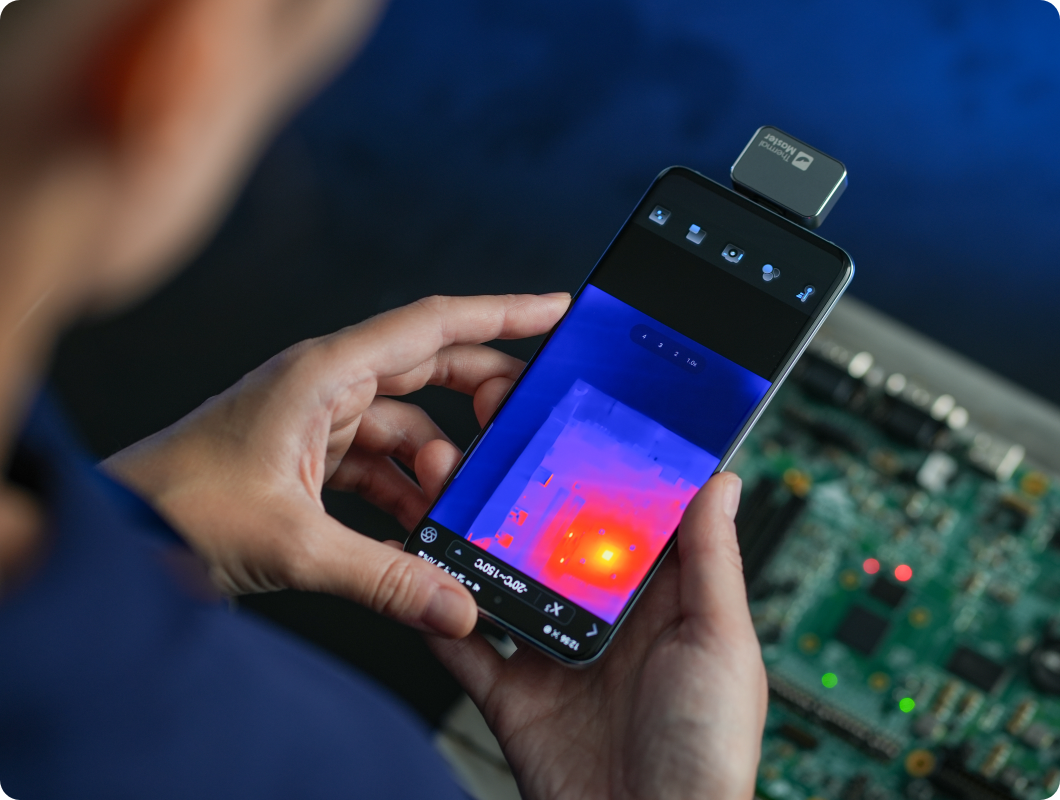

Thermal Imaging for PCB Fault Detection
Reveal PCB hotspots before failure occurs.
• Macro Lens — Inspect small components
• NETD <35mK, ±1.5°C Accuracy — Detect subtle heat differences
• Isotherm Mode — Highlight abnormal heat buildup instantly
PCB Inspection Thermal Cameras
Thermal Master P3 and Thor001 are built for PCB inspection. P3 is ideal for motherboard diagnostics, while Thor001 is designed for detailed electronic testing.

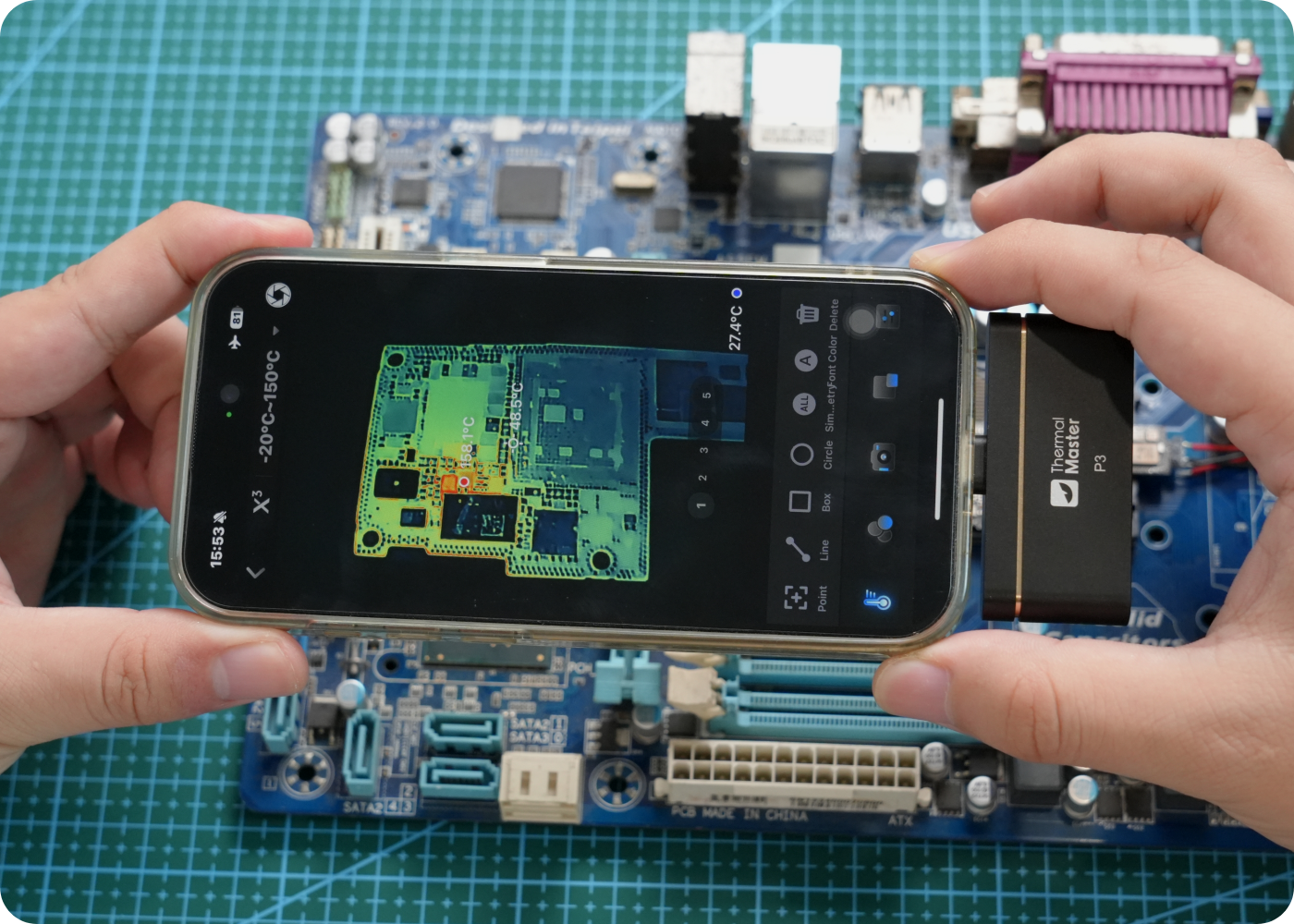

PCB Inspection for P3

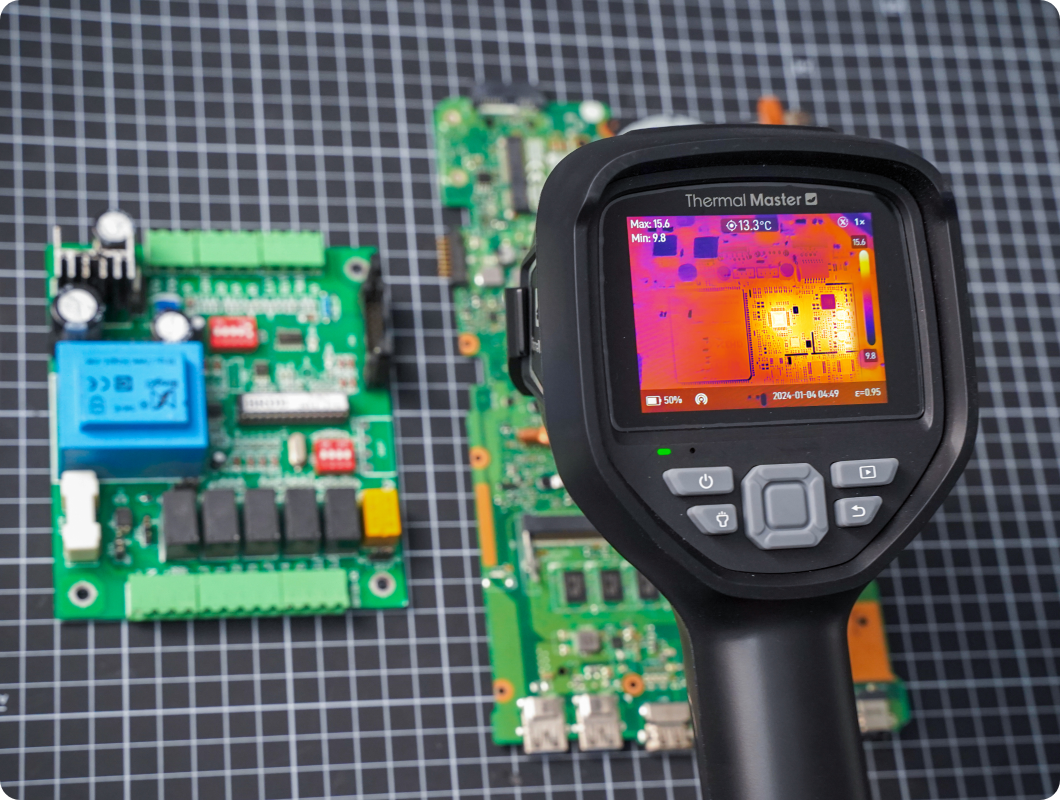

PCB Inspection for Thor001

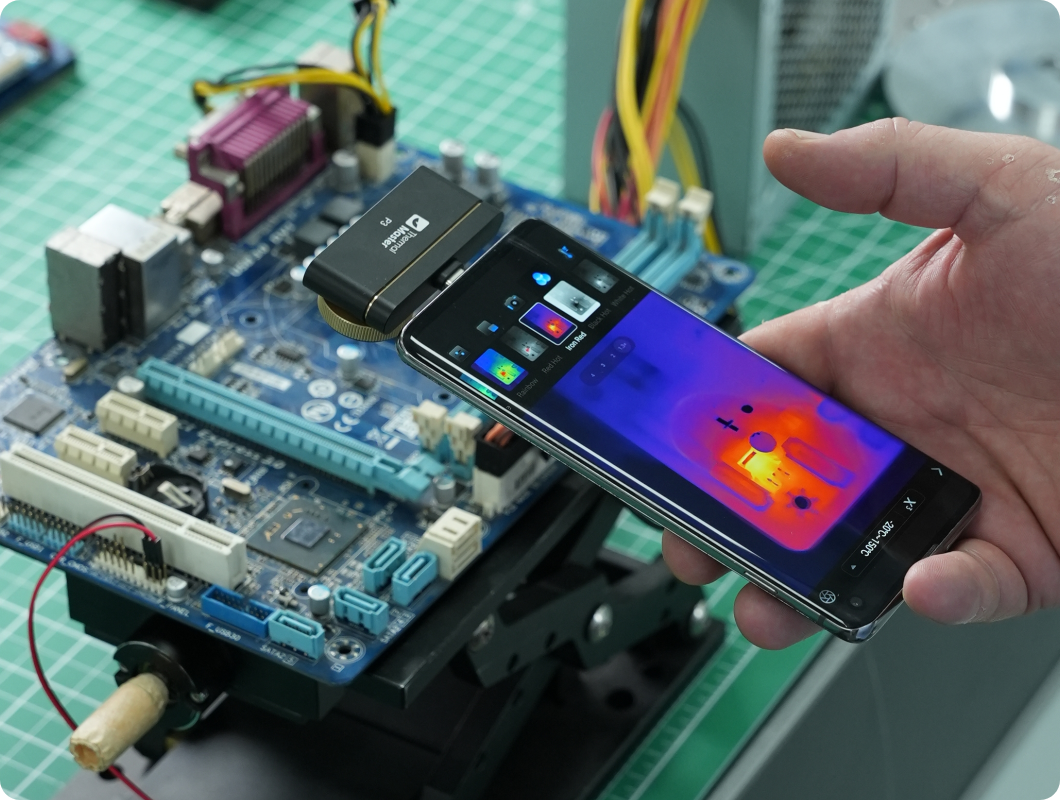

PCB Inspection for P2pro

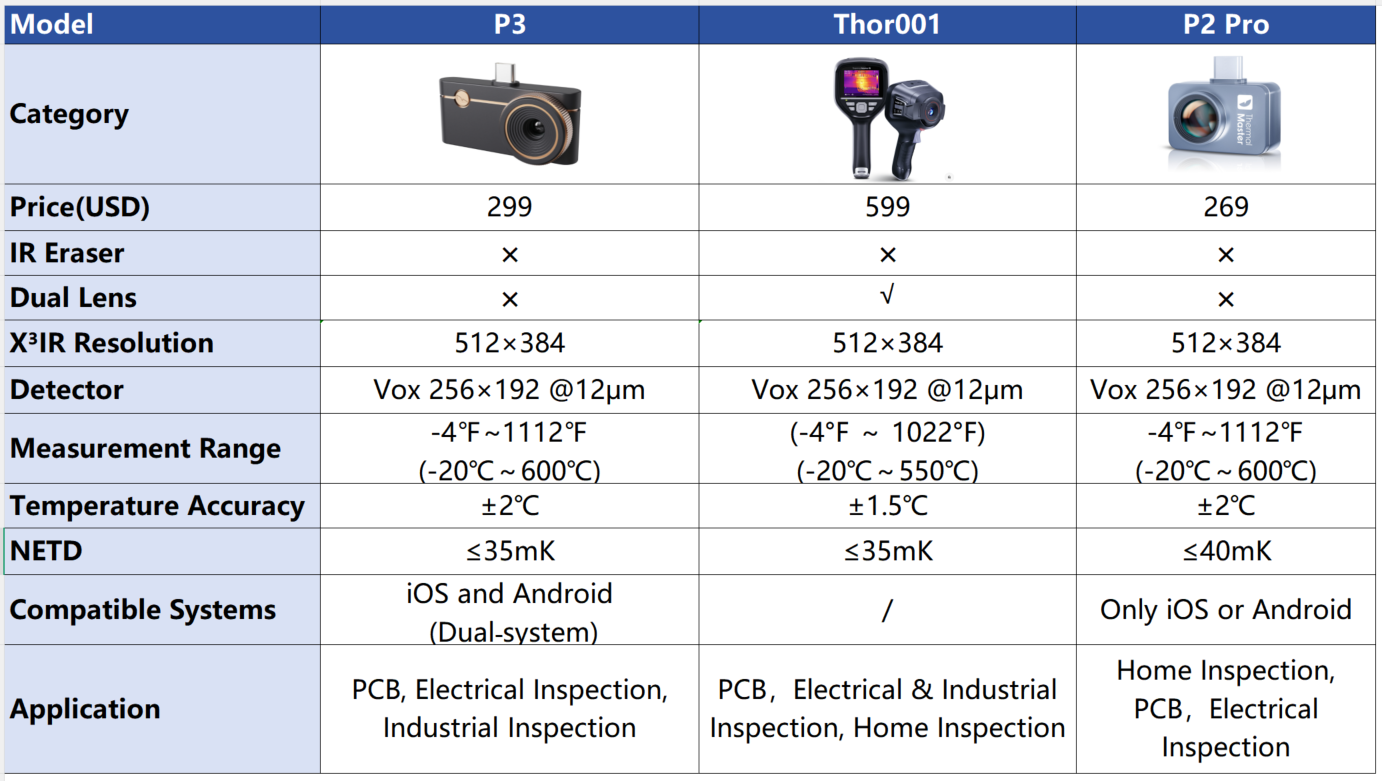

PCB Thermal Camera Comparison
Compare the Thermal Master P3, Thor001, and P2 Pro for PCB inspection, hotspot detection, and electronic diagnostics.
Real User Experiences

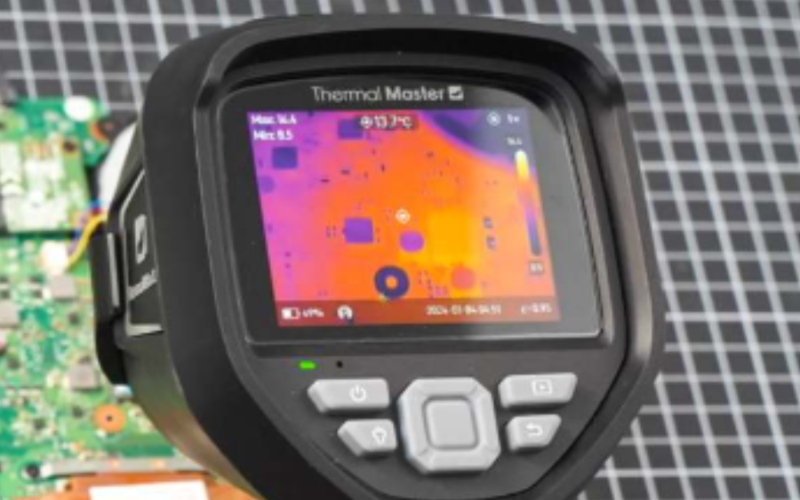

Thor001 Works Great for PCB Diagnostics
Using the Thor001 for board repair has been great so far. Clear thermal details and easy to inspect small components.

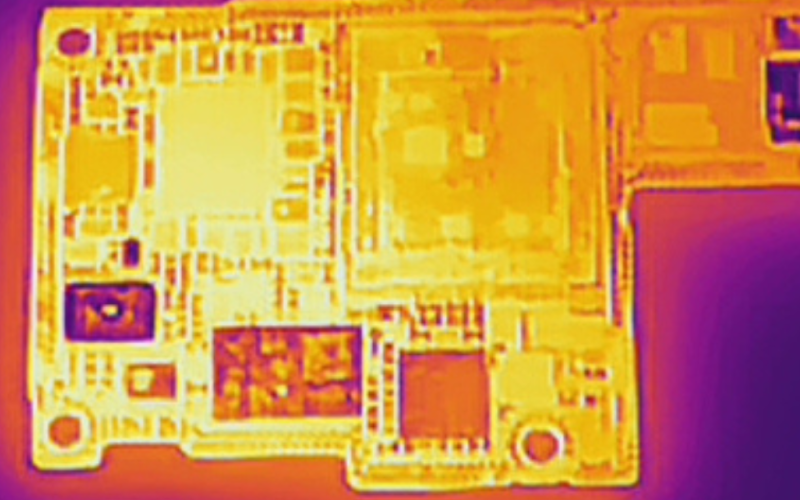

Easy PCB Hot Spot Detection
Small and lightweight, but the P2 Pro delivers excellent close-up thermal inspection performance.

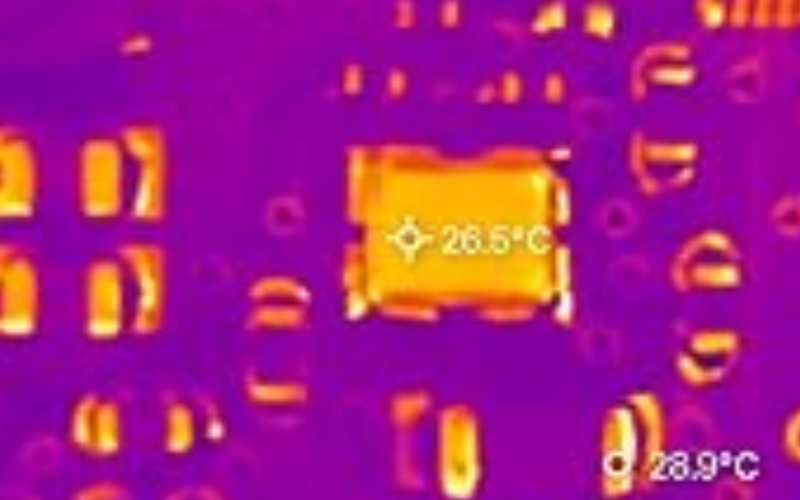

Found It Fast
Spotted the hotspot in seconds. Made PCB troubleshooting much easier.
PCB Thermal Camera FAQs
Can thermal imaging be used for PCB maintenance?
Can thermal imaging be used for PCB maintenance?
Yes. Thermal imaging technology is primarily used in PCB maintenance to detect temperature changes in components and circuits. Through real-time visualization of thermal images, electronic thermal imagers can quickly identify overheated components, leakage current, and hidden faults.This non-invasive method is well-suited for inspecting high-density or complex circuit boards, preventing component failures, improving diagnostic efficiency, and reducing repair time.
How does an electrical thermal imaging camera help in PCB inspection?
How does an electrical thermal imaging camera help in PCB inspection?
Thermal Master electronic thermal imagers convert infrared radiation into visualized thermal images, analyzing the temperature distribution on the PCB in real time. Engineers and technicians can quickly identify abnormal hotspots, trace heat flow, and understand component conditions.Compared to traditional tools, it provides a more intuitive and straightforward troubleshooting method. By reducing reliance on manual probing and guesswork, it speeds up diagnosis, improves accuracy, and helps locate faults more efficiently in both laboratory and field environments.
What PCB faults can be detected with thermal imaging?
What PCB faults can be detected with thermal imaging?
Thermal imaging technology can detect a variety of PCB faults, such as integrated circuit overheating, short circuits, leakage current, poor solder joints, component failure, or excessive stress. These problems all produce abnormal heating patterns that cannot be detected through standard visual inspection or basic electrical testing.Thermal imaging highlights temperature anomalies, helping to quickly locate the problem area and narrow down the source of the fault.
Can thermal imaging detect short circuits on a PCB?
Can thermal imaging detect short circuits on a PCB?
Yes. Short circuits generate excessive current and localized heat, making them easily detectable by thermal imagers. Thermal imagers can display hotspot conditions in real time, allowing technicians to quickly pinpoint the exact location of the fault.This reduces manual tracing or disassembly, saving time and effort. Additionally, the clear visual indications of thermal imaging technology speed up repairs and reduce the risk of further damage to the circuit board.
How do you identify overheating components on a PCB using thermal imaging?
How do you identify overheating components on a PCB using thermal imaging?
To identify overheated components, you can use a thermal imager to scan the PCB and observe temperature changes in different areas of the board. Faulty or overloaded components will show obvious localized high-temperature areas, contrasting sharply with the surrounding temperature.By comparing the thermal distribution map, you can quickly locate the problematic integrated circuit, resistor, or power component. This method enables rapid and accurate fault detection and prevention, and ensures stable circuit operation.
Is thermal imaging safe for PCB maintenance?
Is thermal imaging safe for PCB maintenance?
Yes. Thermal imaging technology is a completely non-contact and non-invasive inspection method, making it safe for PCB maintenance. It allows technicians to analyze circuit boards without touching components, reducing the risk of accidental damage or short circuits. Furthermore, it does not interfere with circuit operation, allowing for real-time detection while the system is running.
Can a portable thermal imaging camera be used for PCB maintenance?
Can a portable thermal imaging camera be used for PCB maintenance?
Yes. Portable thermal imagers are small, easy to operate, and ideal for PCB maintenance, allowing technicians to quickly perform on-site inspections. Modern portable thermal imagers are not only portable but also possess high sensitivity and accurate temperature measurement capabilities, effectively detecting minute thermal anomalies on circuit boards.
What are the key features of a thermal imaging camera for PCB maintenance?
What are the key features of a thermal imaging camera for PCB maintenance?
Key features include: high thermal sensitivity (NETD) for detecting minute temperature differences; precise temperature measurement for reliable diagnostics; and high image resolution for clear visualization of small components.Macro or manual focus capabilities enable close-up inspection, allowing for detailed analysis of tiny hot spots on the PCB. Furthermore, real-time imaging and advanced analysis software improve efficiency, making fault detection faster, more accurate, and easier to interpret.
