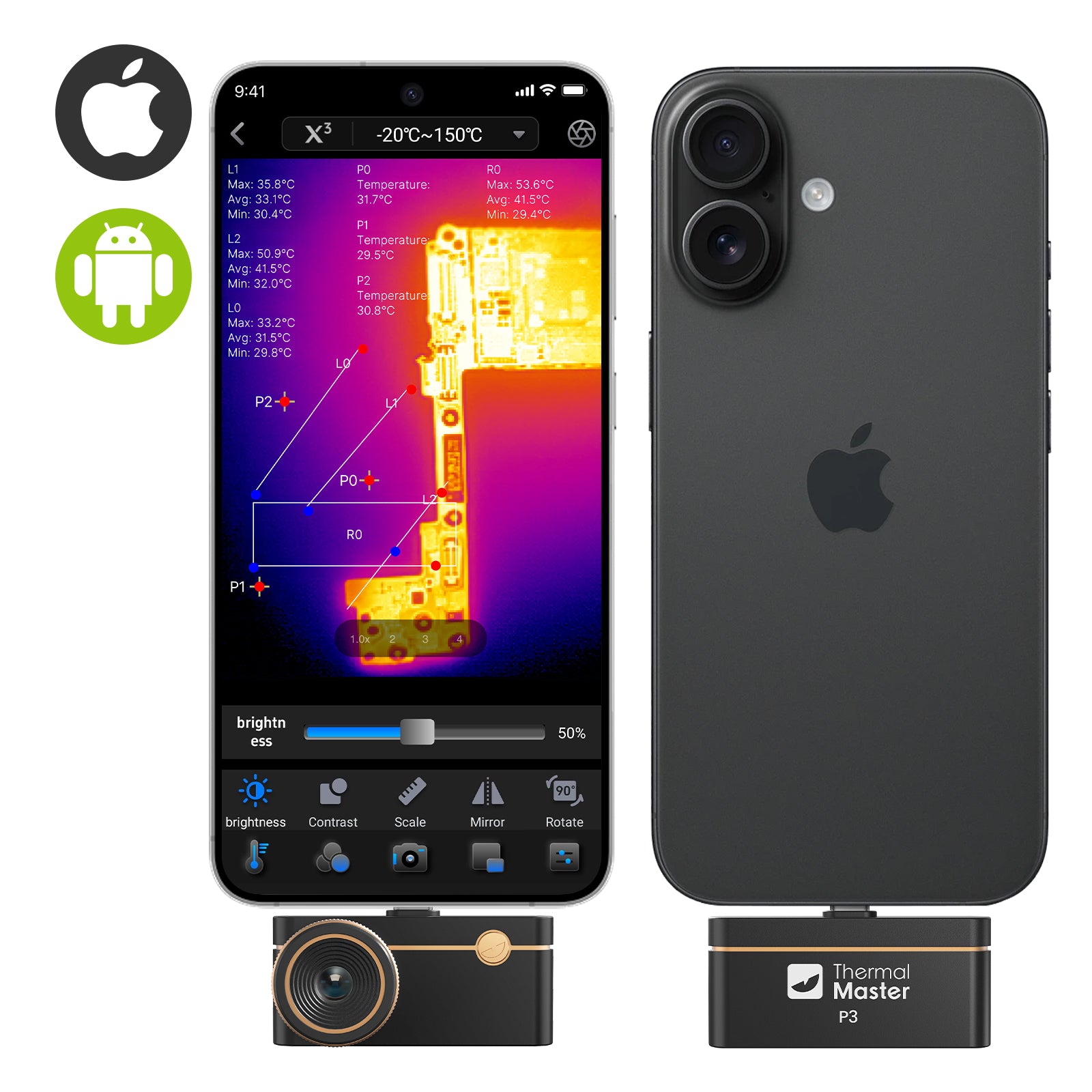

P3 Thermal Camera for iPhone and android
512×384 X³IR Resolution thermal camera for iOS & Android.
-4-1112℉, 15× zoom.
Plug and play to spot home leaks, PCB inspection, HVAC loss, engine hot spots, solar defects, pipe clogs—anywhere thermal vision saves time
Description
Meet Thermal Master P3, the Best Focusing Thermal Camera of 2025.
Its 8 mm manual focusing lens (8mm–80m) makes it perfect for everything from PCB diagnostics to building inspections.
Equipped with a 512×384 IR resolution VOx 256×384 @12μm sensor and RazorX Thermal Technology, it delivers sharper images and smarter detection.
Dual iOS & Android (v15+) compatibility ensures seamless operation, while the compact full-metal body withstands tough environments with professional durability and portability.
Spec
Detector: Vox 256x192 @12μm
X³IR™ Resolution: 512x384
Measurement Range: -4℉~1122℉（-20℃~600℃）
Temp Accuracy: ±2℃ or ±2%
NETD：＜35mk@25℃
Focal Length：4.3mm
Focusing Mode：Macro & Manual Focus Lens
Application Scenarios：Circuit board/Electrical/ Industrial/HVAC/ Home/ Automotive Inspections
Compatibility：Connect to iPhone®, iPad®, Android™ Phones and PCs、iPhone 8-16 Android 7.0 over system
Digital Zoom：15×
Frame Rate：25Hz
Infrared Core：Thermal Master High-Sensitivity Sensor
RazorX™：Ultra-Clear algorithm
Power Consumption：0.32W
FOV：40°x30.2°
Size (LxWxH)：59*27*17.2 mm
Material：Aerospace Alloy Body
Plug：Plug extended by 2mm, compatible with most phone cases
Package Content：P3 thermal camera, portable case, typeC to Lightning adapter, 50cm extension cabel, user manual
Free Shipping, tax included
2 Years Warranty
Lifetime technical support
30-Day Money back
BUILT FOR MOBILITY
Applications
Solar Panel Inspection
Pipe Inspection
Car Inspection
HVAC Inspection
PCB Inspection
Power Inspection
Why People Choose P3 thermal camera?
P3, PCB Master
A Gift for Engineers
✔1mA Leakage detection
✔8mm Macro Focus Lens
✔512x384 X³ IR™ Resolution
✔-20~600℃ ±2℃ Accuracy

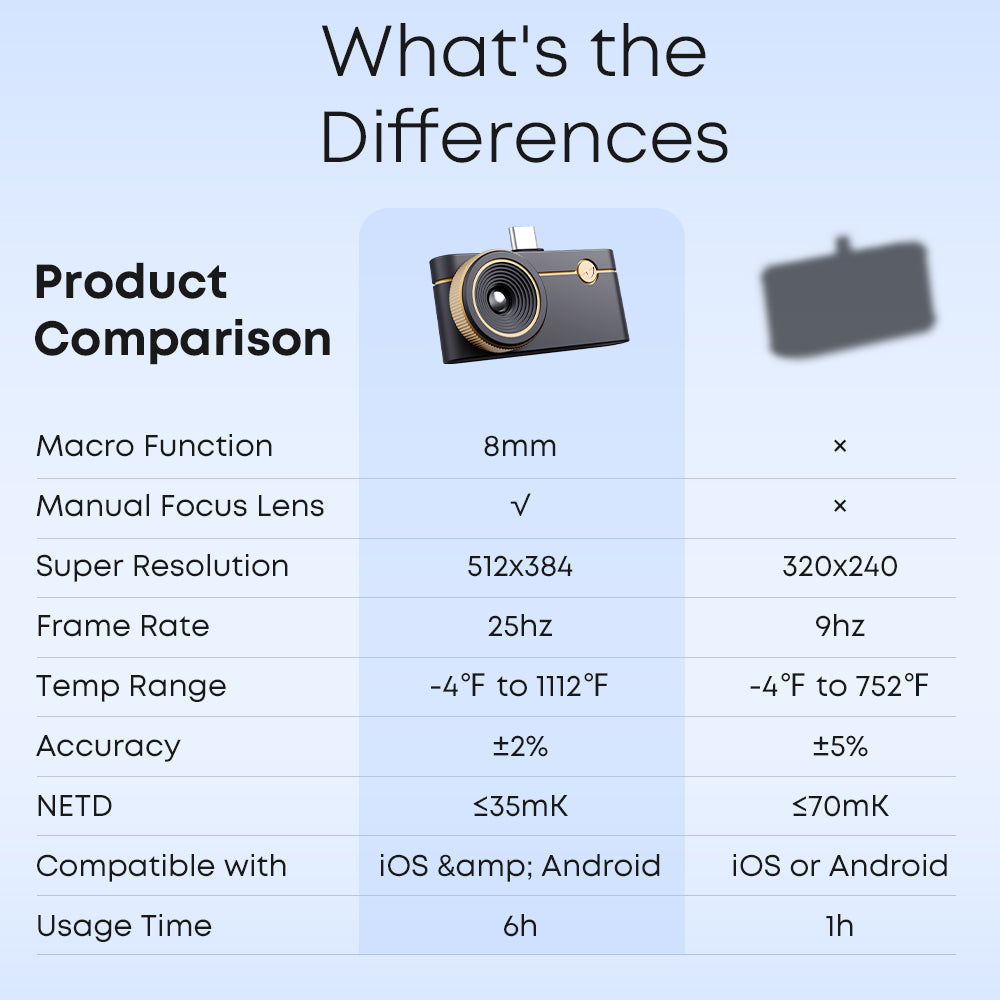

True Comparison!!!
Why is Thermal Master clearer than more expensive brands?
Super High Clarity
Unlock 512×384 IR resolution with X³ technology.
X³ OFF
X³ ON
Other Features
Wide Temperature Range
From -4℉ to 1112℉, the P3 thermal camera delivers ±2°C accuracy for precise PCB checks, circuit repair, and equipment inspections.
Multi-Mode Temp & Alarm
This thermal imaging camera supports point, line and area temperature measurement, with alarms to prevent overheating or low-temp faults.
App Name: Temp Master
Downloads here
12 Pro Palettes
The P3 thermal imaging camera offers 12 palettes, making PCB thermal imaging and circuit repair more intuitive.
Free Data Analysis
Generate free reports from the P3 electronic thermal camera, perfect for PCB diagnostics and equipment analysis.
Eco-Friendly
0.32W low consumption
✔Packing box
✔P3 Thermal camera
✔Manual use
✔Portable case
✔50cm Extension Cable
✔TypeC to Lightning Adapter
Have questions about buying this product?Chat with us
✔Packing box
✔P3 Thermal camera
✔Manual use
✔Portable case
✔50cm Extension Cable
✔TypeC to Lightning Adapter
Have questions about buying this product?Chat with us
See What Experts Say
Comparison
Product specification
P3
Vox 256x192 @12μm
512x384
-4℉~1122℉（-20℃~600℃）
±2℃ or ±2% of the reading
＜35mk@25℃
4.3mm
Macro & Manual Focus Lens
Detect 1mA PCB leakage
Circuit board/Electrical/ Industrial/HVAC/ Home/ Automotive Inspections
Connect to iPhone®, iPad®, Android™ Phones and PCs
iPhone 8-16
Android 7.0 over system
15×
25Hz
Thermal Master High-Sensitivity Sensor
Ultra-Clear algorithm
Dynamic compensation algorithm for temperature drift with intelligent sensing of ambient temperature
A setting that highlights a specific range of temperatures within the thermal image, making them stand out with a distinct color.
0.32W
40°x30.2°
59*27*17.2 mm
Aerospace Alloy Body
Plug extended by 2mm, compatible with most phone cases
P3 thermal camera, portable case, typeC to Lightning adapter, 50cm extension cabel, user manual
Customer Reviews
Livraison rapide et conforma à la commande. Caméra petite mais efficace.
Performance as expected. Very easy to use. I recommend this product. I use it for pcb short detection and it works great.
The Thermal Master camera is an outstanding tool for electronics repair and diagnostics. Its image definition and thermal sensitivity are excellent, allowing precise identification of heat sources even in densely packed circuit boards.
One of its most impressive features is its compact and lightweight design, which makes it incredibly easy to mount onto virtually any microscope setup without adding bulk or interfering with workflow.
The adjustable focus is another highly valuable feature — it enables fine-tuning for different working distances and component sizes, which is essential when dealing with intricate PCB layouts.
Overall, this camera delivers professional-grade performance in a form factor that’s ideal for bench work, field diagnostics, and integration into modular setups. Highly recommended for technicians and engineers who need reliable thermal imaging in tight spaces.
Great product, hi from croatia
Wasted money on cheap Chinese thermal camera, then watched a Sorin video showing the Thermal master P3, Convinced me to purchase the P3, I plan to use it in fault finding electronics, and I've also been checking my walls for cold spots. Much needed tool box accessory.
