Thermal Master P2 pro, World's Smallest Thermal Camera
Thermal Camera for Android, P2 Pro Thermal Imager with Macro Lens, Infrared Camera With 256 × 192 IR Resolution, 15X Zoom, -4℉ to 1112℉ Temp Range Thermal Imaging Camera for Phone.(App: Temp Master)
2 Years Warranty
30-Day Money backSuper useful and tiny as well as accurate. The clarity of the images is outstanding
I was unable to get this to work with my Samsung S21 Ultra. I went to Verizon and they were also unable to get it to work. I plugged it into my wife's phone and the camera works great.
I had high hopes based on reviews I had read, but I’ve been dissatisfied with too many products recently so my expectations were low. I’m happy to report that this product is exactly as reviewed by others and exactly as advertised. It works. My only concern is that it runs the phone battery down fairly quickly. But hey, you can’t win them all!
Small, light and surprisingly accurate readings. Accidentally downloaded the "Thermal Master" app initially, instead of the recommended "Temp Master" app (same logo...), but I'll be keeping both installed. Neither app is perfect, but between the two of them I get everything I need from a thermal camera.
Very nice camera, ordering process was straight forward with quick responses. Well packaged. Highly recommended.
Low Power Consumption
Battery Life 367 Minutes: Samsung Galaxy S23+ 4700mAh
15X Zoom
Adjust the zoom with an intuitive, user-friendly pinch-to-zoom function. Seamlessly shift from near to far distances and go beyond what’s visible to the human eye.
Analyze with Ease
All the information you need for informed decisions: access post-process temperature data and generate professional reports on-the-go.
DIY Color Bar
Highlight the target area with a two-finger swipe or manually set the temperature.
Adjustable Emissivity
Adjust for ambient temperature, spot distances and emissivity to ensure accurate temperature readings across environments and surfaces.
Windown app download: here
12 Color Palettes
Accurately highlight temperature targets with the precision of 12 color palettes.
Applications
The P2 pro Android is an incredibly versatile tool, measuring temperatures from 4°F to 1112°F (-20°C to 600°C with ±2℃) accuracy. Easily detect heat signatures in the most challenging environments, whether you’re navigating rugged terrains to track games, or ensuring the safety of your home by locating animals or heat leaks.

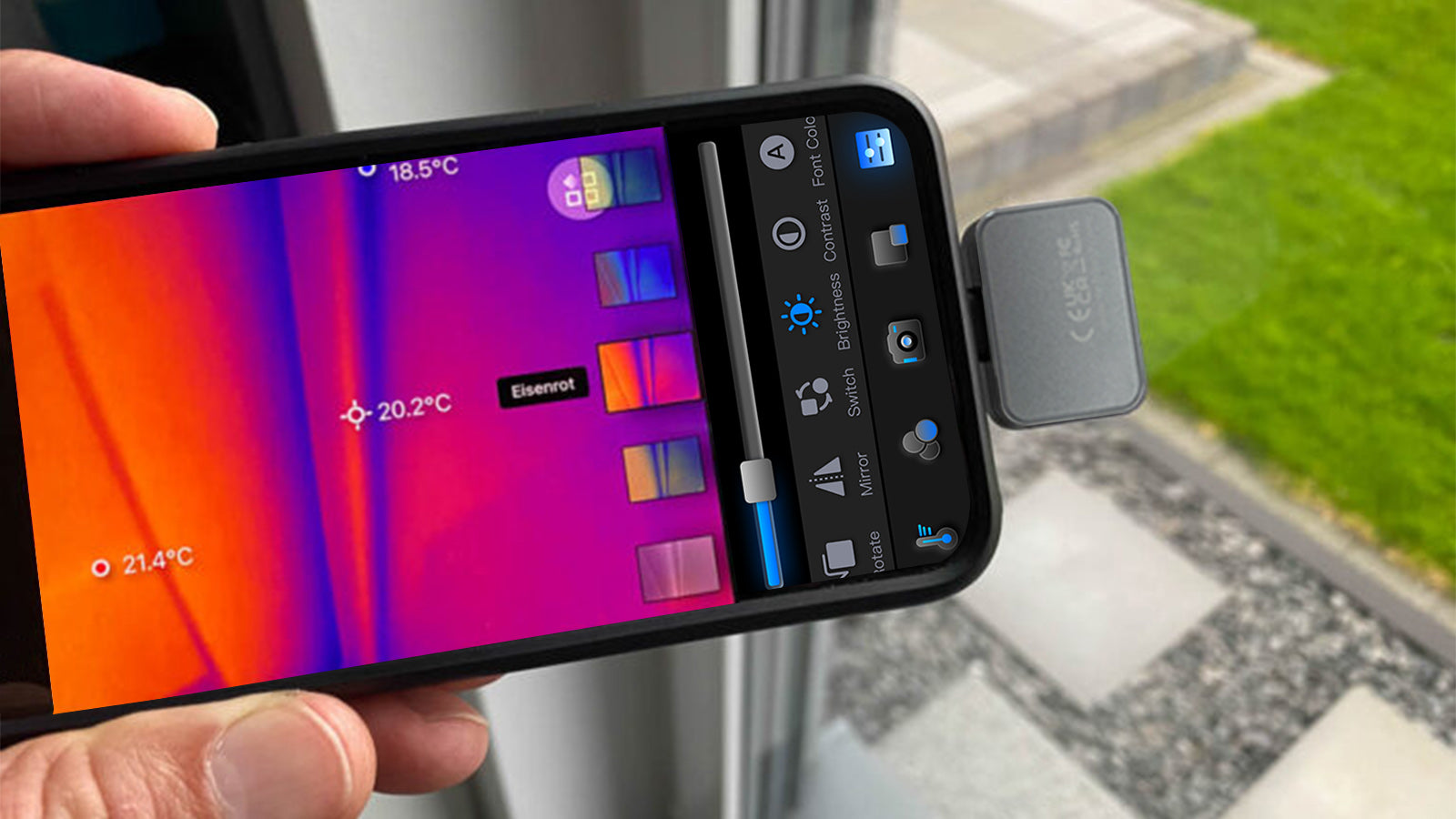

HVAC Inspection
Home Inspection

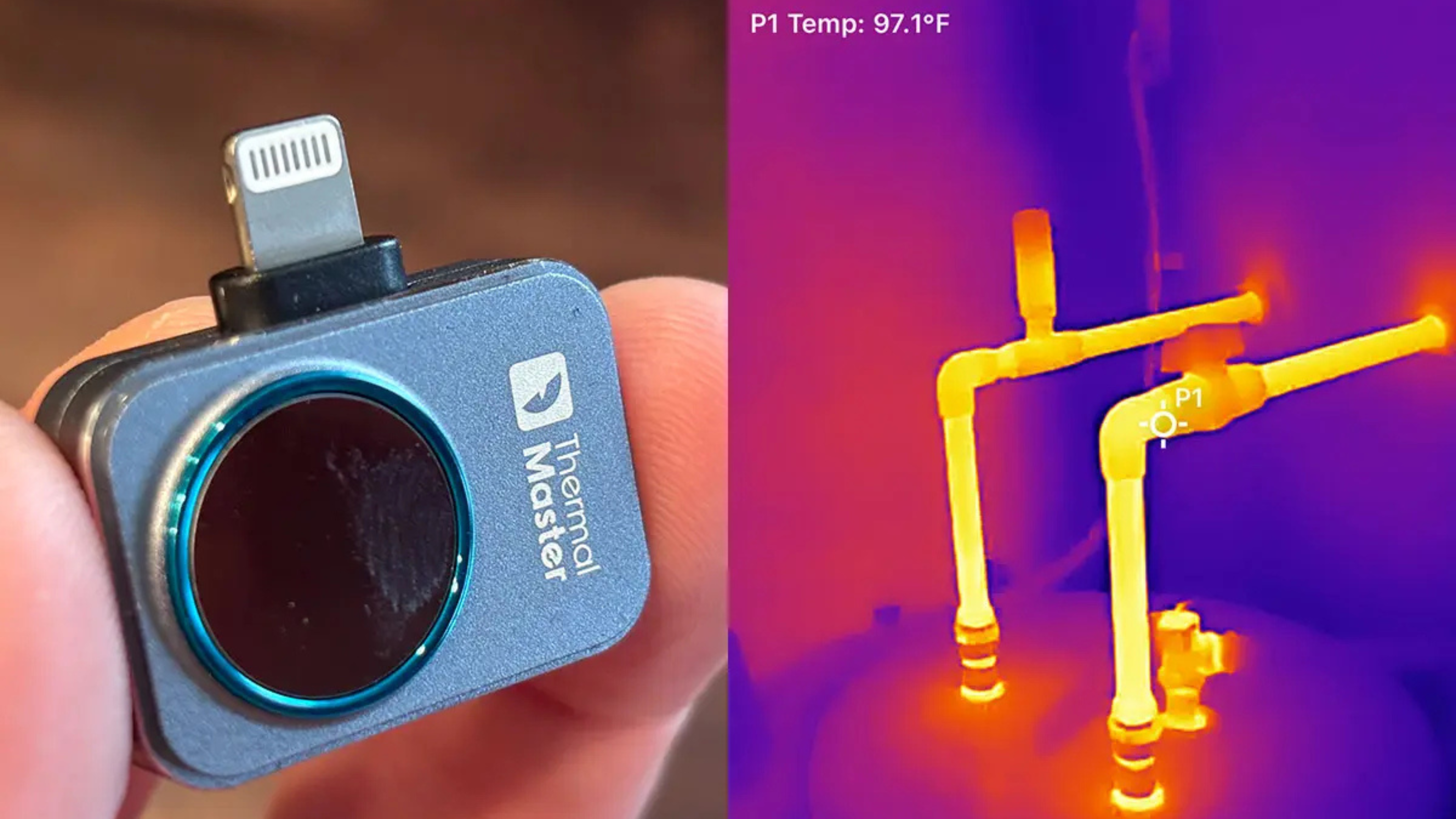

Pipe Inspection
Tire Repair
Drone
Motor Repair
Solar Panel Insepection
Electrical Maintenance
Distribution Inspection
Moutaineering
Fishing
Finding Pets

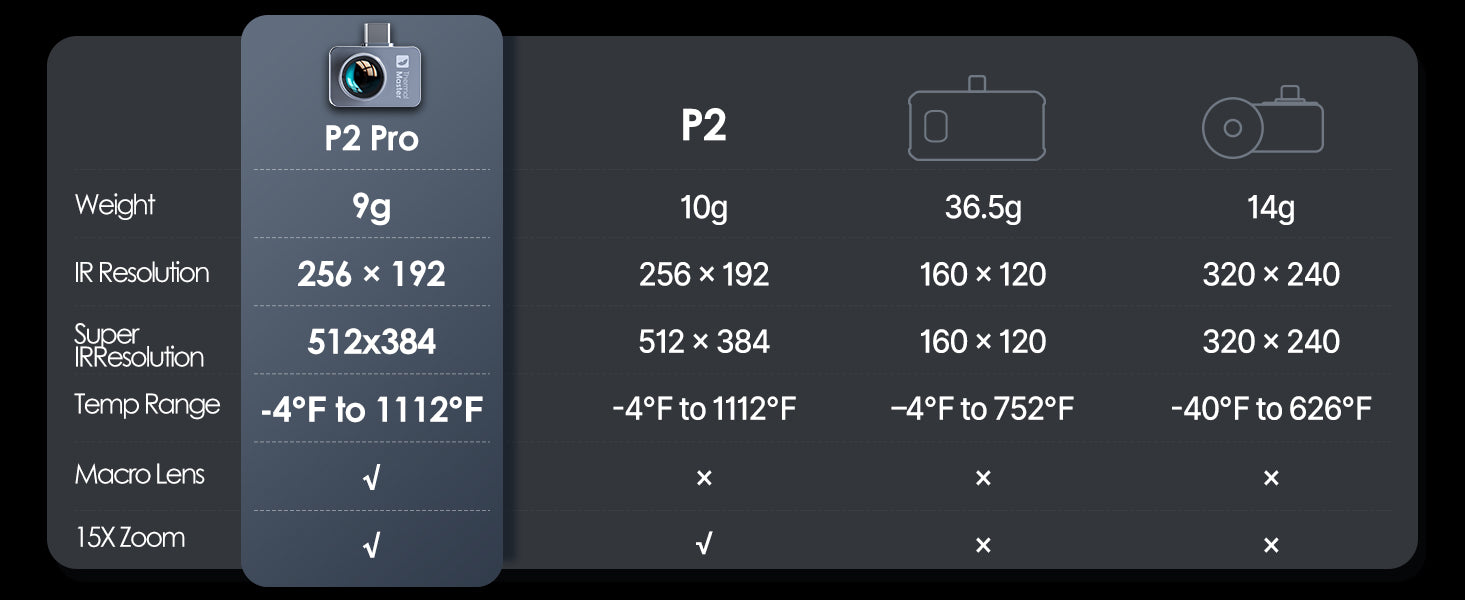

Product specification
P2 Pro Android | P2 Pro IOS
256×192 @12μm
±2℃ PCB Accuracy
Magnetic Macro Lens
Observe 0.25mm resistor
15X Zoom
≤40mK@25℃，F#1.0
300~480 minutes (Eg: Samsung Galaxy S23+ 4700mAh batarry life 367 minutes)
0.33W
25Hz
Supported
Supported
Highlight temperature target
Free point/ line/ plane data analysis
12 Palettes (white hot/ black hot/ iron red/ red hot + 8 other palettes)
Emissivity, Distance, Environmental temperature
Smartphone/Tablet/Computer
Electrical/ HVAC/ Pipeline/ House/ Automotive Inspections
Thermal Master High-Sensitivity Core
Athermalized Prime Lens
56.0°(H)x42.2°(V)
9g
Photo and video saving function
27mm×18mm×9.8mm
5℉~131℉（-10℃～55℃）
-40℉~185℉（-40℃～85℃）
Temp Master
Android 6.0 and above | iOS 11 and above
FAQ
What is the maximum temperature range of P2 Pro?
P2 Pro has a temperature measurement range of -4°F to 1112°F. When observing objects exceeding the upper temperature limit, the thermal imager will issue a burn warning.

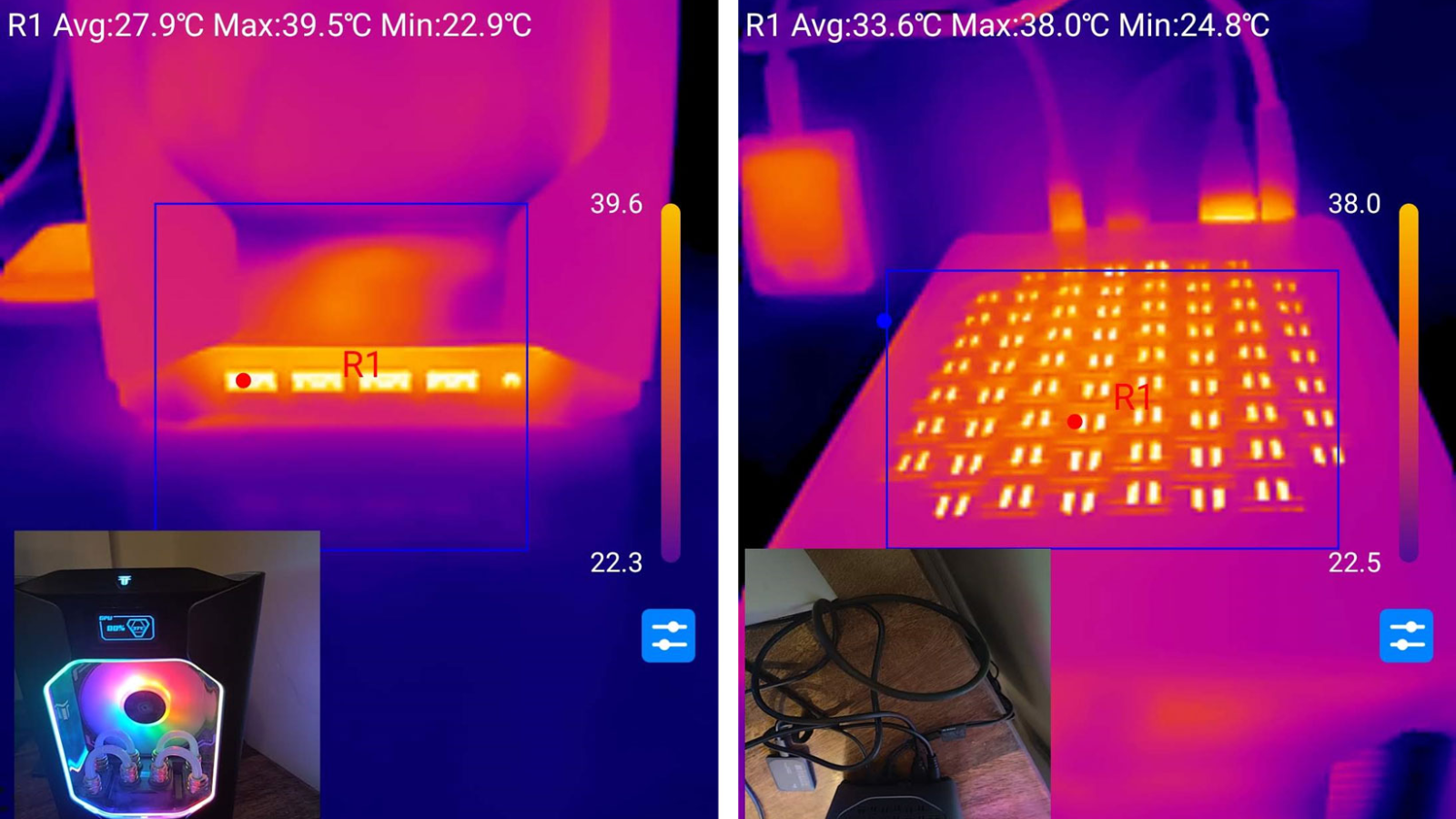

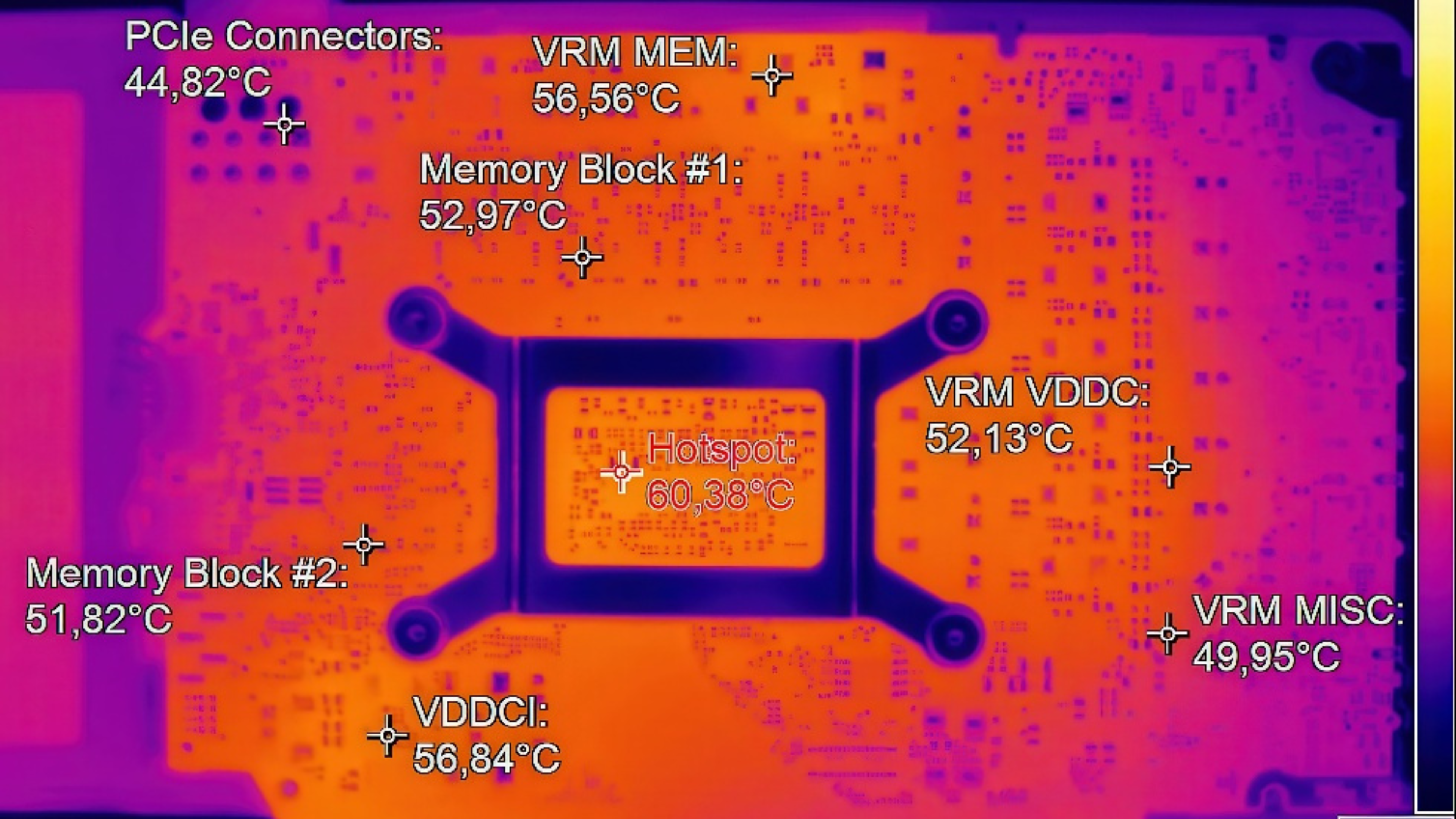

Can the P2 Pro inspect circuit boards? How large of an electronic component failure can it detect?
P2 Pro has a dedicated macro lens, allowing it to inspect 0.25mm resistors.
Does the P2 Pro need to be charged? How long does the battery last?
P2 Pro doesn't need to be charged separately. When connected to a smartphone or tablet, the device will power the P2 Pro. With a power consumption of only 0.33W, it can operate for 5-7 hours on a 3000-5000mAh phone.
Can the P2 Pro zoom in and out?
P2 Pro supports 15x zoom. You can achieve 1-15x zoom by sliding two fingers on the screen.
Can the P2 Pro be mounted on a drone or used for solar inspections?
P2 Pro is suitable for various scenarios, including drones, solar inspections, HVAC inspections, electrical testing, home inspections, vehicle maintenance, and boiler inspections.
How accurate is the temp measurement of P2 Pro? Does it support professional features like manual emissivity adjustment?
P2 Pro can detect temperature differences as small as 0.04℃ and has a PCB accuracy within ±2℃. With over 50 environmental parameters, you can adjust the ambient temperature, object distance, and emissivity to read temperatures more accurately.
Can the P2 Pro set a temperature range for focused inspections?
P2 Pro offers a DIY color bar feature. You can highlight the target area for focused inspections by dragging with your finger or manually setting the temperature.
Does the P2 Pro charge for temperature analysis reports?
P2 Pro provides free professional analysis reports, allowing easy point, line, and surface secondary analysis, annotation of infrared images, and sharing anytime, anywhere.
Why does the P2 Pro weigh only 9 grams?
P2 Pro utilizes Tiny's miniature module, adopting self-developed ASIC graphics processor. With the thickness of the shutter, it is only 8mm, making it smaller, lighter, lower power consumption, and higher performance.
Why are the images clearer than other expensive thermal imagers?
P2 Pro features a second-gen ASIC graphics processor and Thermal Master chip, along with Razor X and TEMP IQ+ algorithm. Its offer clearer images and more precise temperature measurements.
Can all smartphone use the P2 Pro?
Thermal Master has 7 years of expertise in developing mobile thermal imagers and holds world-leading core technology in this field. It is compatible with nearly a thousand phone models worldwide. Despite the extensive range, there may still be a few models that are not supported. For precise information, please refer to the list of supported models or contact customer service with your phone model and system details.
Is the P2 Pro compatible with the iPhone 15?
If you are using an iPhone or iPad with Lightning or Type-C interface, please purchase the iOS version and specify the need for an iPhone 15 adapter.
