Thermal Master P2 pro, World's Smallest Thermal Camera
Description
Thermal Master P2 Pro – 512×384 X³IR High-Resolution, -4°F~1112°F Range, ±3.6°F Accuracy
Superior clarity, PCB-level precision – The best thermal camera for HVAC inspection, leaks detection, PCB diagnostics, and drone-mounted thermal camera.
Key Features:
✔ World’s Smallest Thermal Camera – Plug-and-play phone compatibility for instant inspections.
✔ Macro Lens – allowing this thermal camera detects 1mA current leaks and observes 0.25mm resistors from 4cm away.
✔ 15x Digital Zoom - the only thermal camera that can Pinch-to-zoom functionality for quick problem area identification.
✔ 0.33W Ultra-Low Power Consumption – Operates for 5-7 hours on phones with 3000-5000mAh batteries.
✔ Isotherm & Reporting – Generate professional reports with point/line/area temperature analysis.
✔ 50+ Environmental Presets – Optimize readings with adjustable emissivity and distance settings.
✔ Overheat Alarm – Automatic burn hazard alerts for safer inspections.
Perfect for: HVAC technicians, electricians, PCB engineers, drone operators, and industrial inspectors.
Fast Delivery
2 Years Warranty
30-Day Money back
Lifetime technical support
Trusted Experts. Real Comparisons
Awards
Over 60,000+ Users Reviews
Bill Liao
Excellent
"Super useful and tiny as well as accurate. The clarity of the images is outstanding"
Konstantino Skoubis
Does What It Says It Will Do
"I had high hopes based on reviews I had read, I’m happy to report that this product is exactly as reviewed by others and exactly as advertised. It works. "
Graham Millen
"Small, light and surprisingly accurate readings. Accidentally downloaded the "Thermal Master" app initially, instead of the recommended "Temp Master" app (same logo...), but I'll be keeping both installed. "
Raimond Fontaine
Brilliant Thermal Camera
"Very nice camera, ordering process was straight forward with quick responses. Well packaged. Highly recommended."
Zepher
It's a breeze!
"I'm a novice but this is a really easy to use product. You plug it into your phone, download the program and within five minutes you're ready to go!"
Works as promised
"Great small camera and decent app on Android."
Why Choose Thermal Master P2 Pro
Thermal Master P2 VS P2 Pro

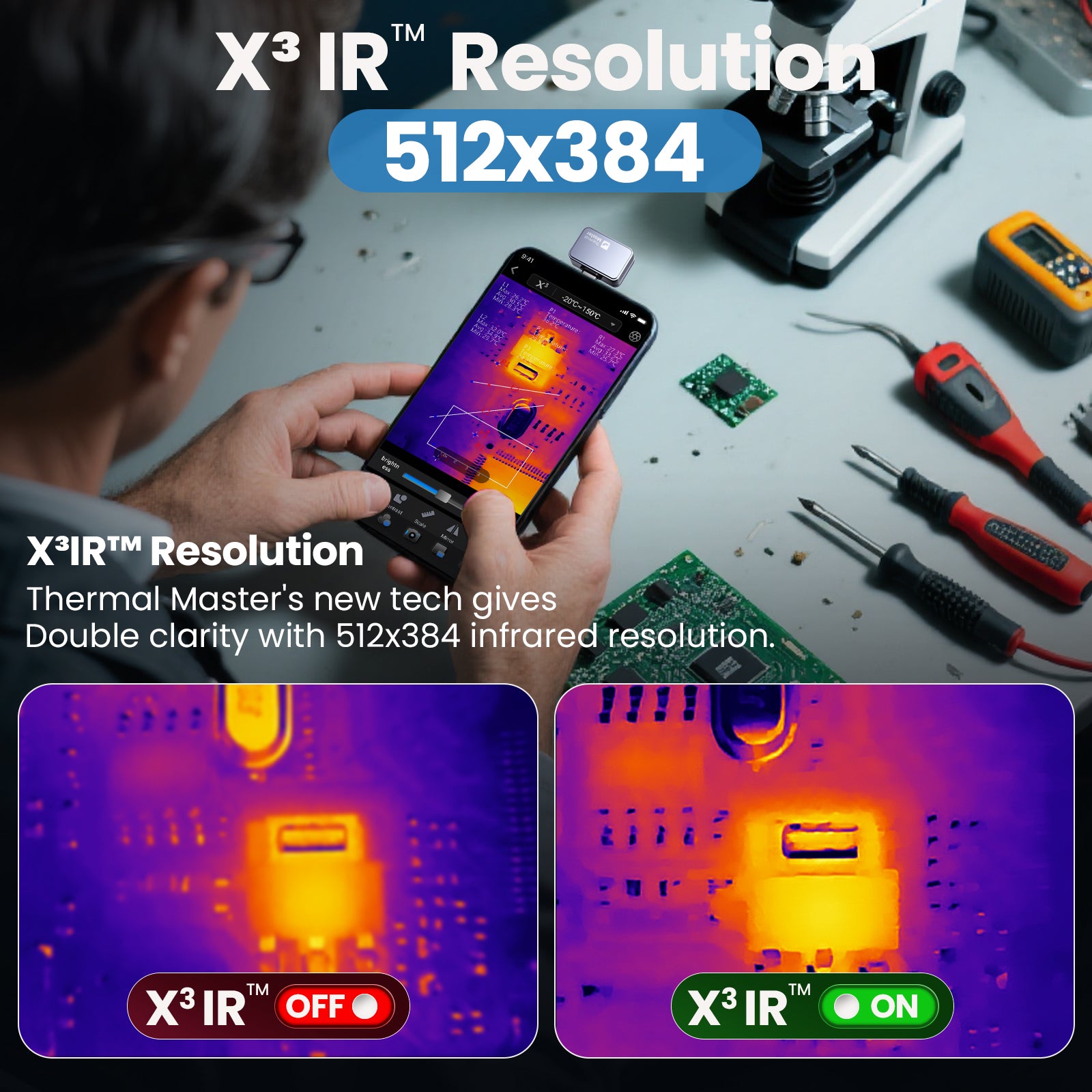

512×384 X³IR Resolution
Thermal Master P2 Pro uses Razor X and X³ algorithms to boost IR resolution to 512×384 with 0.04℃ sensitivity. Perfect for detecting water leaks, HVAC inspection, electrical distribution cabinet inspection for overheating components, delivering sharp, accurate thermal imaging.

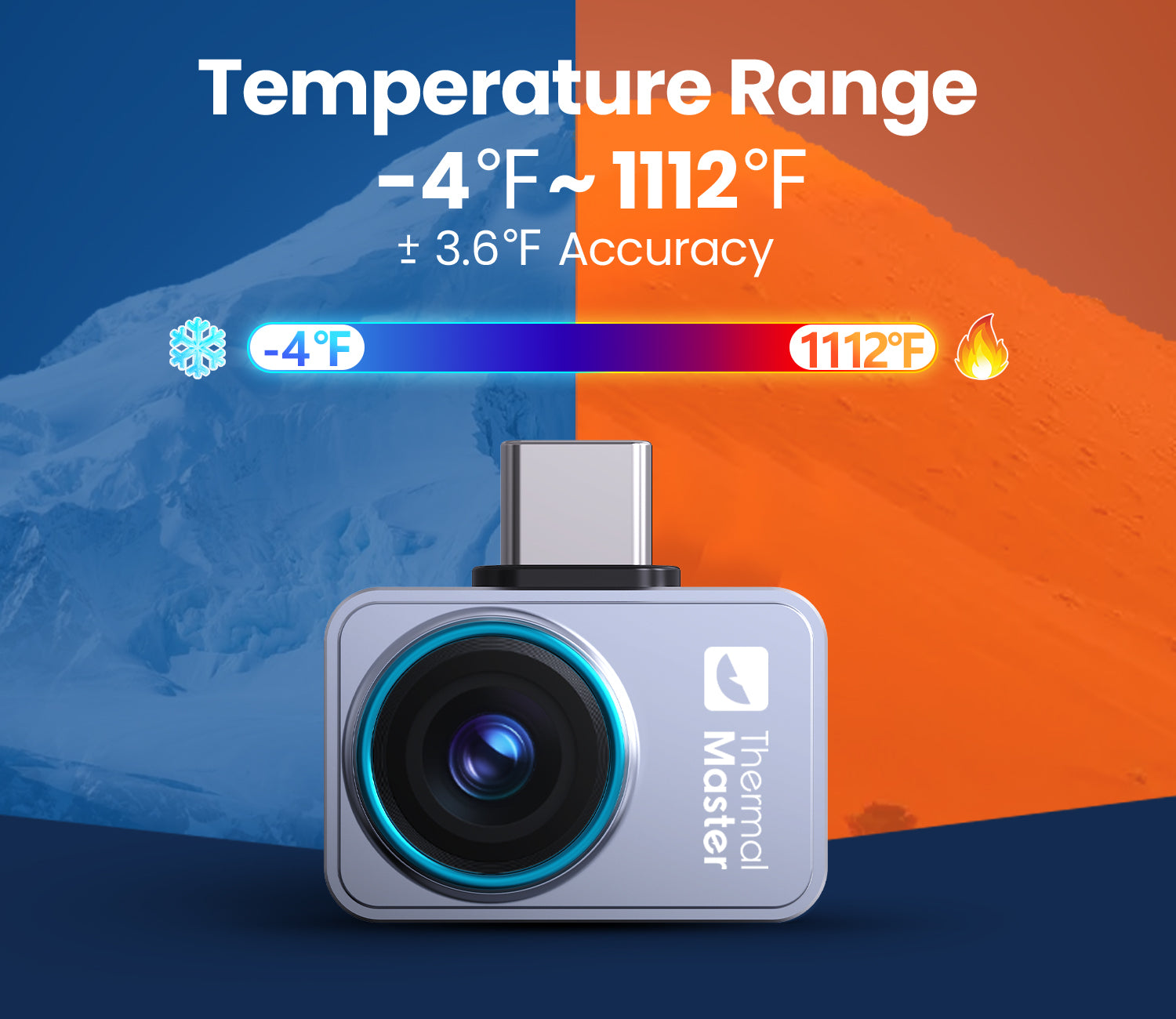

1112℉ High Temp
Thermal Master P2 Pro covers -4℉ to 1112℉ with ±3.6℉ PCB accuracy. Ideal for electricians, engineers, contractors and homeowners to detect overheating with smooth 25 Hz readings.
15X Zoom
P2 Pro features 15× pinch-to-zoom for quick detection and a DIY Colorbar to highlight target areas with adjustable temps.

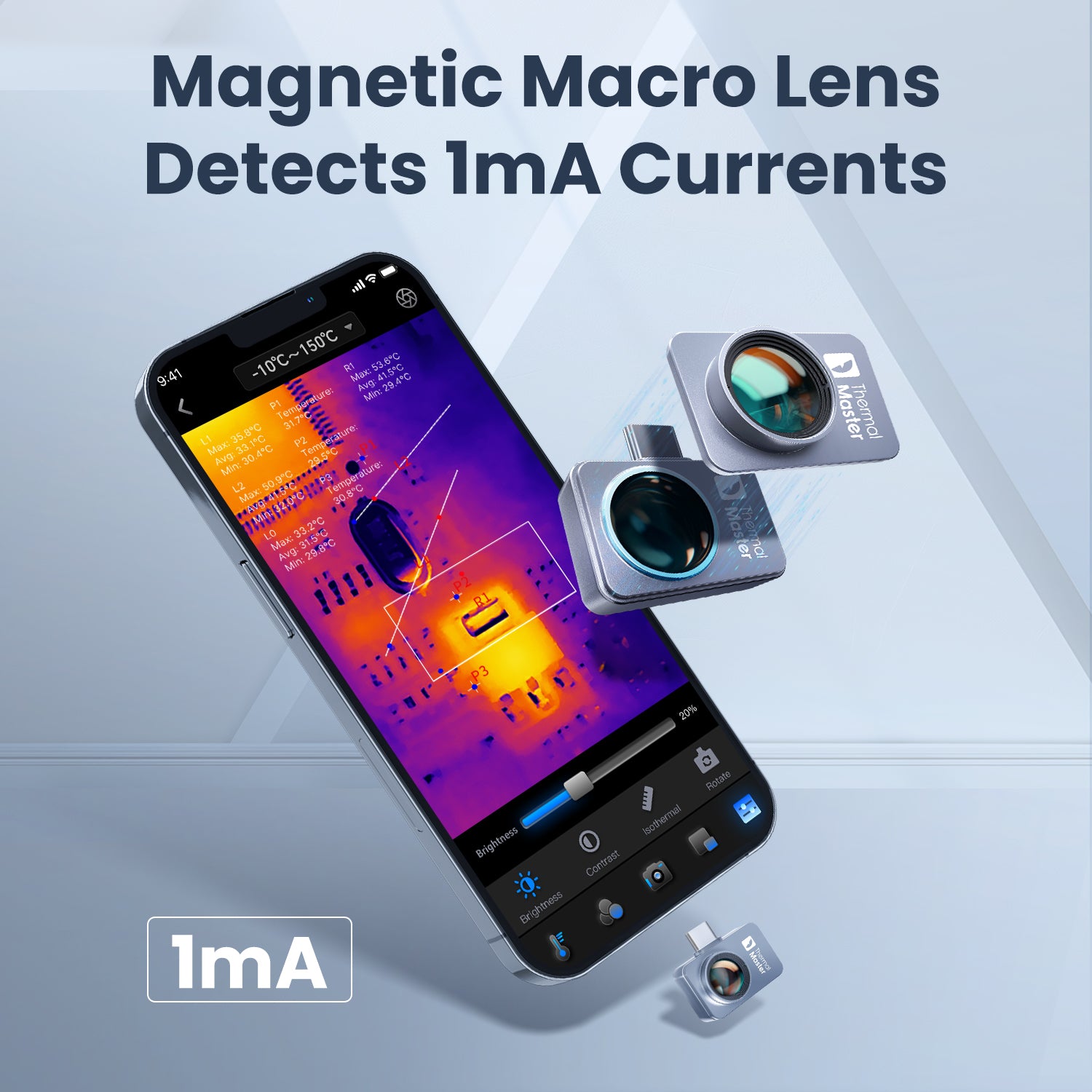

See 0.25mm Resistor
P2 Pro with magnetic macro lens captures 0.25 mm resistors from 4 cm away, with 50+ environment emissivity for precise thermal readings

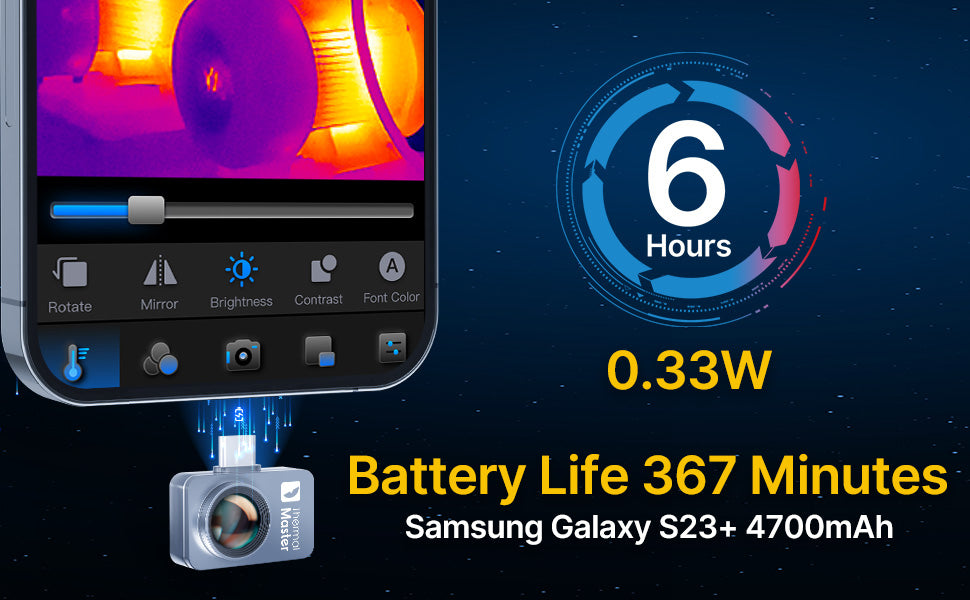

0.33W Low Consumption
Draws only 0.33 W from your phone, runs 5–7 hrs, no battery or separate charging needed.
Applications
The P2 pro Android is an incredibly versatile tool, measuring temperatures from 4°F to 1112°F (-20°C to 600°C with ±2℃) accuracy. Easily detect heat signatures in the most challenging environments, whether you’re navigating rugged terrains to track games, or ensuring the safety of your home by locating animals or heat leaks.

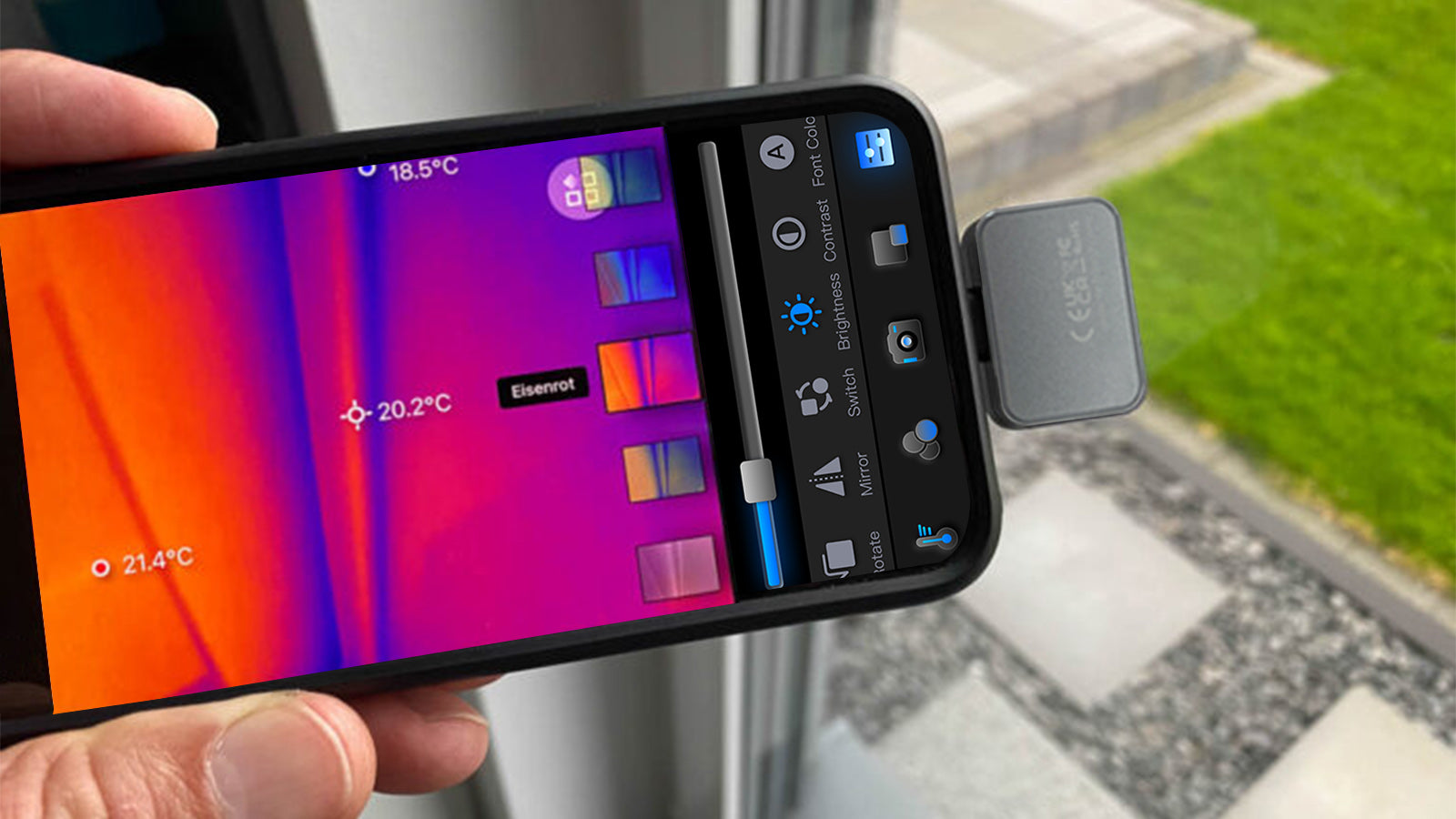

HVAC Inspection
Home Inspection
Pipe Inspection
Tire Repair
Drone
Motor Repair
Solar Panel Insepection
Electrical Maintenance
Distribution Inspection
Moutaineering
Fishing
Finding Pets
Seems like a decent thermal camera. The macro lens won’t attach to the thermal camera. Should have a quality person checking them out before shipping. I emailed someone in the company about this issue, and I never heard back.
B ouogh the camera for pcb repair `
last week my son grab the camera that mas on my desk abd destroy it........so i need the magnetic mcrolens ````
this is my third attept to buy a macrolens
please give me the price for a replacemfnt magnwetic macro lens
Thanks
Alain
[****]
working good. With standard Iphone lighting connector working good, but, new iPad connected via cable and lighting adaptor, camera doesn't start. Its work only with small adaptor lighting-USB C.
Super useful and tiny as well as accurate. The clarity of the images is outstanding
I was unable to get this to work with my Samsung S21 Ultra. I went to Verizon and they were also unable to get it to work. I plugged it into my wife's phone and the camera works great.
Product specification
P2 Pro Android | P2 Pro IOS
256×192 @12μm
±2℃ PCB Accuracy
Magnetic Macro Lens
Observe 0.25mm resistor
15X Zoom
≤40mK@25℃，F#1.0
300~480 minutes (Eg: Samsung Galaxy S23+ 4700mAh batarry life 367 minutes)
0.33W
25Hz
Supported
Supported
Highlight temperature target
Free point/ line/ plane data analysis
12 Palettes (white hot/ black hot/ iron red/ red hot + 8 other palettes)
Emissivity, Distance, Environmental temperature
Smartphone/Tablet/Computer
Electrical/ HVAC/ Pipeline/ House/ Automotive Inspections
Thermal Master High-Sensitivity Core
Athermalized Prime Lens
56.0°(H)x42.2°(V)
9g
Photo and video saving function
27mm×18mm×9.8mm
5℉~131℉（-10℃～55℃）
-40℉~185℉（-40℃～85℃）
Temp Master
Android 6.0 and above | iOS 11 and above
FAQ
What is the maximum temperature range of P2 Pro?
P2 Pro has a temperature measurement range of -4°F to 1112°F. When observing objects exceeding the upper temperature limit, the thermal imager will issue a burn warning.
Can the P2 Pro inspect circuit boards? How large of an electronic component failure can it detect?
P2 Pro has a dedicated macro lens, allowing it to inspect 0.25mm resistors.
Does the P2 Pro need to be charged? How long does the battery last?
P2 Pro doesn't need to be charged separately. When connected to a smartphone or tablet, the device will power the P2 Pro. With a power consumption of only 0.33W, it can operate for 5-7 hours on a 3000-5000mAh phone.
Can the P2 Pro zoom in and out?
P2 Pro supports 15x zoom. You can achieve 1-15x zoom by sliding two fingers on the screen.
Can the P2 Pro be mounted on a drone or used for solar inspections?
P2 Pro is suitable for various scenarios, including drones, solar inspections, HVAC inspections, electrical testing, home inspections, vehicle maintenance, and boiler inspections.
How accurate is the temp measurement of P2 Pro? Does it support professional features like manual emissivity adjustment?
P2 Pro can detect temperature differences as small as 0.04℃ and has a PCB accuracy within ±2℃. With over 50 environmental parameters, you can adjust the ambient temperature, object distance, and emissivity to read temperatures more accurately.
Can the P2 Pro set a temperature range for focused inspections?
P2 Pro offers a DIY color bar feature. You can highlight the target area for focused inspections by dragging with your finger or manually setting the temperature.
Does the P2 Pro charge for temperature analysis reports?
P2 Pro provides free professional analysis reports, allowing easy point, line, and surface secondary analysis, annotation of infrared images, and sharing anytime, anywhere.
Why does the P2 Pro weigh only 9 grams?
P2 Pro utilizes Tiny's miniature module, adopting self-developed ASIC graphics processor. With the thickness of the shutter, it is only 8mm, making it smaller, lighter, lower power consumption, and higher performance.
Why are the images clearer than other expensive thermal imagers?
P2 Pro features a second-gen ASIC graphics processor and Thermal Master chip, along with Razor X and TEMP IQ+ algorithm. Its offer clearer images and more precise temperature measurements.
Can all smartphone use the P2 Pro?
Thermal Master has 7 years of expertise in developing mobile thermal imagers and holds world-leading core technology in this field. It is compatible with nearly a thousand phone models worldwide. Despite the extensive range, there may still be a few models that are not supported. For precise information, please refer to the list of supported models or contact customer service with your phone model and system details.
Is the P2 Pro compatible with the iPhone 15?
If you are using an iPhone or iPad with Lightning or Type-C interface, please purchase the iOS version and specify the need for an iPhone 15 adapter.
