Thermal Master T2S Pro, 8mm Macro Temperature Measurement Master
- Multiple Inspection Scenarios: Suitable for PCB inspection, electronics testing, electrical inspection, HVAC diagnostics, solar panels, and automotive use.

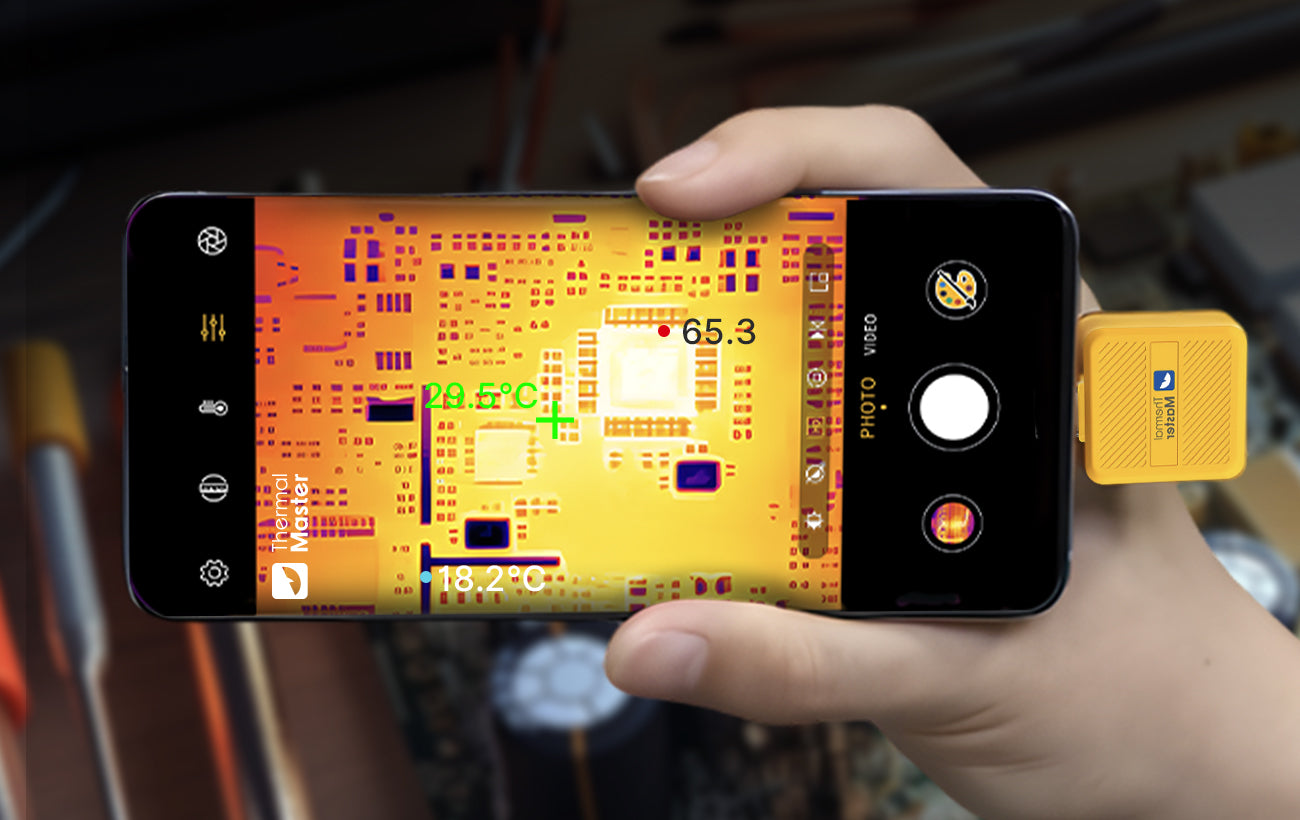

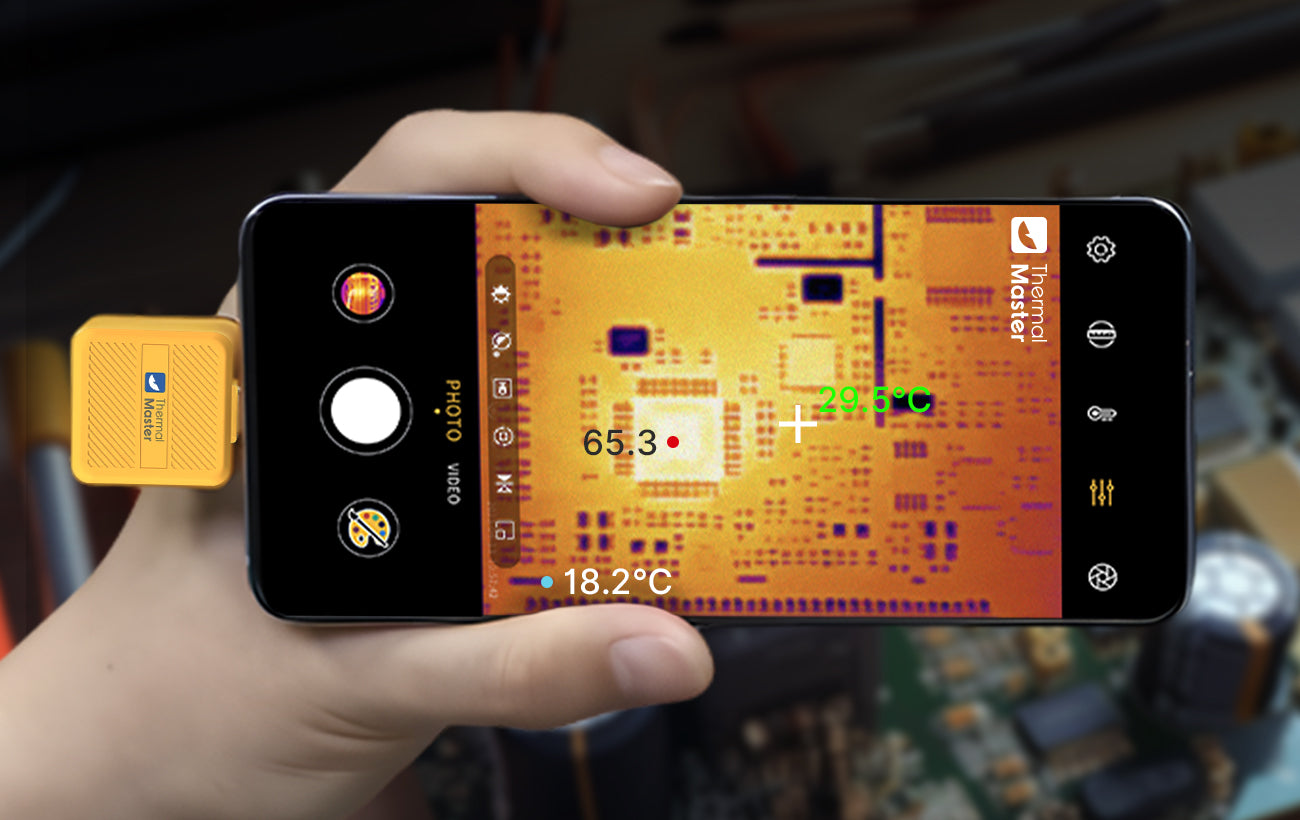

- Dual PCB Inspection Methods: Supports PCB inspection down to 0.25 mm, with optional 6D PCB Test Master for enhanced positioning.
- 8mm Manual Close-Up Focus: The manual focus design supports a minimum object distance of 8 mm, enabling precise close-range inspection.
- High Thermal Imaging Performance: 256×192 infrared sensor with HD super-resolution for clear close-range thermal detail.
- Temperature Measurement Range: –4℉ to 842℉ (–20℃ to 450℃) with ±2℃ PCB-level accuracy.
- Powered by High-Performance Hardware: Thermal Master® core (NETD ≤40 mK) with low 0.35 W power consumption.
- Multi-Function Temperature Analysis: Point, line, and area measurements with temperature correction and hot-spot highlighting.
- Android and iOS Support: Compatible with Android 6.0+ and iOS 11+, supporting photo and video recording via the IR Master app.
Fast Delivery
2 Years Warranty
30-Day Money back
Lifetime technical support
Shipping & Warranty
🚚 Free Global Shipping
Free worldwide delivery with no import tax.
🌍 Regional Warehouses
Ships from the nearest warehouse — US, UK, or DE for local orders; CN warehouse for others.
⏱ Fast Delivery
3–7 days (UK) · 7–10 days (US/EU) · 15–25 days (other countries).
*NOTED: Once your order is placed, your order number will be uploaded within 5-7 days.
Process and ship: 1-3 days
Tracking number update: 3-5 additional days
Thank you for your patience!
🧾 Tax-Free Guarantee
All prices include import tax — no hidden fees.
🔄 Stock Priority
If out of stock locally, we ship directly from CN warehouse to ensure fast fulfillment.
🛡 2-Year Warranty— Replacement Only
Covered by a full 2-year warranty with no repair delays — we replace your unit directly, hassle-free.
💰 30-Day Risk-Free Trial
Product Highlights
6D PCB Test Master(optional)
The T2S Pro camera is an integral part of a 6D Multifunctional PCB Repair Station.
Robust Thee-in-One Device

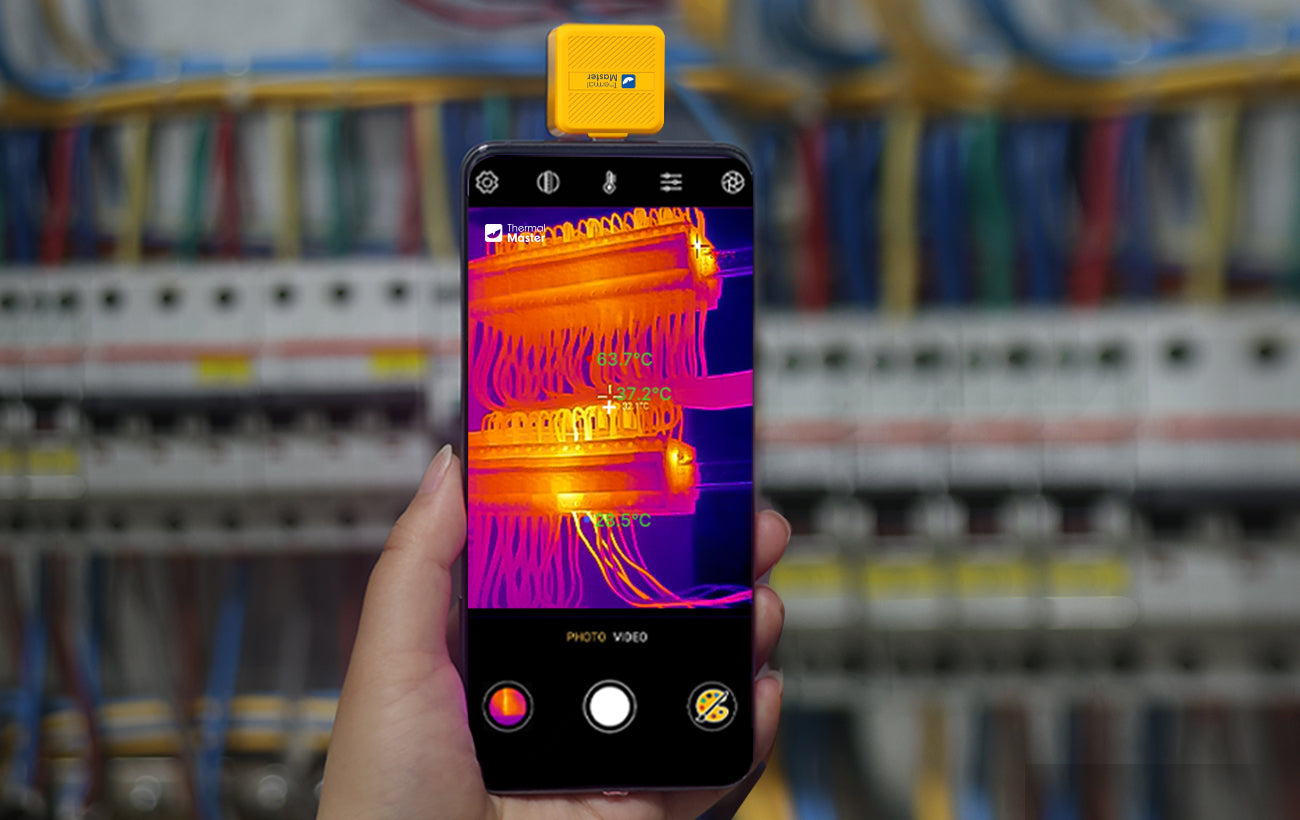

The T2S Pro is versatile and precise at all distances, offering three distinct uses: 10m for power inspection, 5m for electrical cabinets, and 8mm for micro-circuit analysis, making it an essential tool for a wide range of technical applications.
Near 8mm
Medium 5m
Far 10m

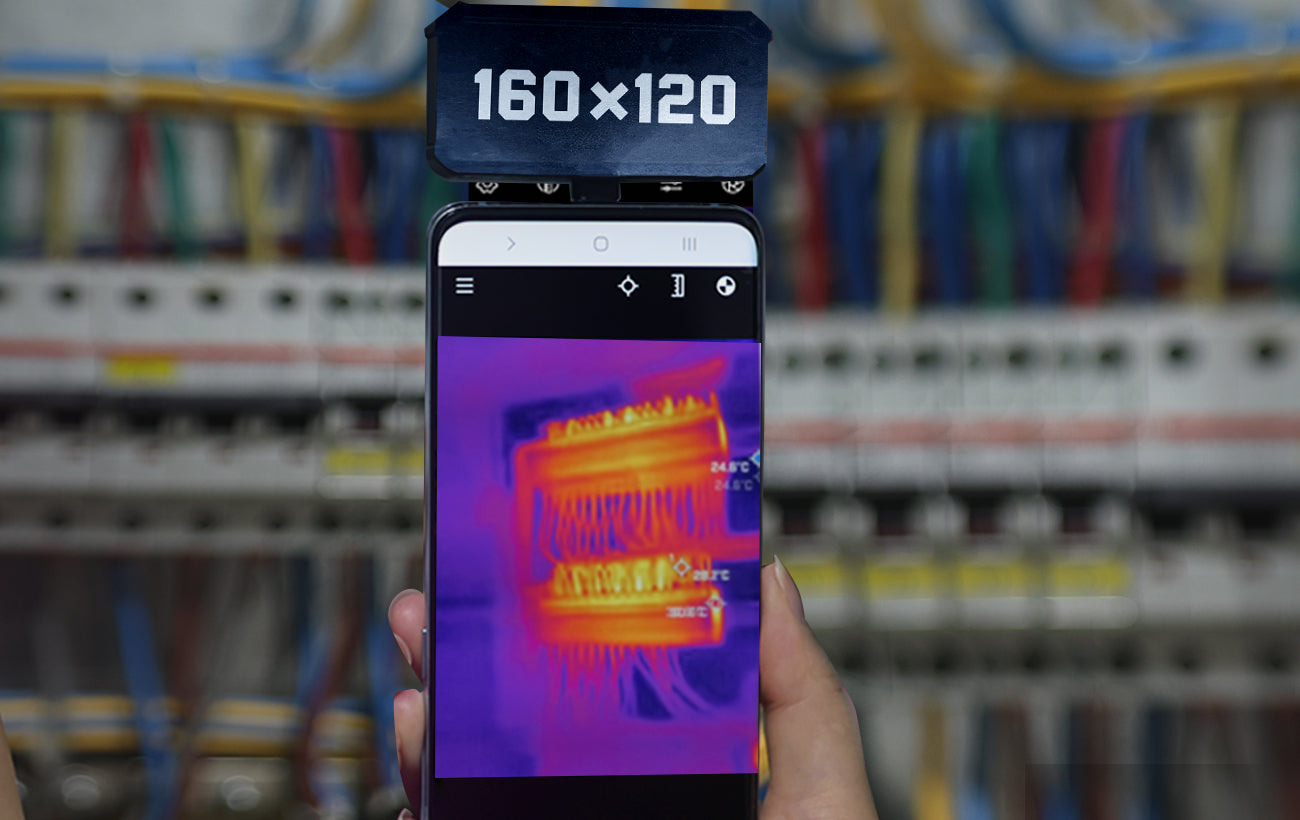

T2s pro VS Other
Even HD mode off, T2s pro images are more clear and sharper than other.
HD Mode Ultra Clear
The only phone thermal camera with HD mode. Once HD mode on, it's unbeatable.
15X Zoom
The only smartphone thermal camera with 15x zoom capability,featuring pinch-to-zoom functionality.
DIY Color Bar
Allows for setting key temperature zones for enhanced image prominence.
Temperature Alarm
High and low temperature alarm threshold can be set. When the temperature of measuring area exceeds the configured threshold, the sound alarm will be turned on.
App/ Data Sheet/ Manual
Product specification
T2s Pro Android| T2s Pro IOS
256×192 @12μm

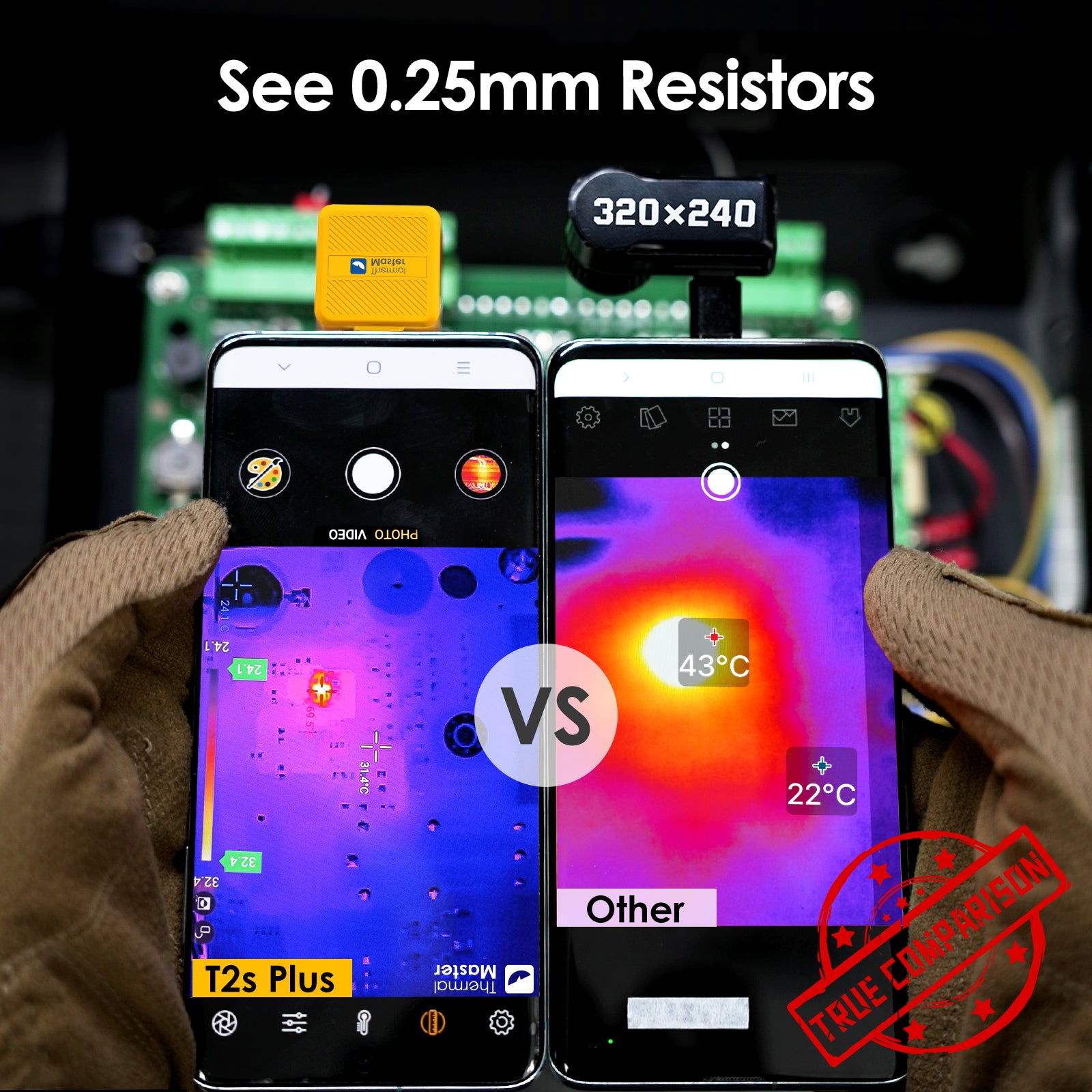

Observe 0.25mm resistor
±2℃ PCB Accuracy
-20℃～450℃
min. 8mm
Manual Focusing
Ultra clear images
15X Zoom
≤40mK@25℃，F#1.0

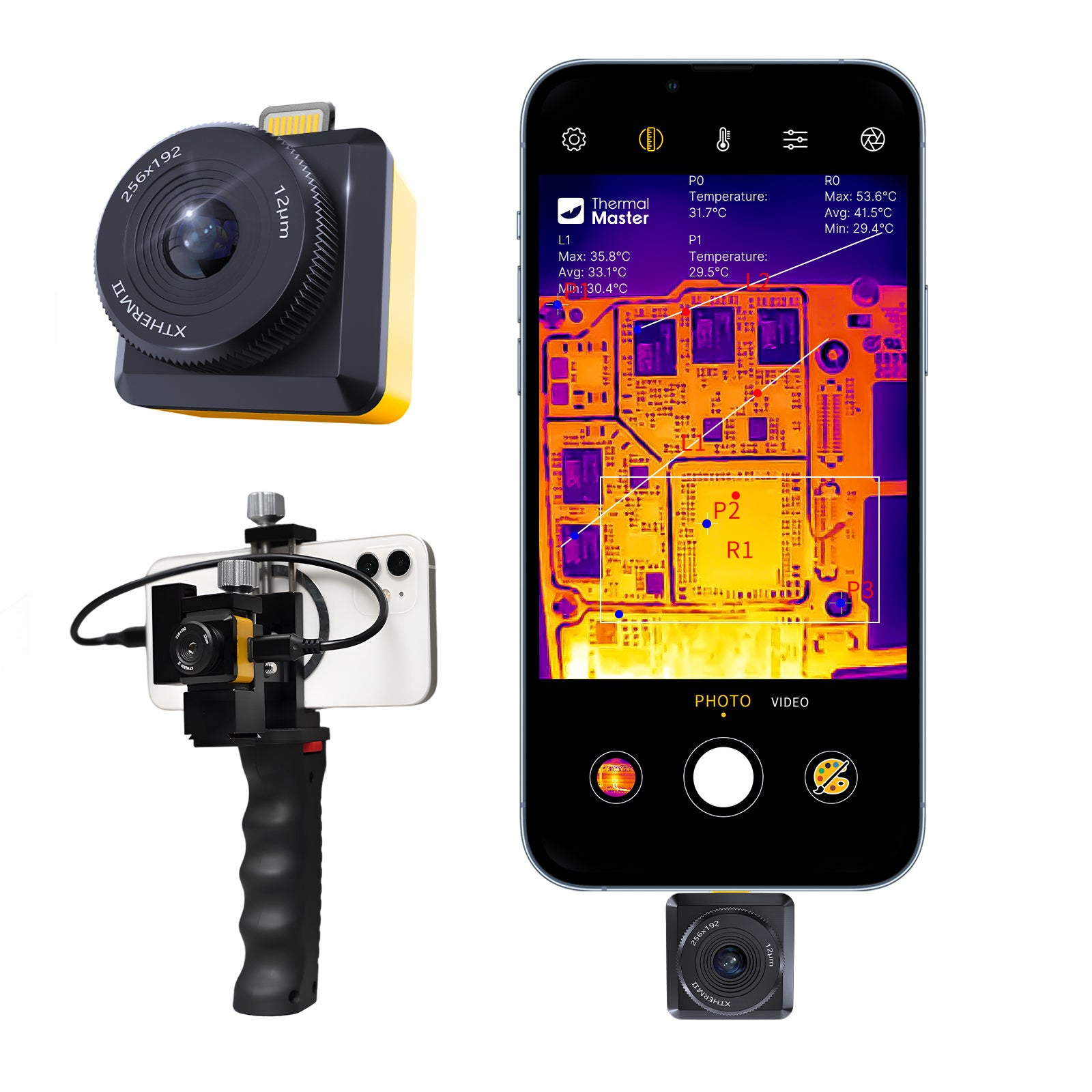

Tactical Handle and extension cable
300~480 minutes (Eg: Samsung Galaxy S23+ 4700mAh batarry life 367 minutes)
25Hz
7 Palettes (White-hot/ Black-hot/ Iron Red/ Red-hot /Iron Grey/ Rainbow/Rainbow_HC)
Highlight temperature target
Emissivity, Distance, Environmental temperature
Secondary point/ line/ plane data analysis

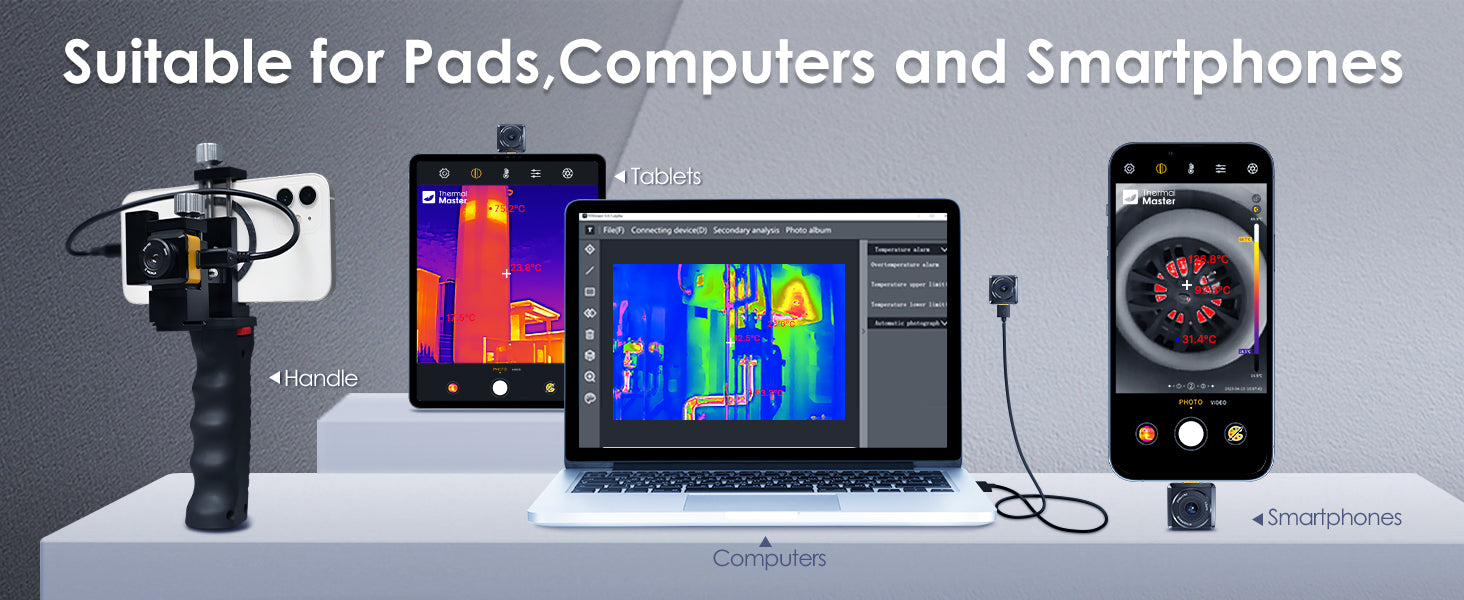

Smartphone/Tablet/Computer
Electrical/ HVAC/Solar Panels/ Automotive Inspections
- “IQ+” Precision Temperature Measurement Algorithm
- "Razor X" Ultra Clear Image Algorithm
"Thermal Master" High-Sensitivity Core
0.35mW
42.0°x32.1°
19.5g
Photo and video saving function
26mm×32mm×23mm
-10℃～55℃
-40℃～85℃
- Android 6.0 and above
- iPhone 8 & iOS 13 above system
FAQ
Can the T2S Plus inspect circuit boards? How large of an electronic component failure can it detect?
T2S Plus has a dedicated macro lens, allowing it to inspect 0.25mm resistors.
Can the T2S Plus zoom in and out?
T2S Plus supports 15x zoom. You can achieve 1-15x zoom by sliding two fingers on the screen.
Can the T2S Plus be used for solar inspections?
T2S Plus is suitable for various scenarios, including drones, solar inspections, HVAC inspections, electrical testing, home inspections, vehicle maintenance, and boiler inspections.
How accurate is the temp measurement of T2S Plus? Does it support professional features like manual emissivity adjustment?
T2S Plus can detect temperature differences as small as 0.04℃ and has a PCB accuracy within ±2℃. With over 50 environmental parameters, you can adjust the ambient temperature, object distance, and emissivity to read temperatures more accurately.
Can the T2S Plus set a temperature range for focused inspections?
T2S Plus offers a DIY color bar feature. You can highlight the target area for focused inspections by dragging with your finger or manually setting the temperature.

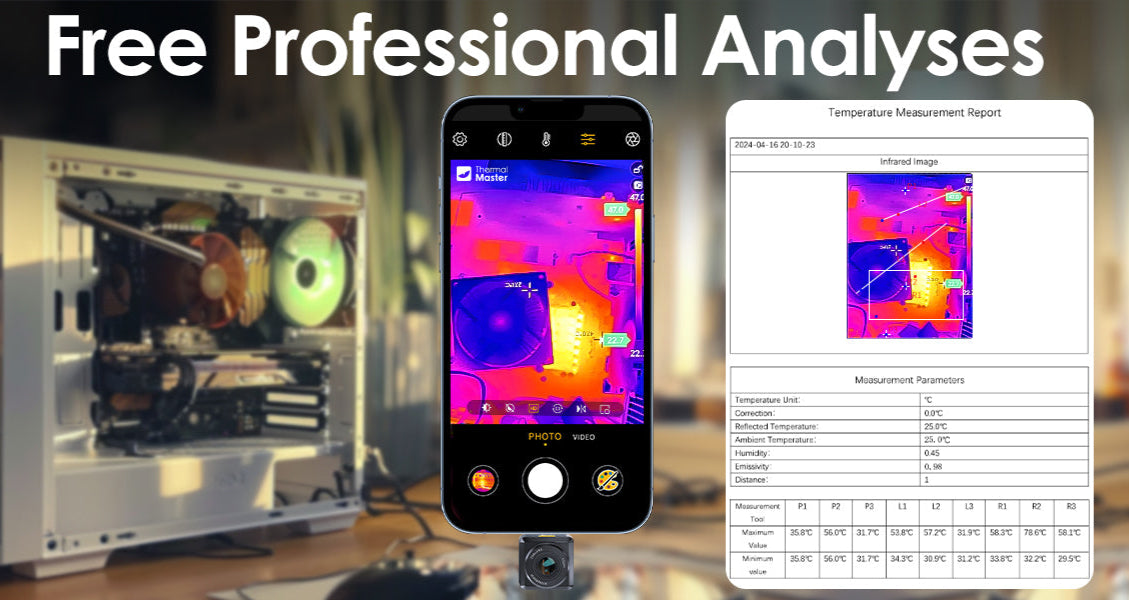

Does the T2S Plus charge for temperature analysis reports?
T2S Plus provides free professional analysis reports, allowing easy point, line, and surface secondary analysis, annotation of infrared images, and sharing anytime, anywhere.
Why are the images clearer than other expensive thermal imagers?
T2S Plus features a second-gen ASIC graphics processor and Thermal Master chip, along with Razor X and TEMP IQ+ algorithm. Its offer clearer images and more precise temperature measurements.
Can all smartphone use the T2S Plus?
Thermal Master has 7 years of expertise in developing mobile thermal imagers and holds world-leading core technology in this field. It is compatible with nearly a thousand phone models worldwide. Despite the extensive range, there may still be a few models that are not supported. For precise information, please refer to the list of supported models or contact customer service with your phone model and system details.
Is the T2S Plus compatible with the iPhone 15?
If you are using an iPhone or iPad with Lightning or Type-C interface, please purchase the iOS version and specify the need for an iPhone 15 adapter.
