Thermal Master P3, PCB Thermal Camera
Thermal Master P3 Thermal Camera—PCB Master, engineered with 512×384 X³ IR resolution, macro lens, and 15× zoom to spot PCB faults, detect 1mA leakage, and cover a wide temperature range.
A compact, pro-grade tool for PCB, HVAC, and electrical inspections.
Fast Delivery
2 Years Warranty
Lifetime technical support
30-Day Money back
See What Experts Say
Awards and Recognition
Why Choose P3 thermal camera?
P3, PCB Master
✔1mA PCB Detects Leakage
✔8mm Macro Focus Lens
✔512x384 X³ IR™ Resolution
✔-20~600℃ ±2℃ Accuracy
True comparison!!!
Enjoy 512x384 high-resolution images powered by x³ technology.

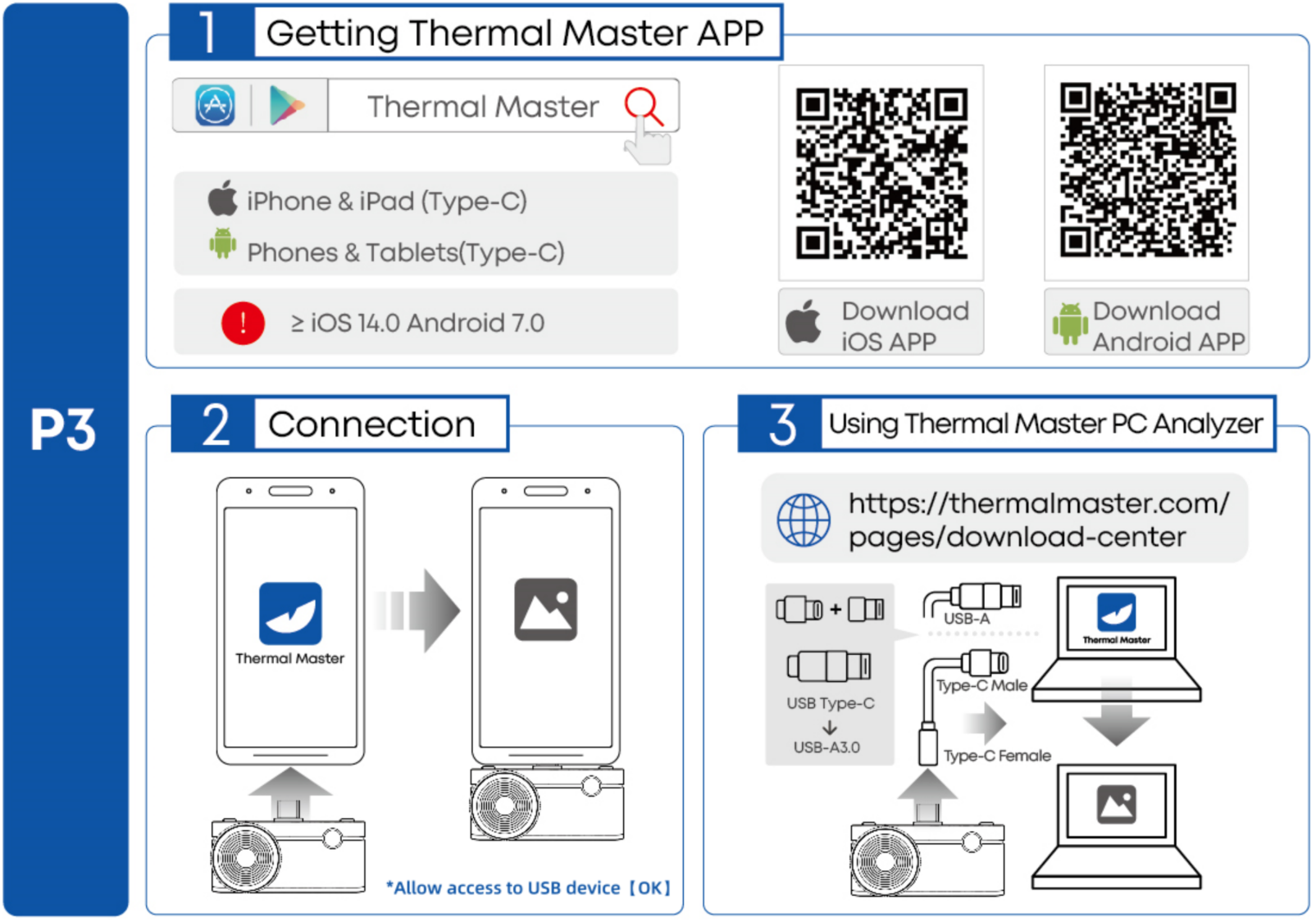

App Name: Temp Master
Latest app version download.
Isotherm/ 12 Palettes
Adjust the best temp range and palettes for highlighting.
Post-image offline analysis Professional temp.measurement report
✔2D Edit
✔3D Edit
✔Report
✔PC
Whats More?
✔Auto Shuttr
✔Dual-light Fusion for Intuitive Detection (PIP)
Applications
P3 features a macro and manual focus lens for precise detection, capable of locating leakage below 1mA in circuit boards. It also functions as a thermal imager for HVAC, circuit, pipeline, and floor heating inspections, supporting diverse detection tasks.
Solar Panel Inspection

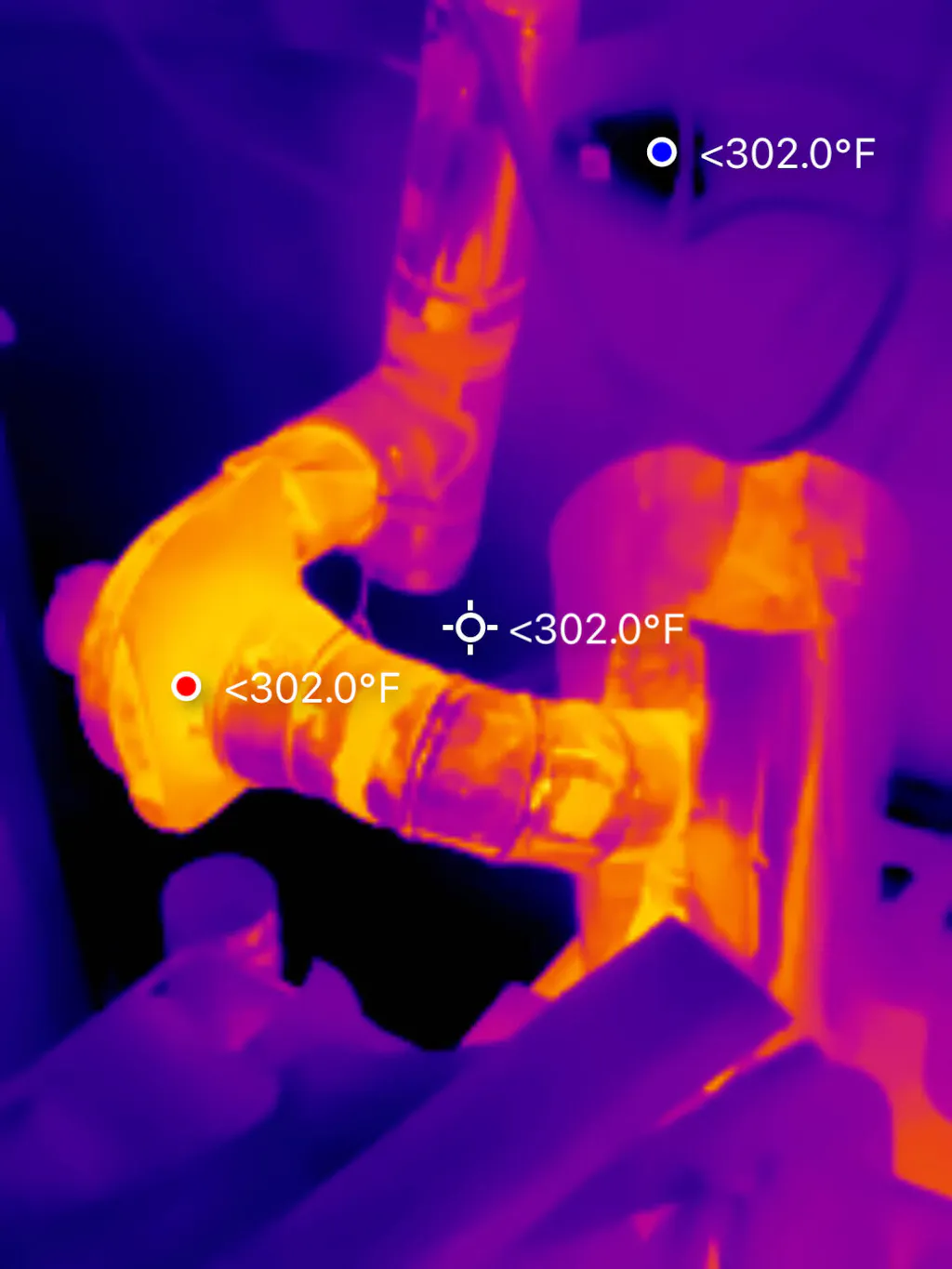

Pipe Inspection

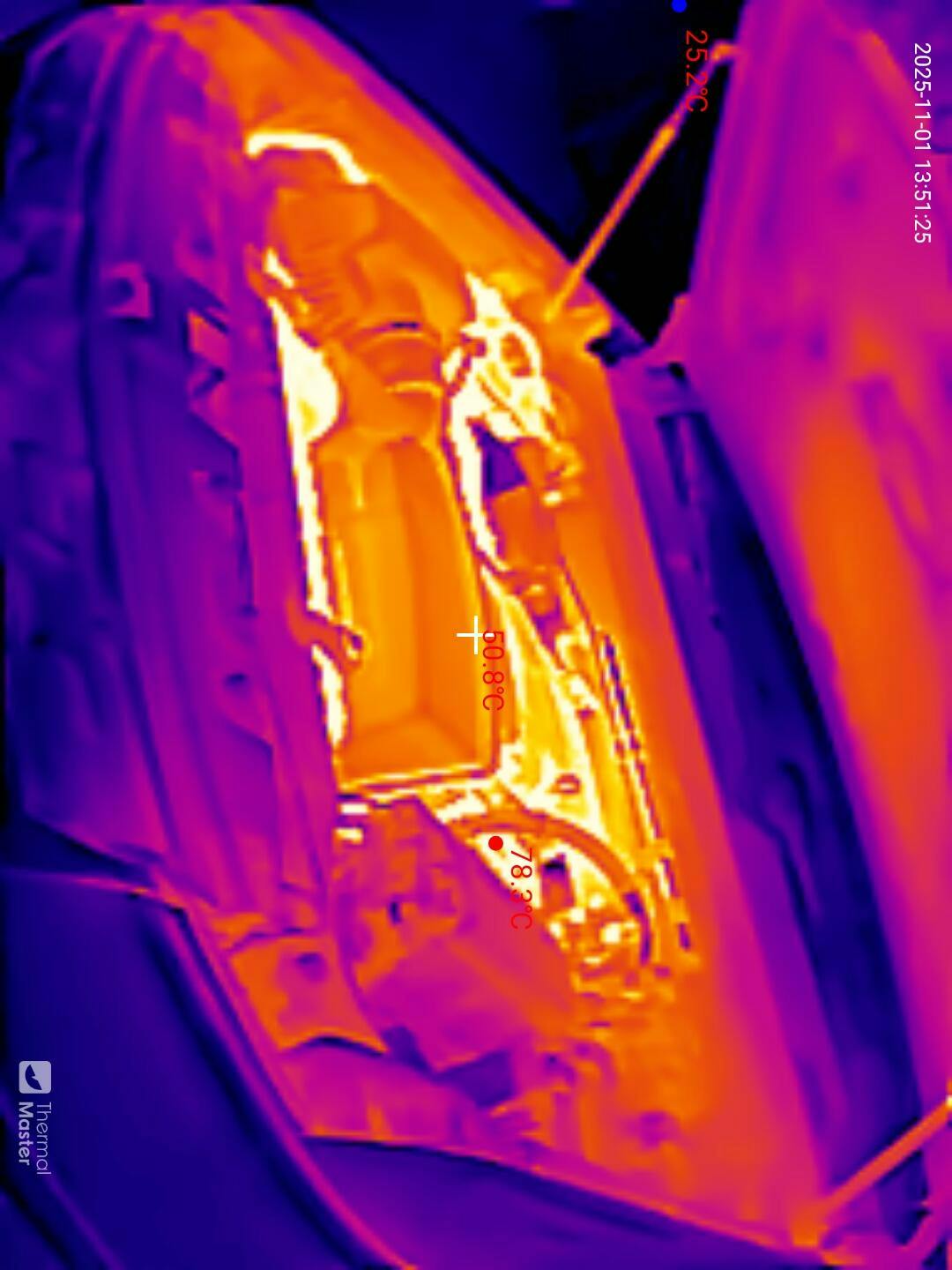

Car Inspection
HVAC Inspetion
PCB Inspection
Product specification
P3
Vox 256x192 @12μm
512x384
-4℉~1122℉（-20℃~600℃）
±2℃ or ±2% of the reading
＜35mk@25℃
4.3mm
Macro & Manual Focus Lens
Detect 1mA PCB leakage
Circuit board/Electrical/ Industrial/HVAC/ Home/ Automotive Inspections
Connect to iPhone®, iPad®, Android™ Phones and PCs
iPhone 8-16
Android 7.0 over system
15×
25Hz
Thermal Master High-Sensitivity Sensor
Ultra-Clear algorithm
Dynamic compensation algorithm for temperature drift with intelligent sensing of ambient temperature
A setting that highlights a specific range of temperatures within the thermal image, making them stand out with a distinct color.
0.32W
40°x30.2°
59*27*17.2 mm
Aerospace Alloy Body
Plug extended by 2mm, compatible with most phone cases
P3 thermal camera, portable case, typeC to Lightning adapter, 50cm extension cabel, user manual
Super kamera... szczegóły są pięknie widoczne na ekranie.W tej cenie najlepszy produkt. Polecam
Wszystkim polecam zakupioną kamerę ponieważ jestem z niej bardzo zadowolony. Spisuje się świetnie zarówno w naprawie elektroniki jak i budownictwie.
I cancelled the order before shipment. Got confirmation that you know I want to cancel, yet you still sent the order. Now I'm not there to receive the item because it took you too much time to fulfill. You need to refund this order
Great tool for PCB fault finding.
Incomparably better than the Flir Lepton 3.5 I had.
This is a very high quality thermal imager. It will take a little playing around with the settings to get the highest quality of photos, but don't let that discourage you, this under $300 thermal camera beats plenty of thermal cameras over the $1000 price mark. Thermal Master is top tier in this field, and they make great tools besides this. I will be picking up more products off of them for my business. Thanks, Thermal Master.
