Description
Description

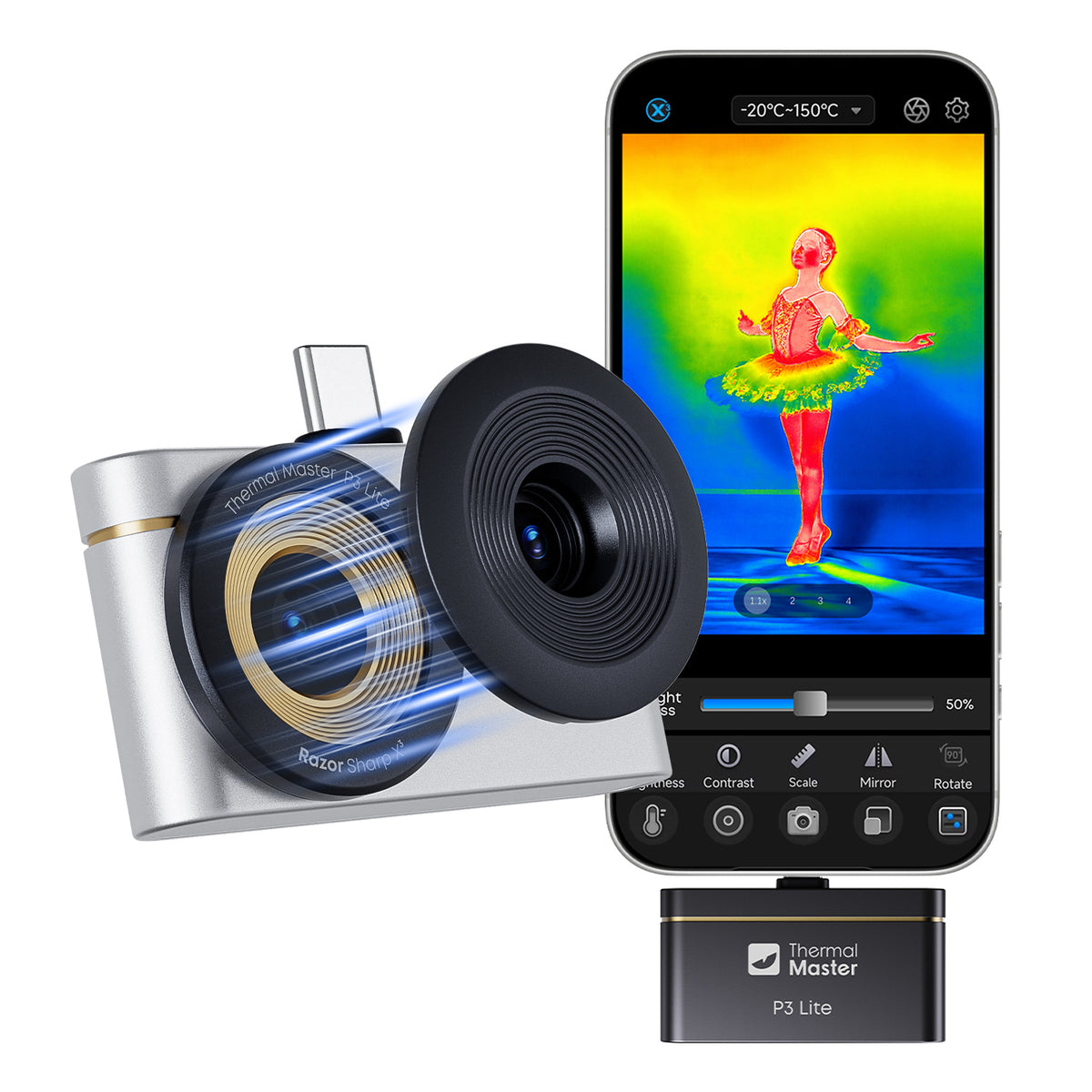

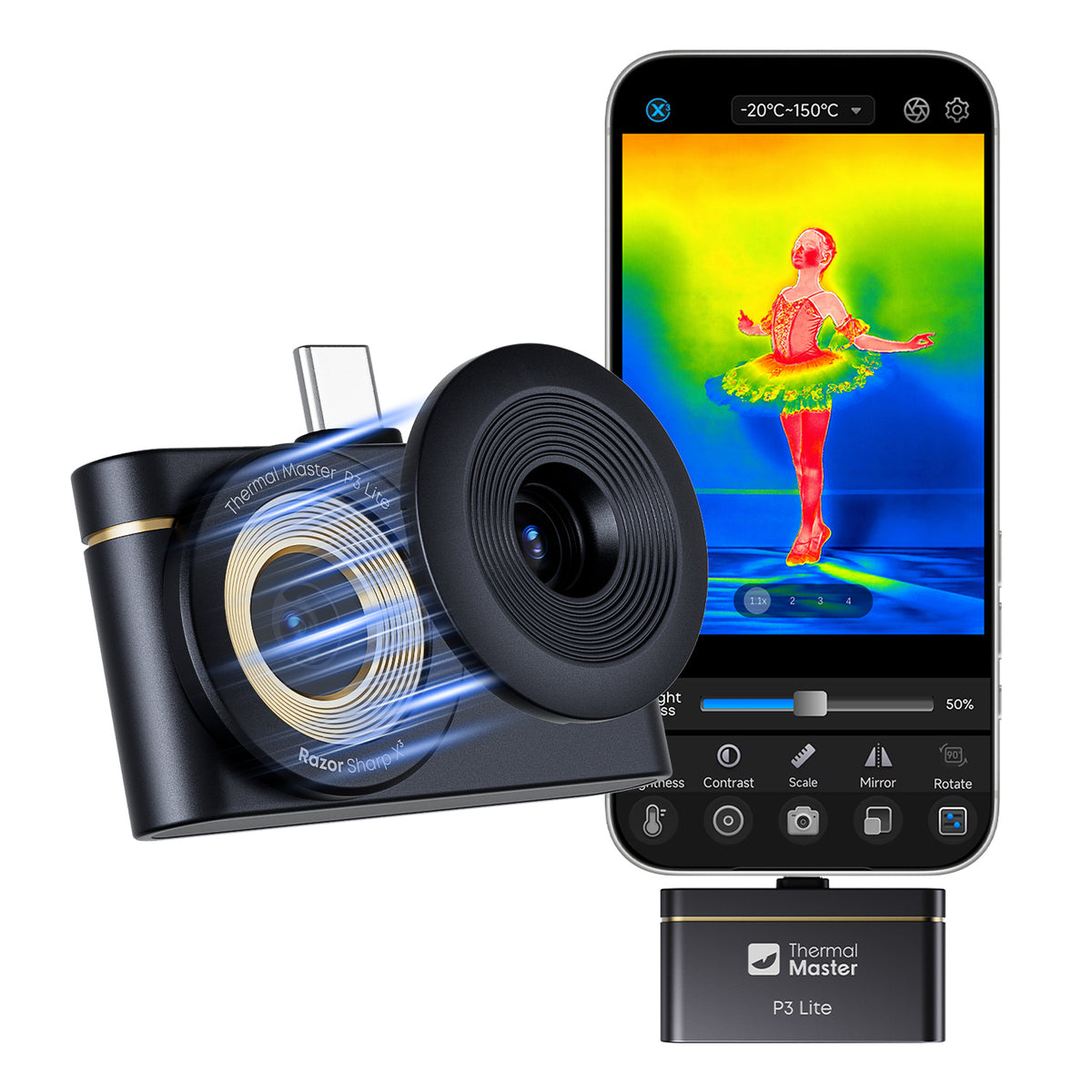

P3 Lite is a compact thermal camera built for clear, accurate diagnostics across electrical, HVAC, home, and automotive inspections.
- 512 × 384 Razor-Sharp X³ IR resolution powered by a 256 × 192 VOx detector.
- Wide -20°C to 600°C (-4°F to 1112°F) measurement range with ±2°C / ±2% accuracy.
- ≤40mK NETD reveals subtle temperature differences.
- 15× digital zoom for closer inspection of fine details.
- TruePix Precision Temp Measurement with AI high/low temperature alarms.
- 15 professional temperature modes with automatic hot, cold, and center point tracking.
- Compatible with iPhone, iPad, Android, and PC.
- 0.3W ultra-low power consumption for extended mobile use.
- Fast, Free Shipping
- 30-Day Money-Back Guarantee
- Hassle-Free Warranty
- Lifetime Customer Support
Spec
Spec
Detector: VOx 256×192 @12μm
X³ IR™ Resolution: 512×384
Measurement Range: -4°F~1112°F (-20°C~600°C)
Temp Accuracy: ±2°C or ±2% of the reading
NETD: ≤40mK
Focal Length: 3.2mm

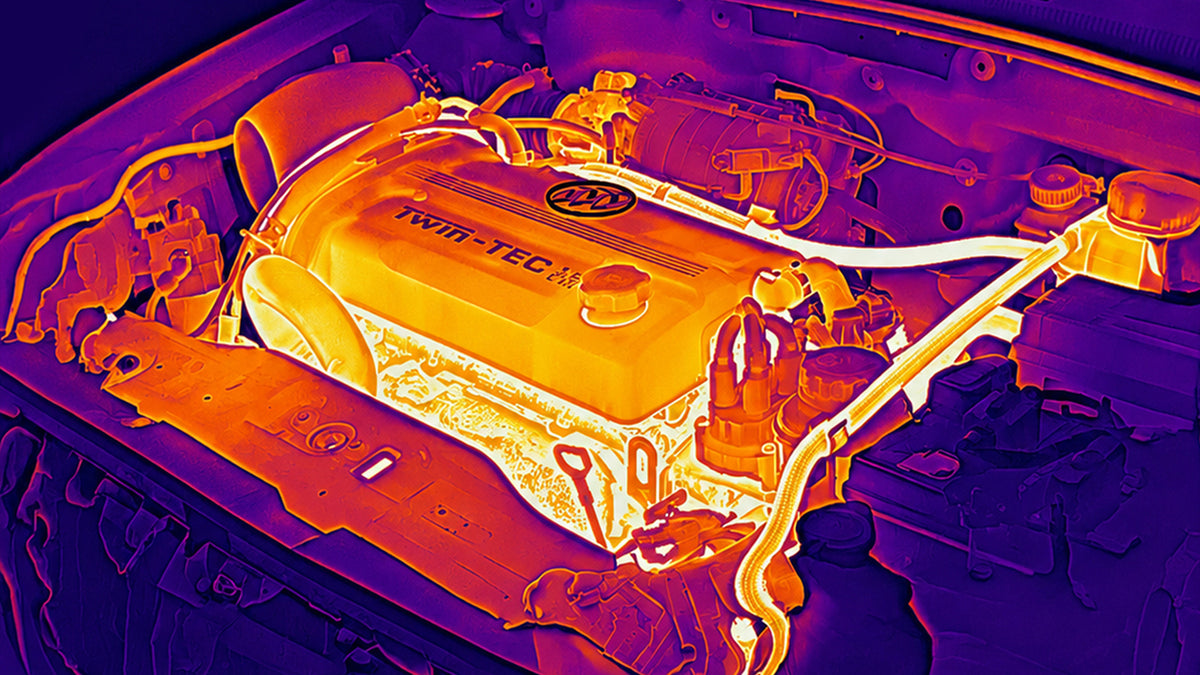

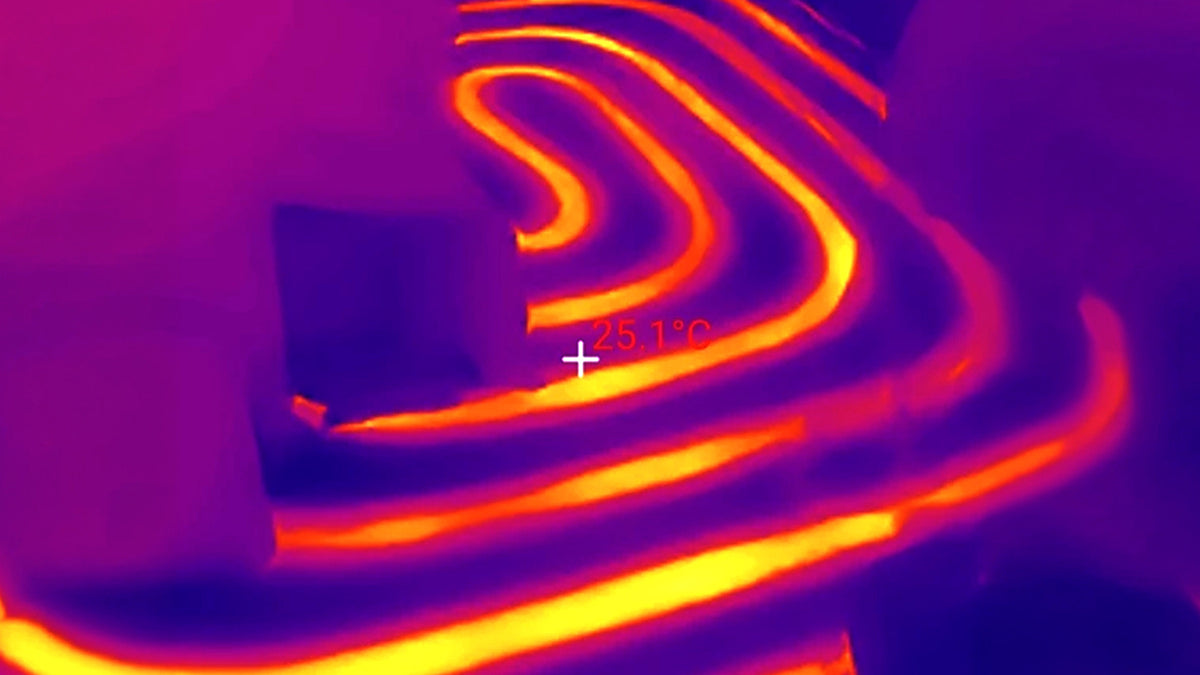

Application Scenarios: Electrical / HVAC / Pipeline / Home / Automotive Inspections

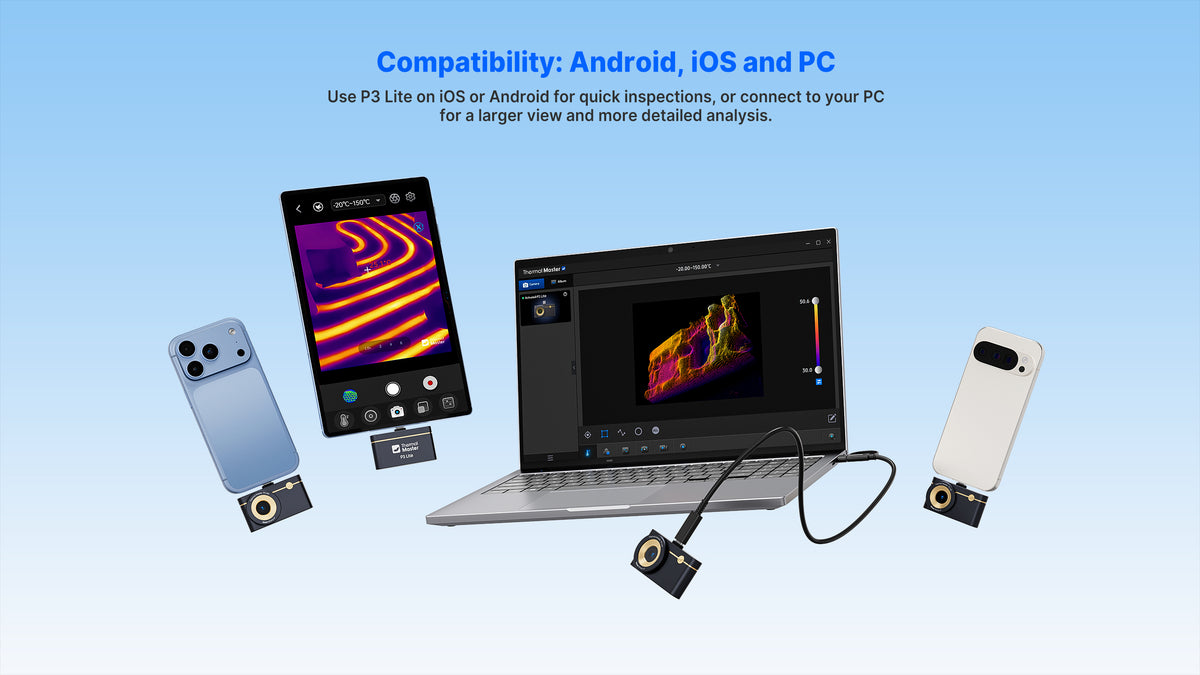

Compatibility: Connect to PC, iPhone®, iPad® (Type-C Port) and Android™ Phones
Digital Zoom: 15×
Frame Rate: 25Hz
Infrared Core: Thermal Master® High-Definition Sensor
Razor-Sharp X³: Ultra-Clear Algorithm
Power Consumption: 0.3W
FOV: 56°(H) × 42.2°(V)
Size (L×W×H): 59 × 27 × 17.2mm
Weight: 32.6g
Operating Temperature: -4°F~131°F (-20°C~55°C)
Storage Temperature: -4°F~140°F (-20°C~60°C)
Support System: iPhone (Type-C Port), Android 6.0 and above
Warranty: 2 Years (Standard)

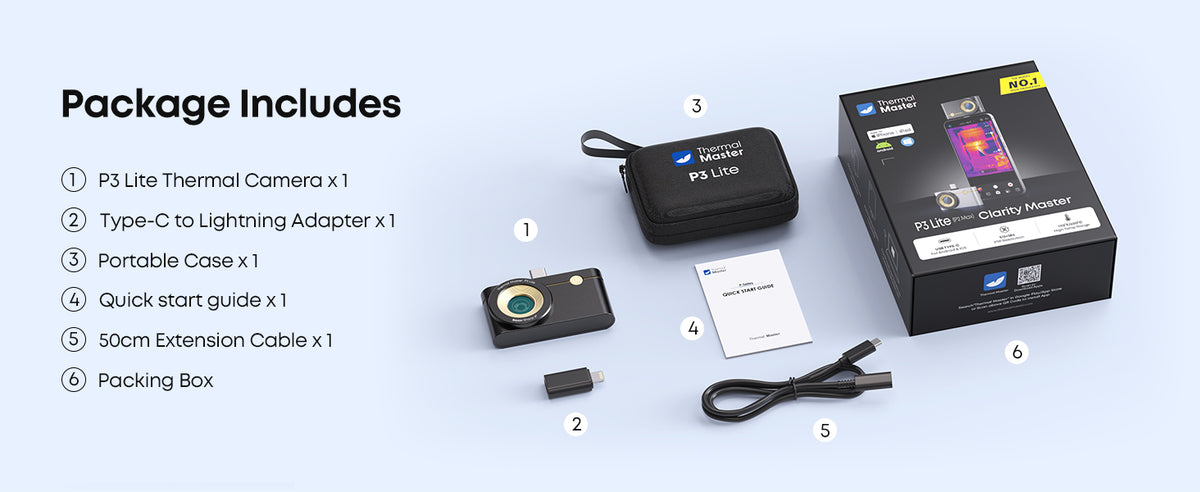

Package Content: P3 Lite Thermal Camera, USB-C Extension Cable, USB-C to Lightning Adapter, Storage Bag, User Manual
Three Simple Steps to Be the First
Reserve now, get early access, and be ready for launch.
Reserve
Lock in your FREE Macro Lens
Early Bird
Complete your P3 Lite purchase
Official Launch
Shipping begins
Overview
Quickly Detect Subtle Faults
All in One—— Macro, Home, and Work.
4X Pixels, Beyond Clear
Powered by Razor-Sharp X³ Super-Resolution, it upscales native 256x192 thermal resolution to 512x384, with prominently

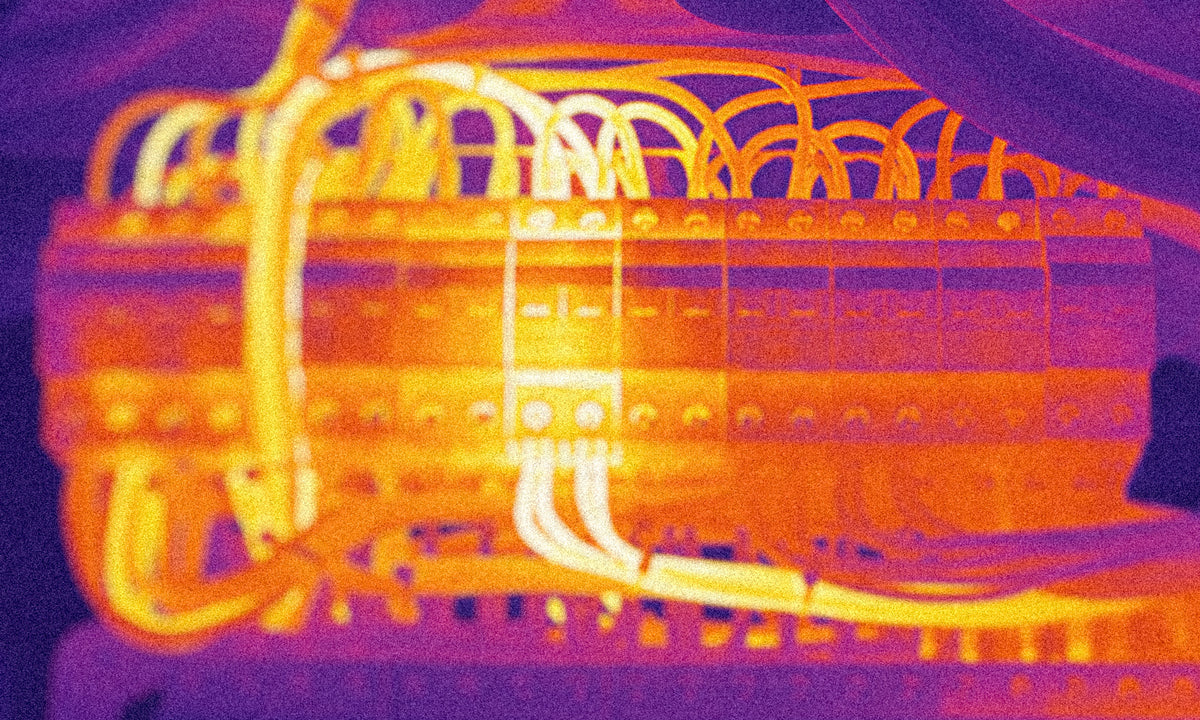

X³ OFF

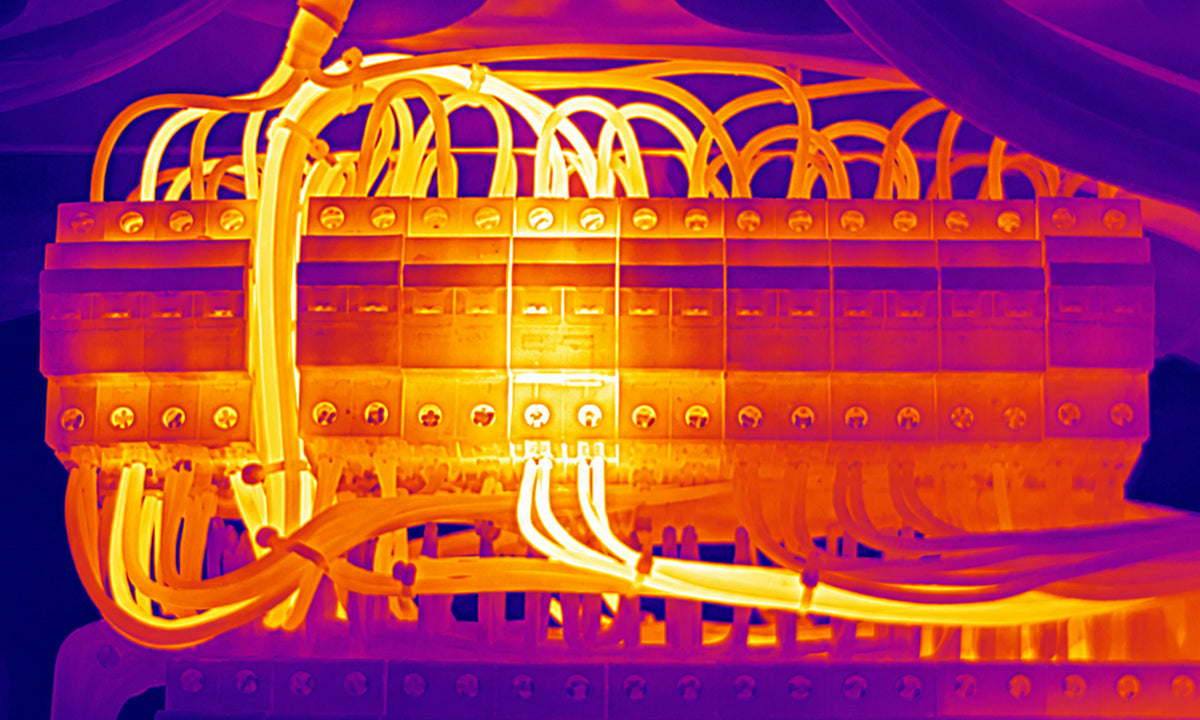

X³ ON

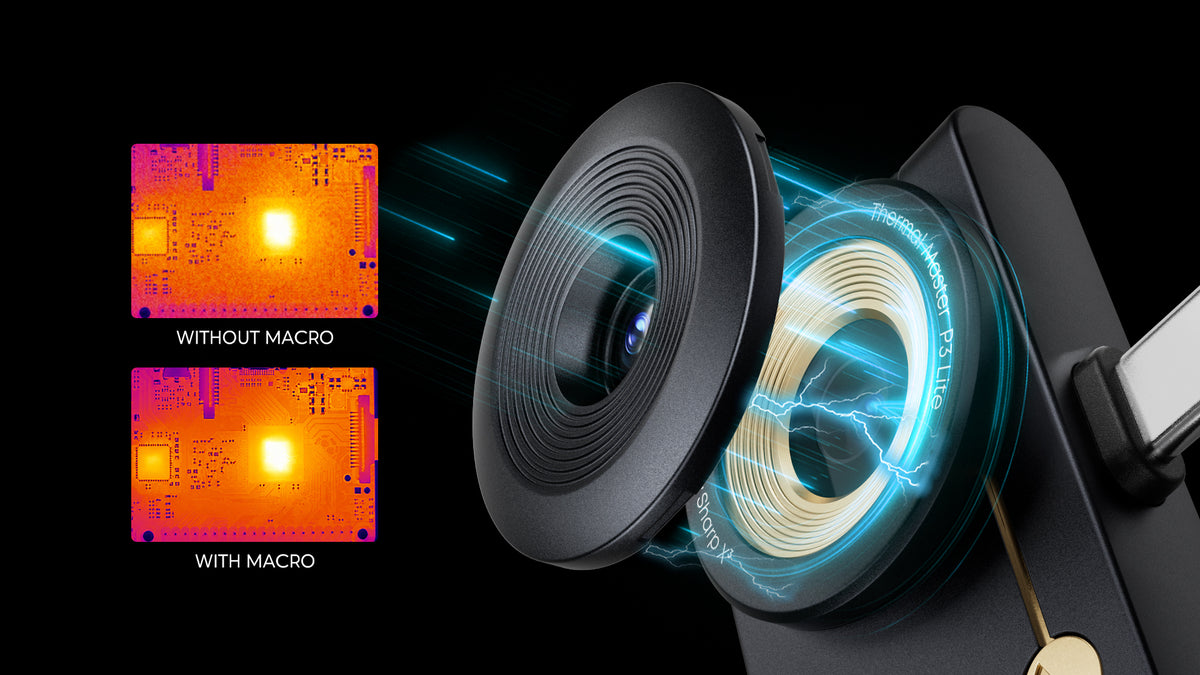

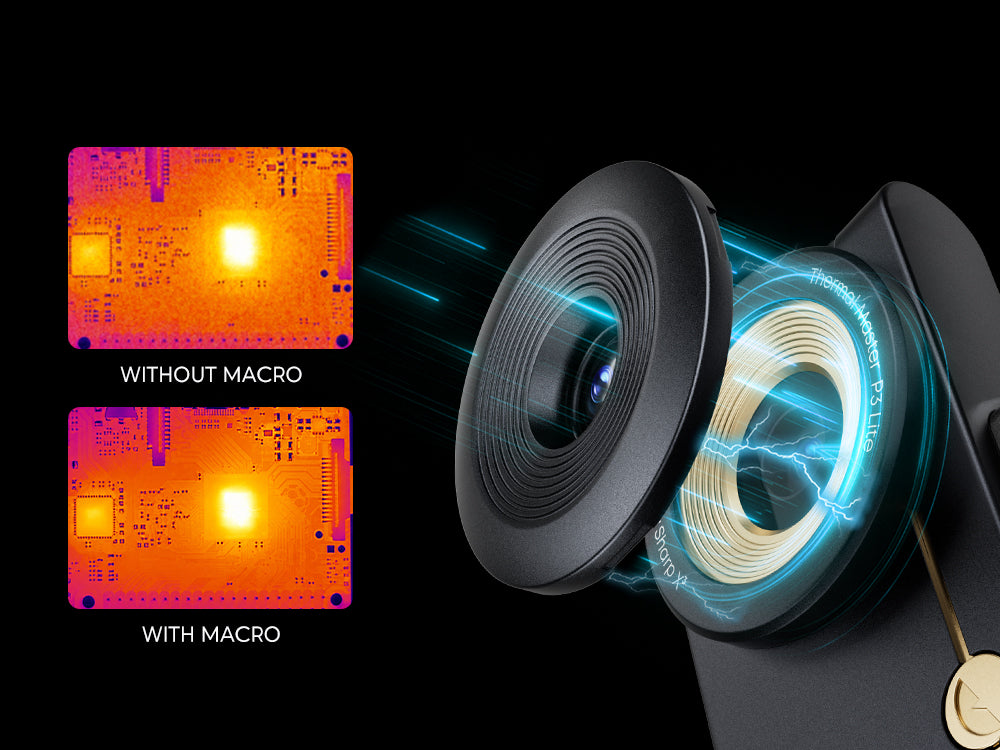

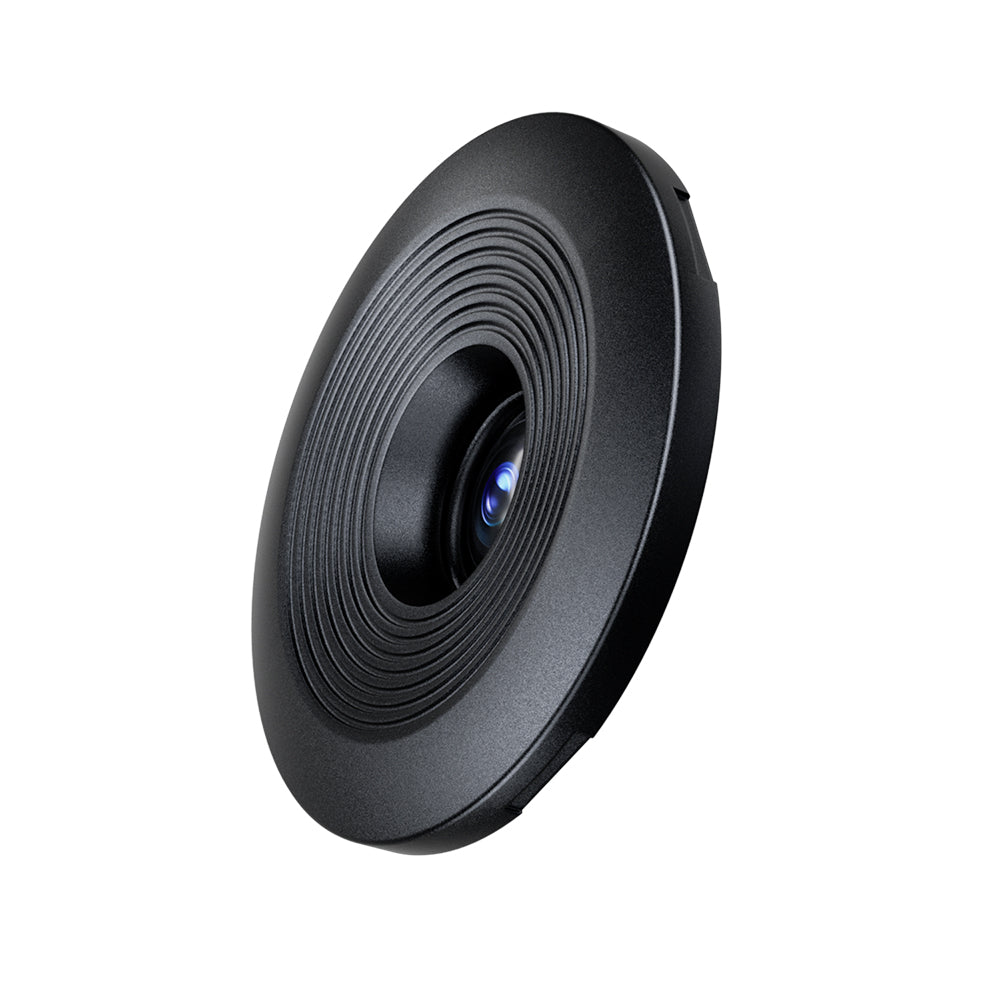

Detachable Macro Lens
Get a closer thermal view of circuit boards, components, and other small electronic parts.

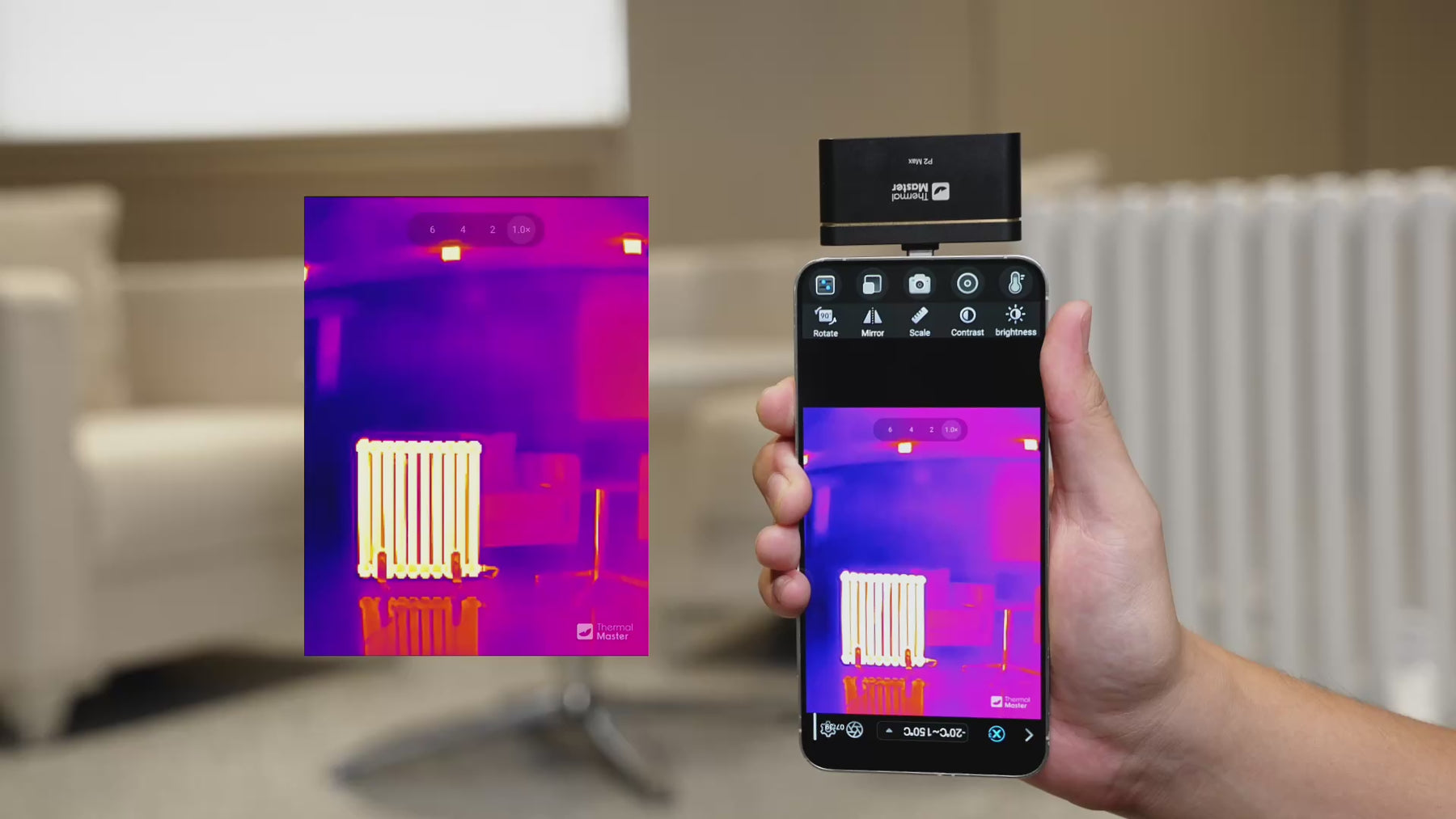

All-in-One Professional
Thermal Analysis App

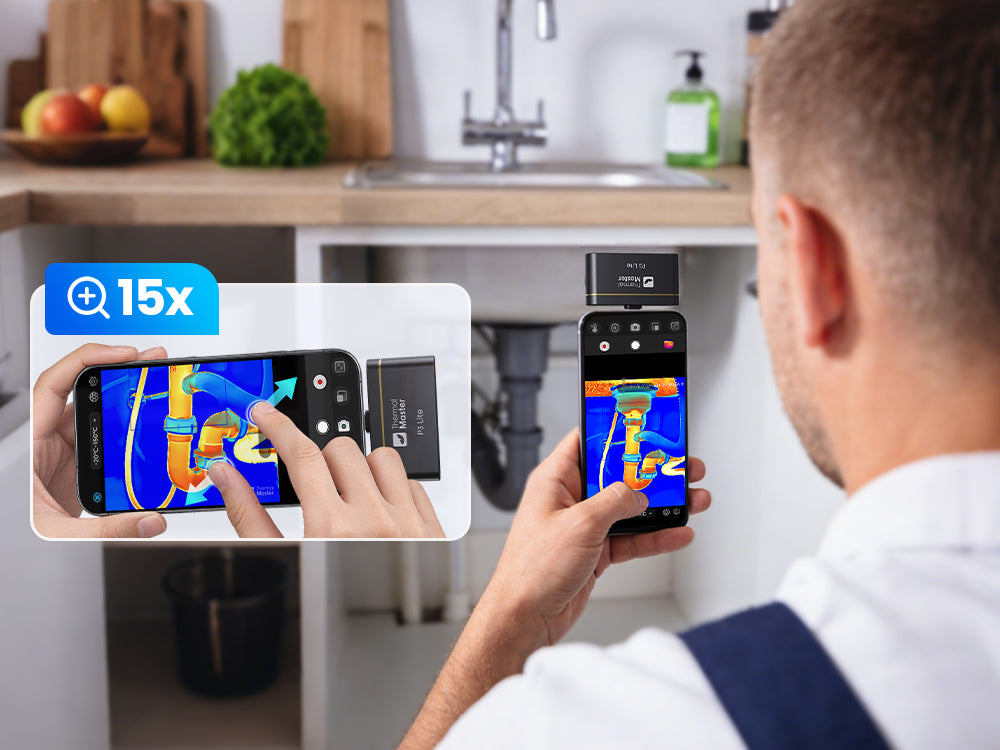

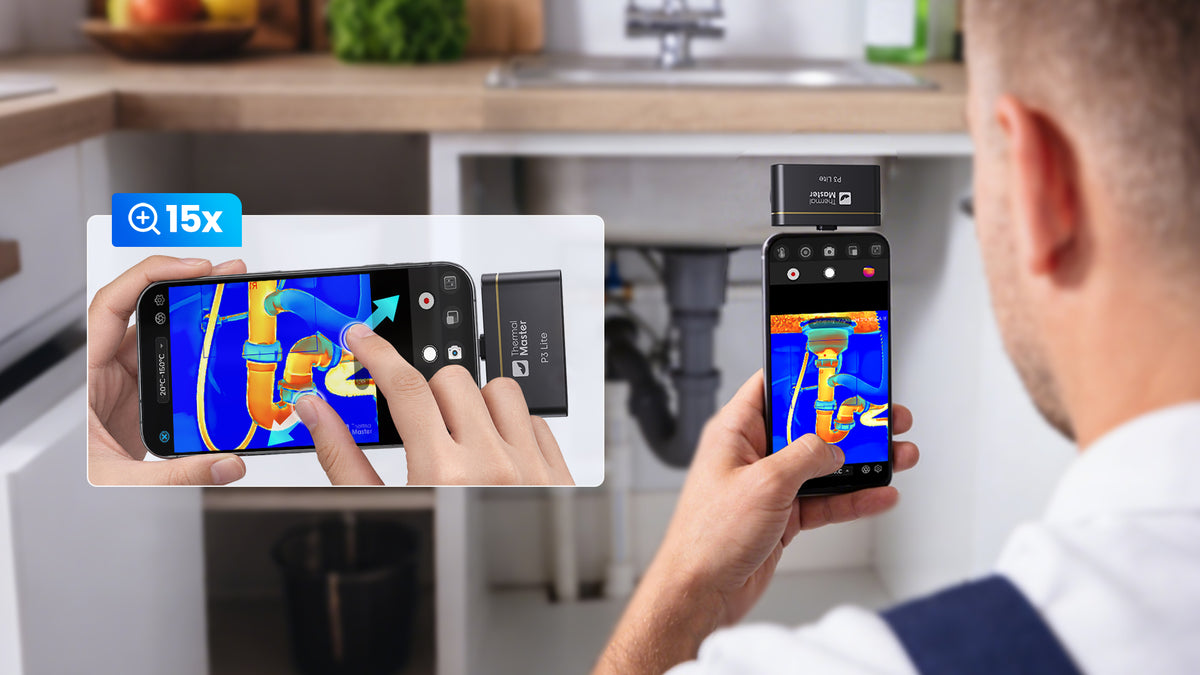

1×–15× digital zoom for finer thermal details and more precise inspection.
RazorSharp X³ imaging and TruePix precision for sharper details and accurate detection.

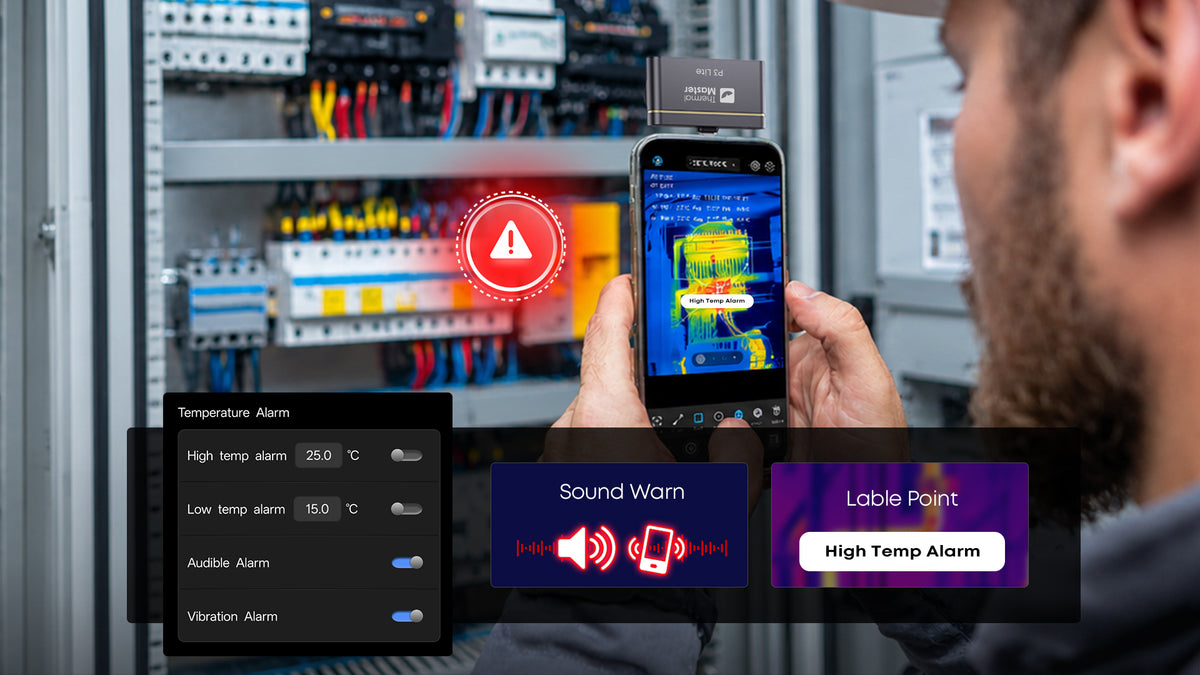

Set high and low temperature limits with sound,vibration, and on-screen alerts for instant hazard detection.

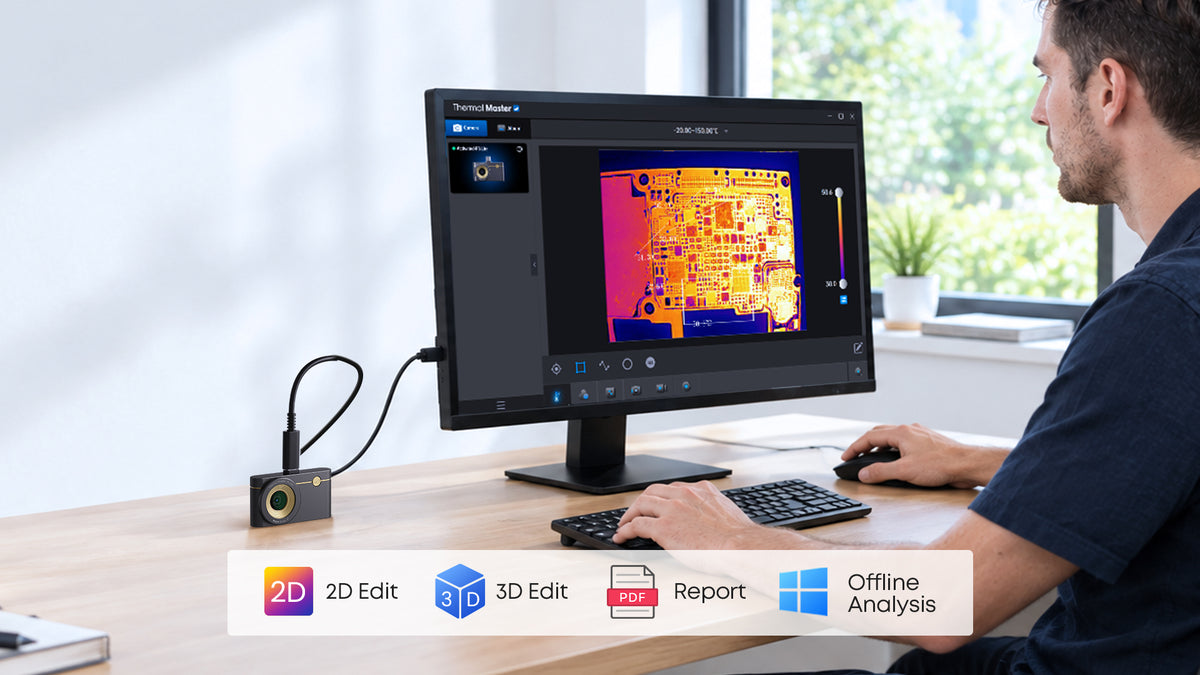

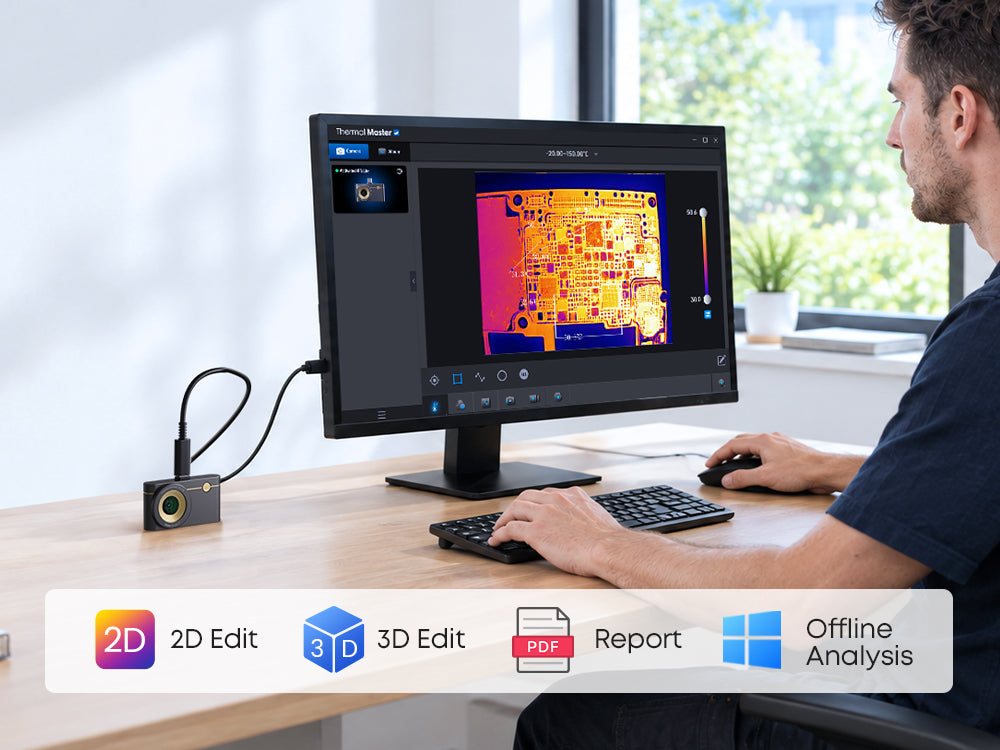

Offline Analysis. Full Editing. Expart Reports.

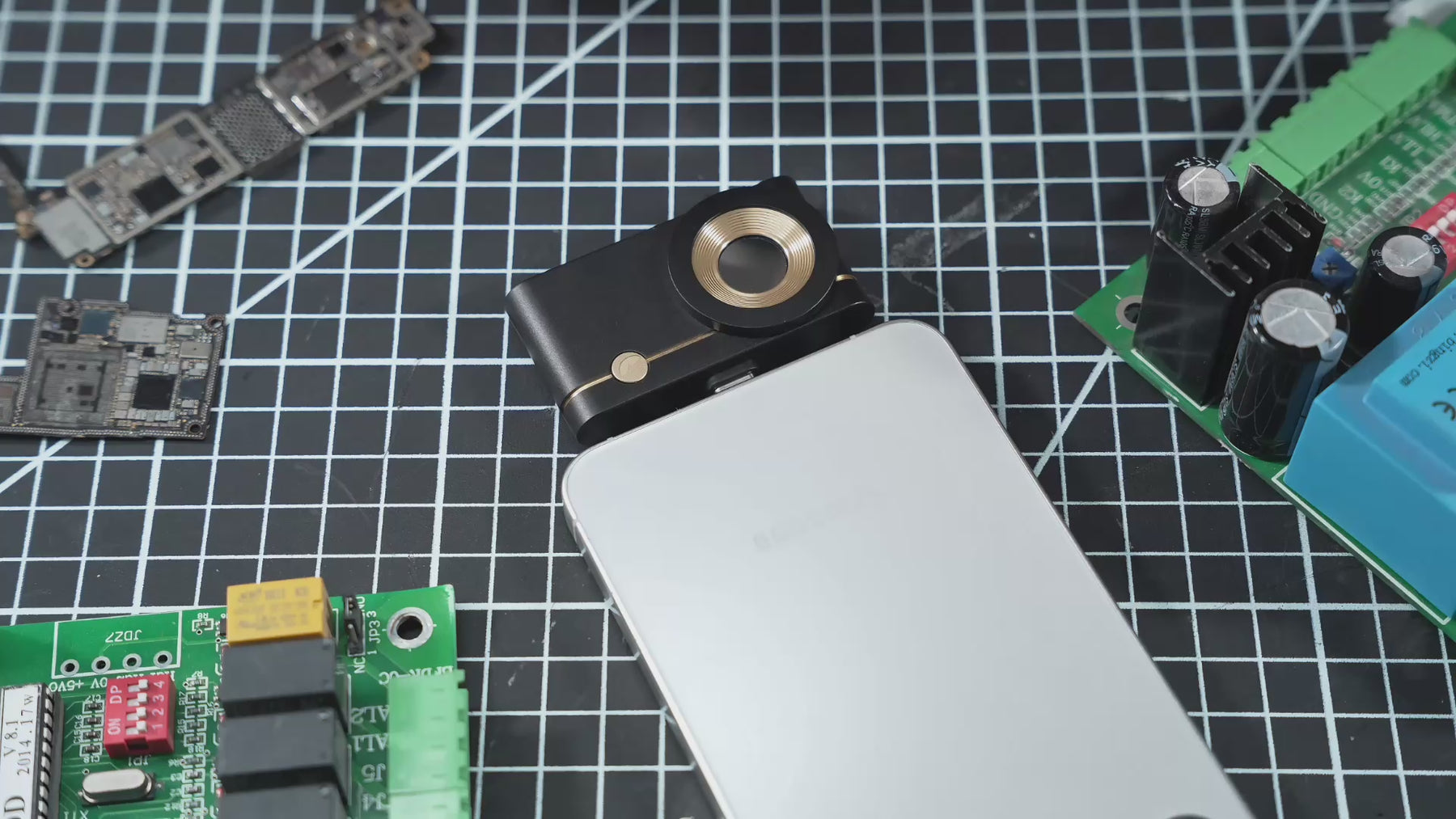

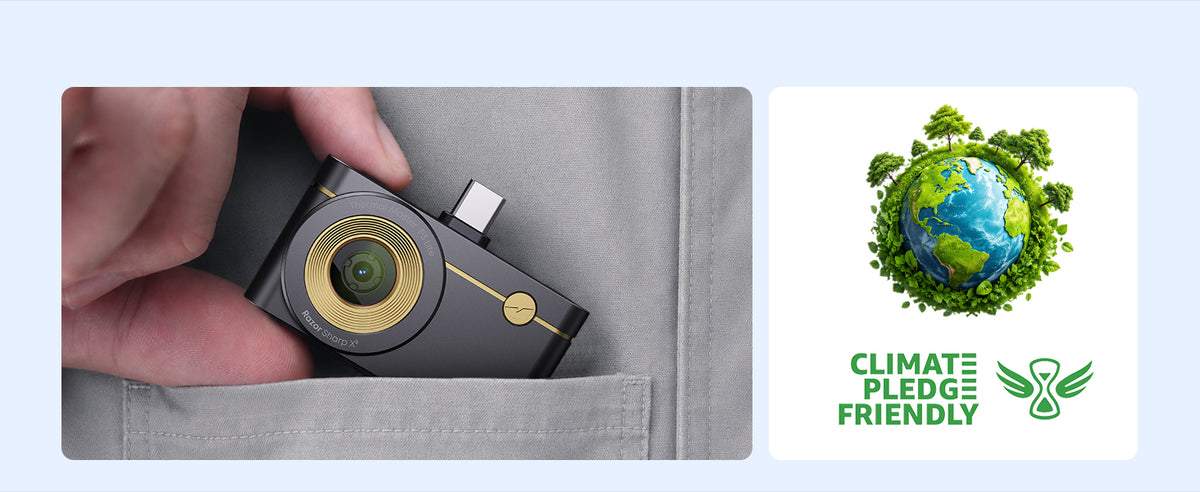

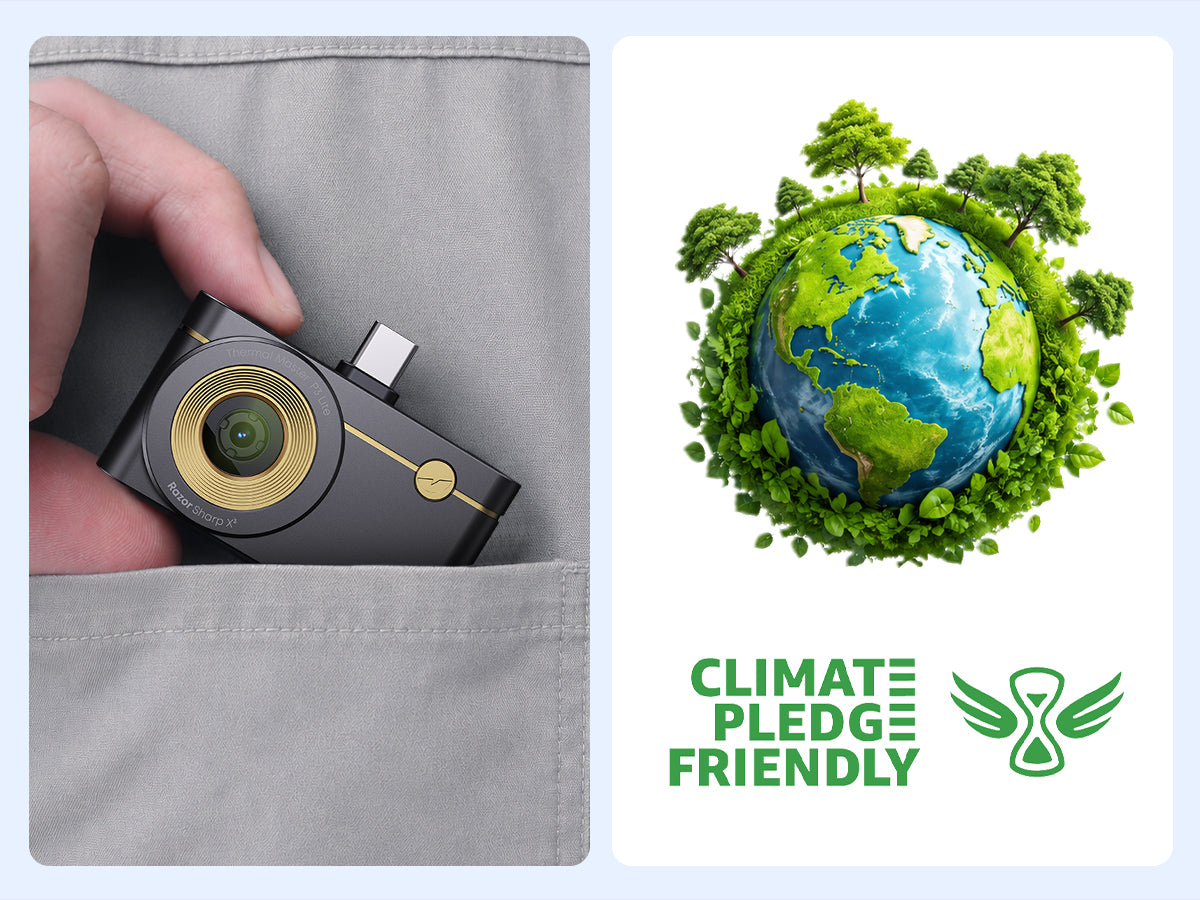

Pocket-Sized. Ready Anywhere
Powerful thermal imaging in a compact, lightweight design that goes wherever you go.

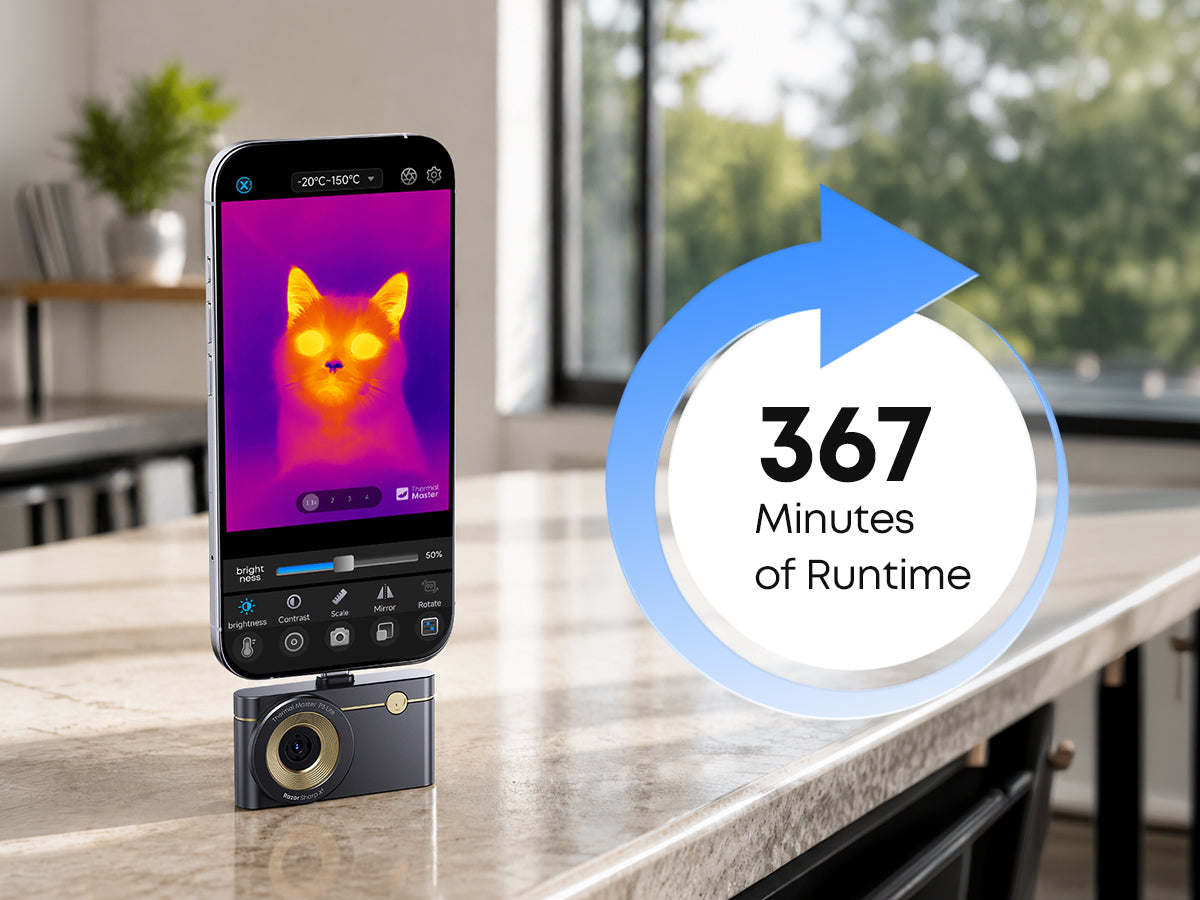

Low Consumption
Samsung Galaxy S23+4700mAh batarrylife 367 minutes

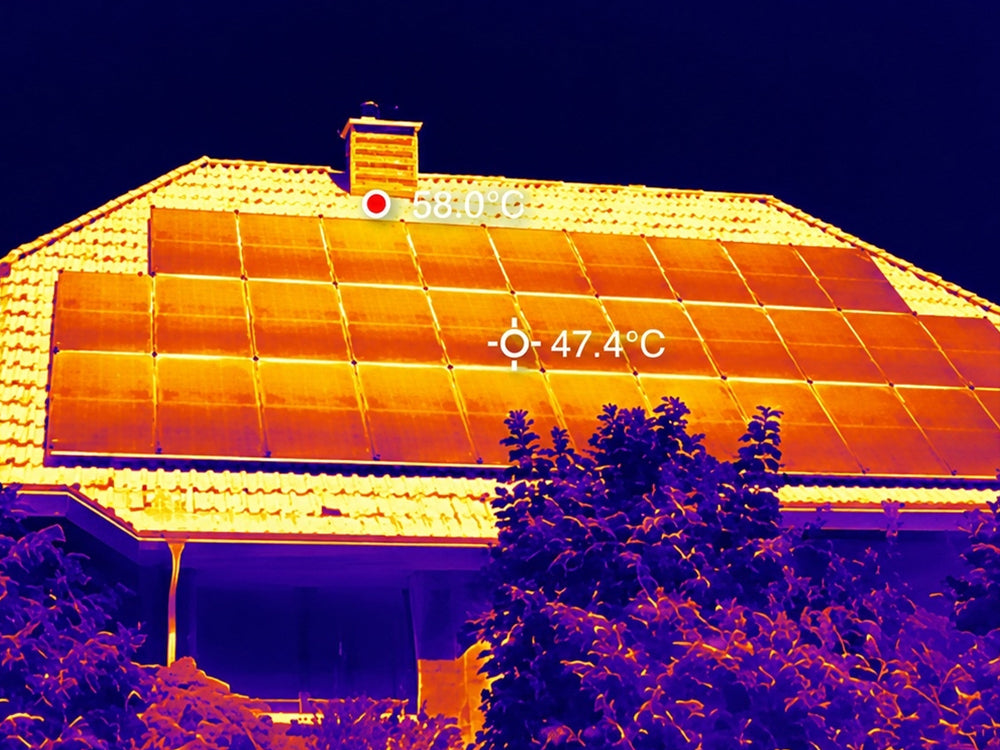

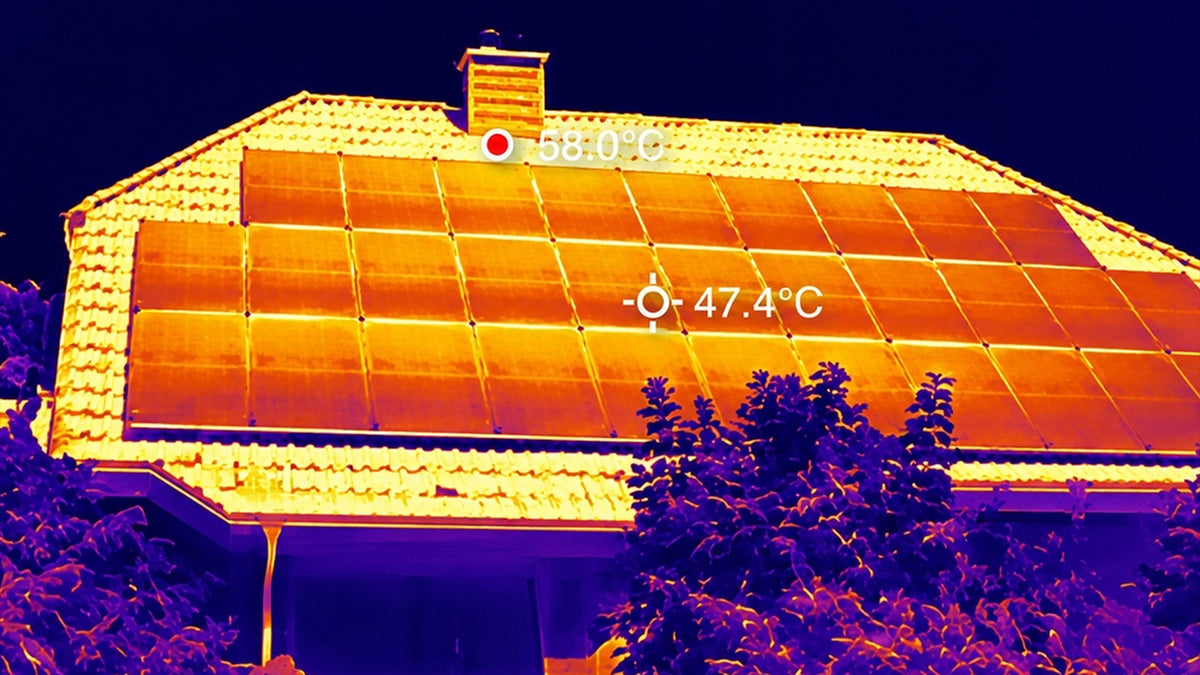

Applications

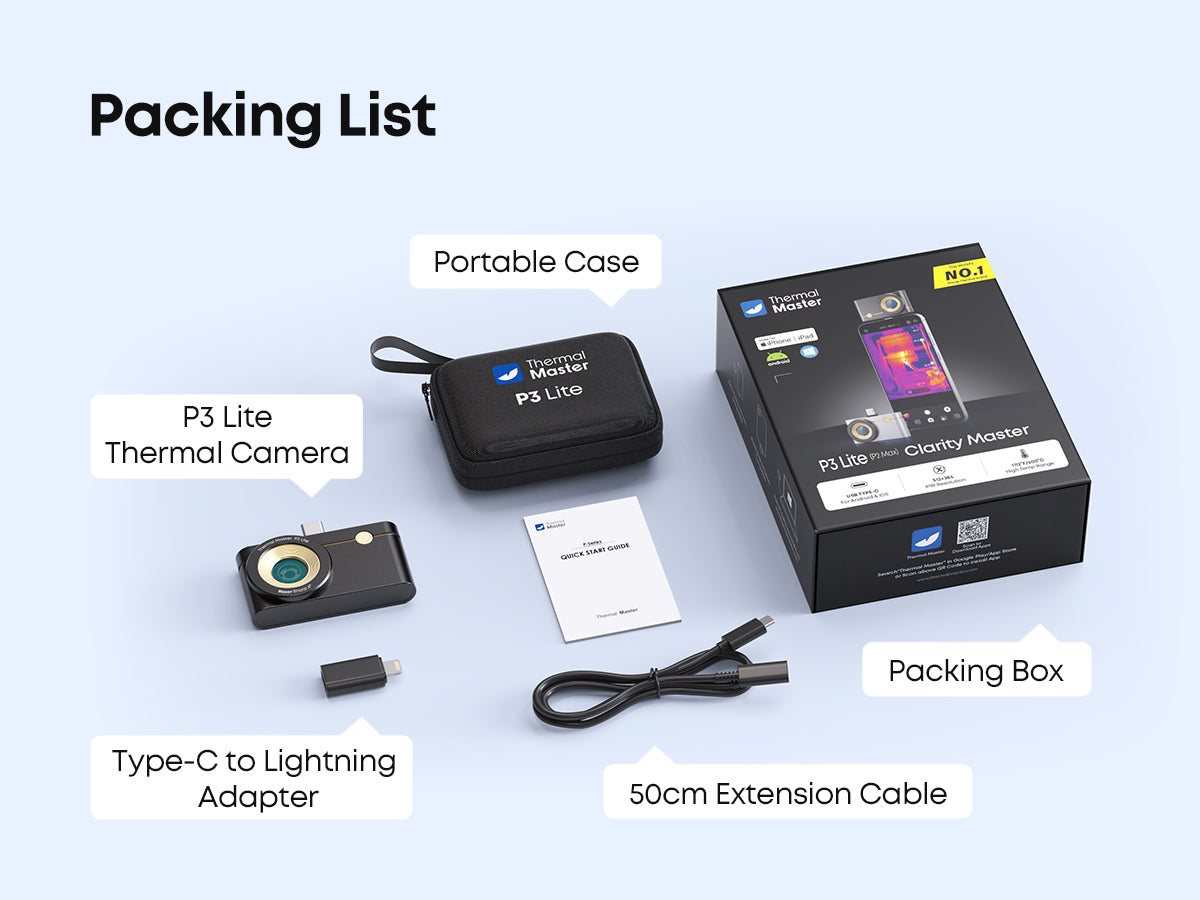

Packing list
Product Comparison
256×192
256*192
256*192
512×384
512*384
512*384
Available Separately ✅
✅
Magnetic Macro Lens
✅
Macro Adjustable Lens
All-Range Diagnostics
Home Inspection
Electrical Inspection(PCBs)
Dual System (iOS & Android)
iOS & Android
Separate Products
Dual System (iOS & Android)
P3 Lite Thermal Camera for iPhone & Android | Beyond Clear
256×192
512×384
Available Separately ✅
All-Range Diagnostics
Dual System (iOS & Android)
Thermal Master P2 pro, World's Smallest Thermal Camera (Canada Only)
256*192
512*384
✅
Magnetic Macro Lens
Home Inspection
iOS & Android
Separate Products
256*192
512*384
✅
Macro Adjustable Lens
Electrical Inspection(PCBs)
Dual System (iOS & Android)
Product specification
Ultra Clear Algorithm
512x384
Vox 256×192 @12μm
-4℉ to 1112℉(-20℃ to 600℃)
max.±2℃ or ±2% of the reading
≤40mK
Supported
Thermal Master® High-Definition Sensor
15×
Supported, High/Low AI Temp Alarm
15types, 3 points/ 3 lines/ 3 rects/ 3 circles, Automatic center/high/low temperature point tracking
Supported, support for comprehensive, free iamge analysis and reporting
0.3W
300~480 minutes (Eg: Samsung Galaxy S23+ 4700mAh batarry life 367 minutes)
Support for highlighting specific temperature ranges
12 Palettes (white hot/ black hot/ iron red/ red hot + 8 other palettes)
Emissivity, Distance, Environmental temperature
Connect to PC, iPhone®, iPad®(Type-C Port) and Android Phones
Electrical/ HVAC/ Pipeline/ Home/ Automotive Inspections
Supports photo and video recording & sharing
56°(H)x42.2°(V)
3.2mm
25Hz
32.6g
59mm×27mm×17.2mm
-4℉ to 131℉(-20℃ to 55℃)
-4℉ to 140℉(-20℃ to 60℃)
Thermal Master
iPhone (Type-C Port)
Android 6.0 and above
2 years (standard)
Supports 12 languages
(English by default)
P3 Lite thermal camera, USB-C Extension Cable, USB-C to Lightning Adapter, Storage Bag, User Manual
